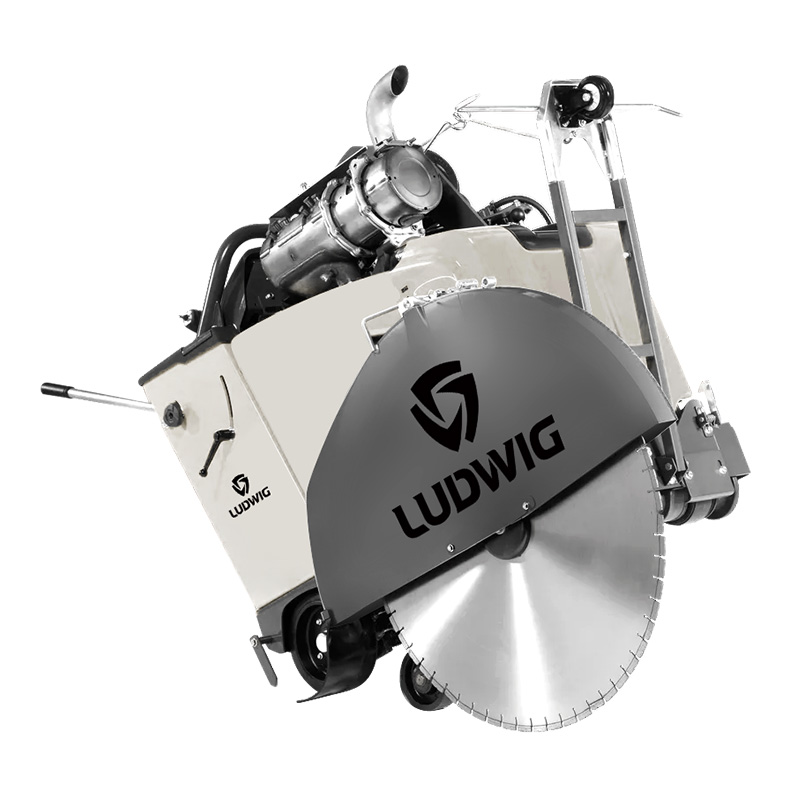

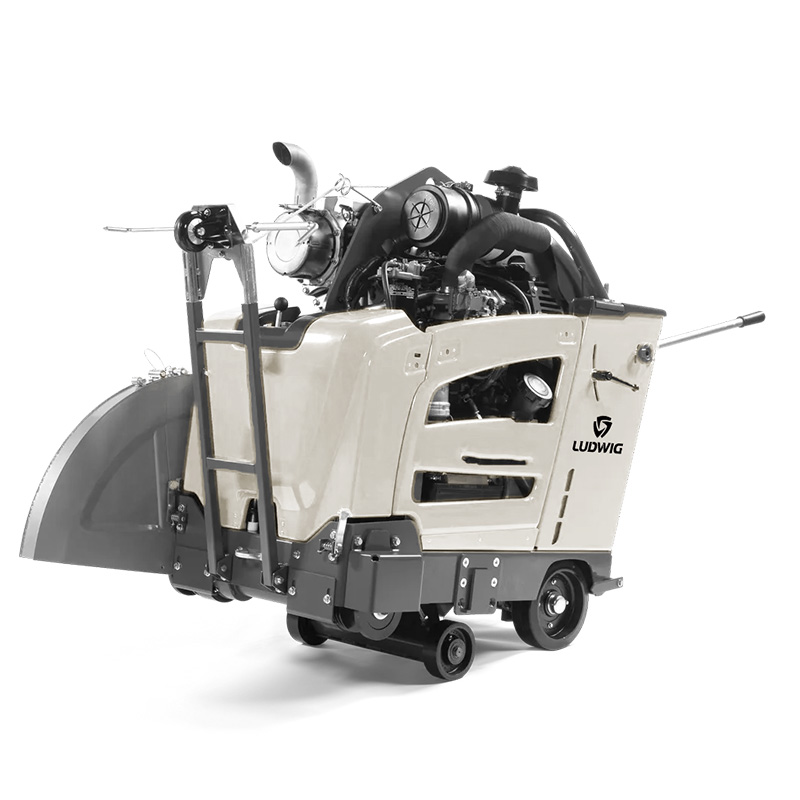

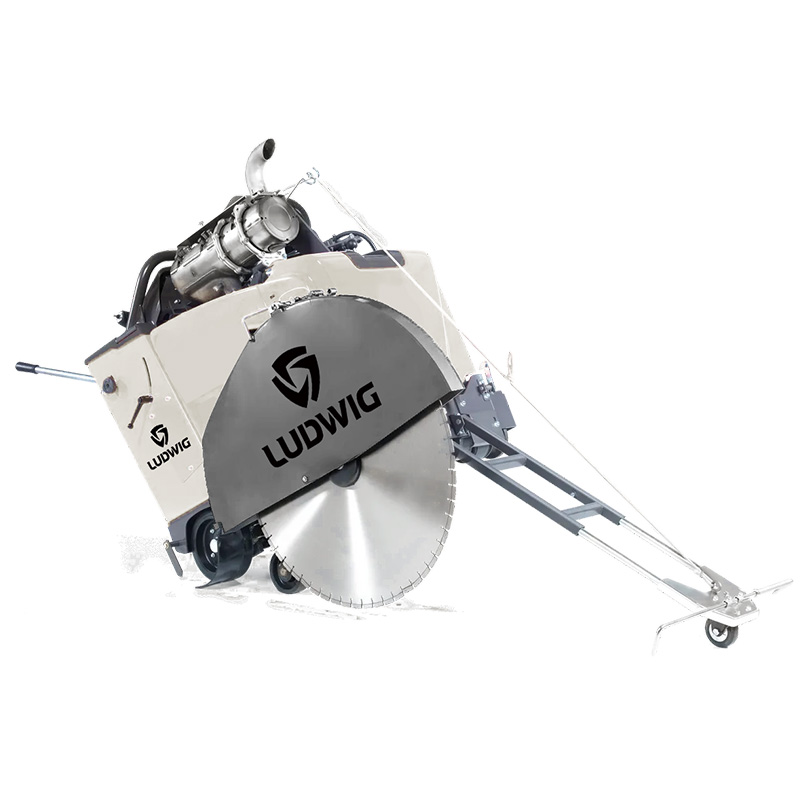

GFS1300

GFS1300

FEATURES:

1.Ergonomic Design: Intuitive control panel with adjustable handles for comfortable operation.

2.Precision Cutting: Easy tracking adjustment for straight cuts, equipped with an adjustable pointer.

3.High Efficiency: Powerful performance with three-speed options for versatile applications.

4.Easy Operation: Quick blade guard disassembly, automatic depth stop, and user-friendly controls.

5.Portability: Easy transport, optimized weight distribution, and self-propelled functionality.

6.Low Maintenance: Simple design with minimal maintenance requirements.

Model	GFS1300
ENGINE
Motor/engine manufacturer	YANMAR 4TNV88
Engine Powe r (As rated by the engine manufacturer)	47.6 hp
Engine cooling	Water
Fuel tank volume	24L
Number of strokes	4-stroke engine
Exhaust emissions (COz EU V)	835 g/kWh
Cylinders	4
Power source	Diesel
CUTTING EQUIPMENT
Cutting depth, max	500mm
Blade diameter, max	1200mm
Arbor diameter	60mm
Blade depth control	Hydraulic
Hydraulic system
Walking system	Auto-automatic& Hydraulic
Lifting system	Hydraulic
TRANSMISSION
Number of gearbox speeds	1
Transmission speed forward	0.62m/s
DIMENSIONS
Product size length	1750mm
Product size width	880mm
Product size height	1300mm
Weight	800kg
