- GLTD7600
- HOME > Light Tower > Trailer Light Tower

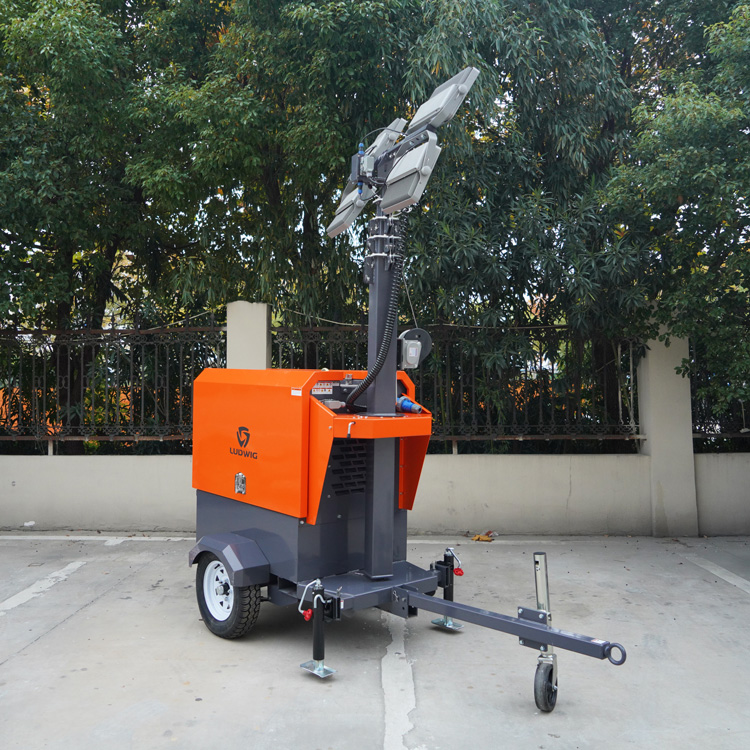

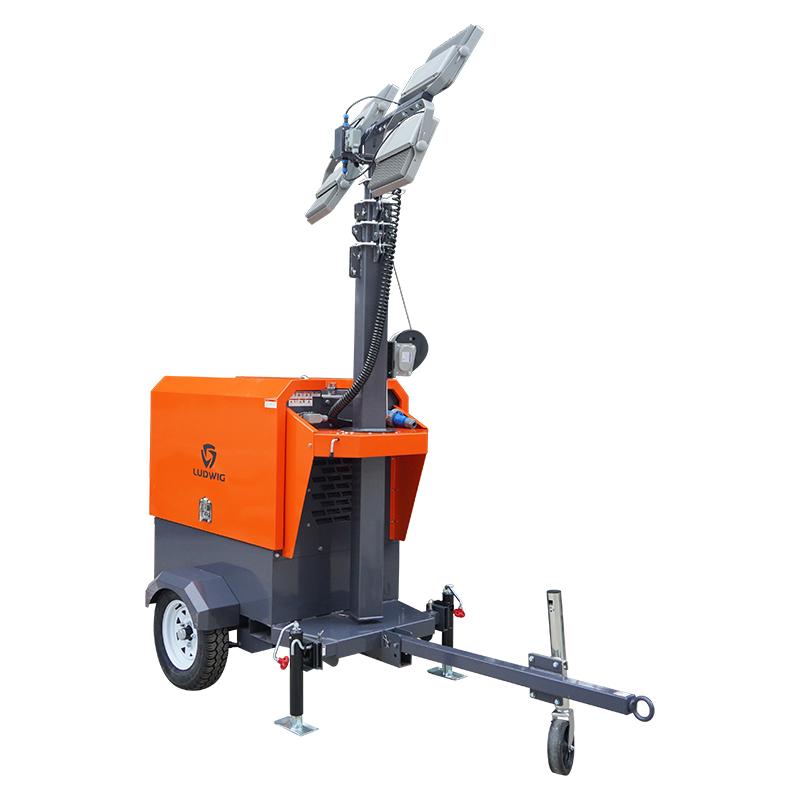

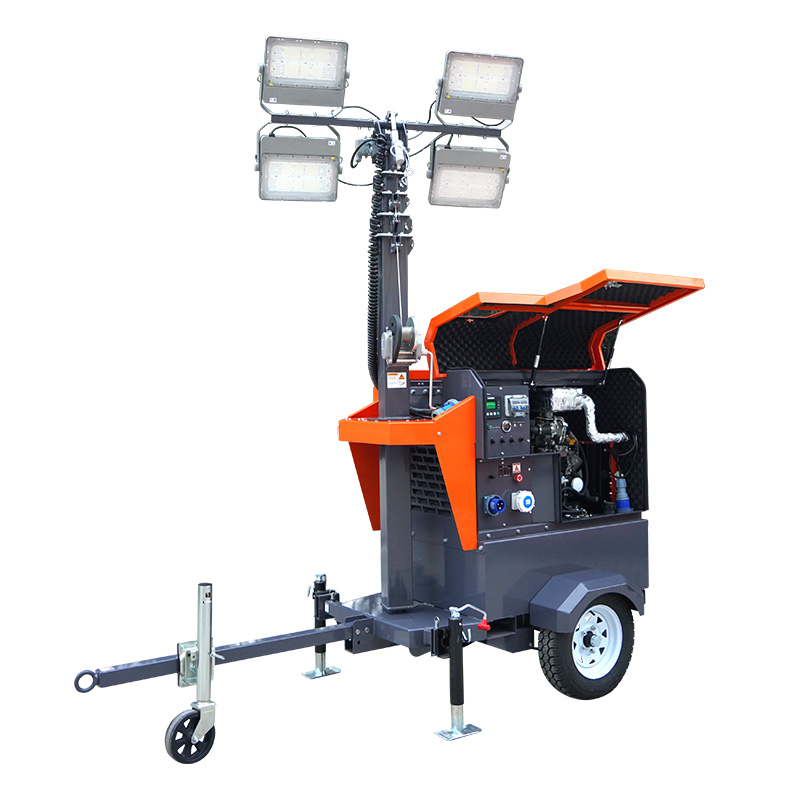

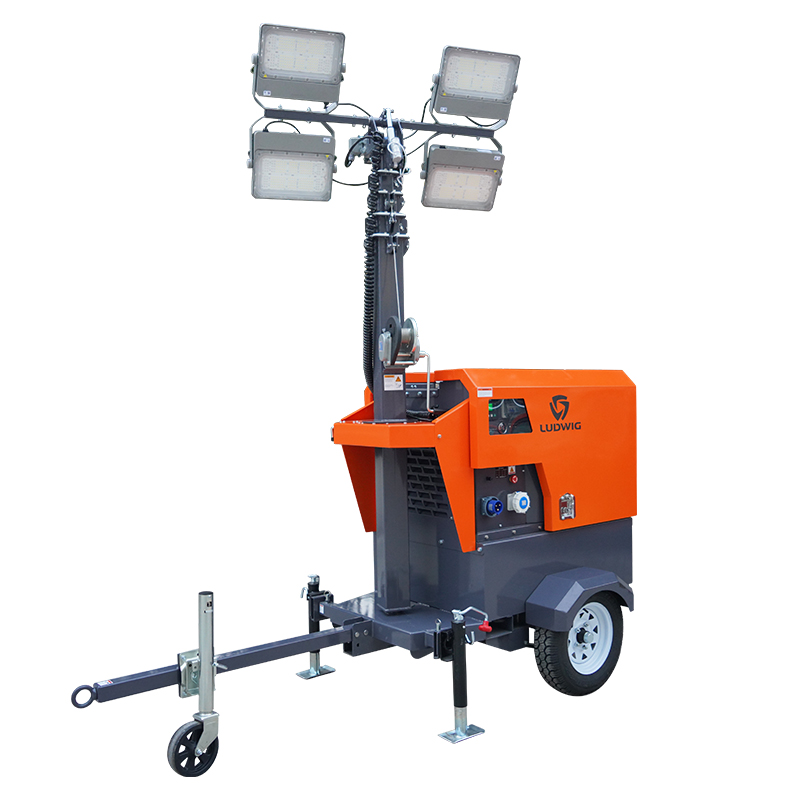

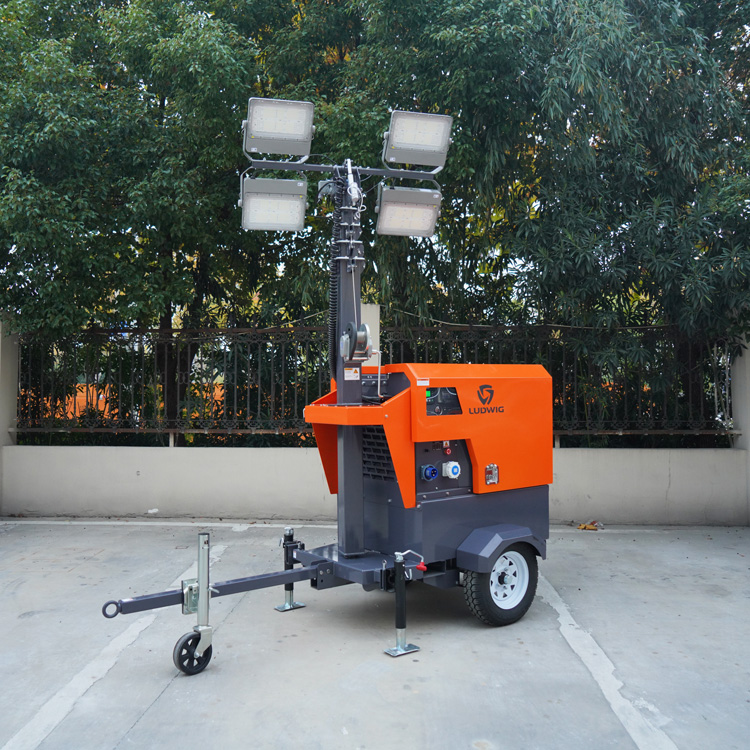

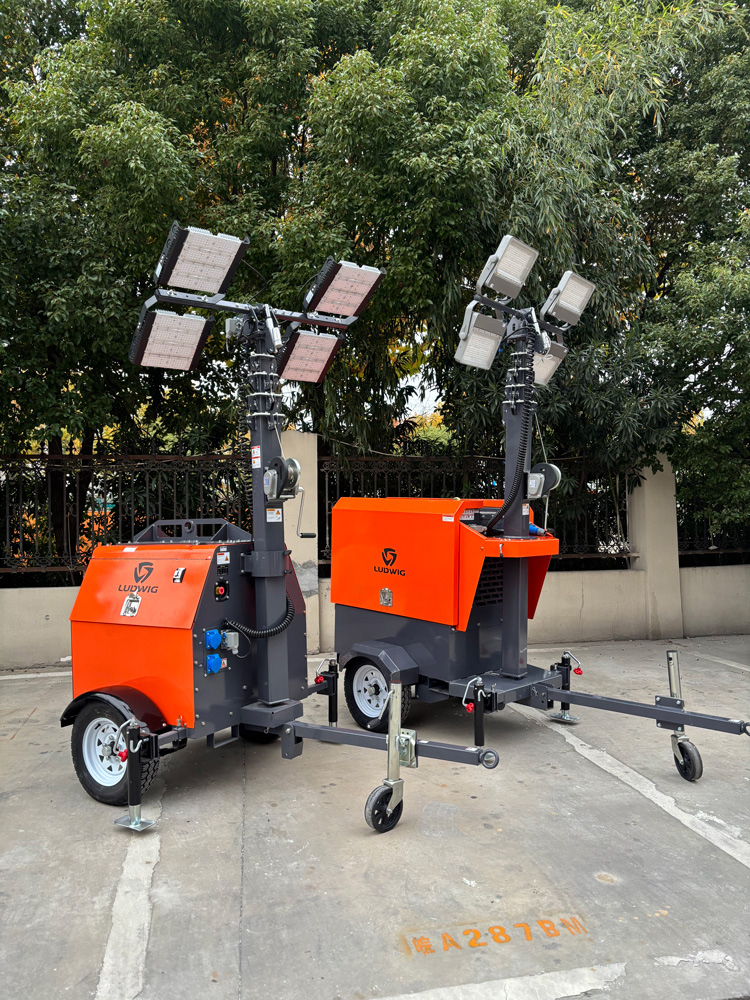

GLTD7600
- Product details

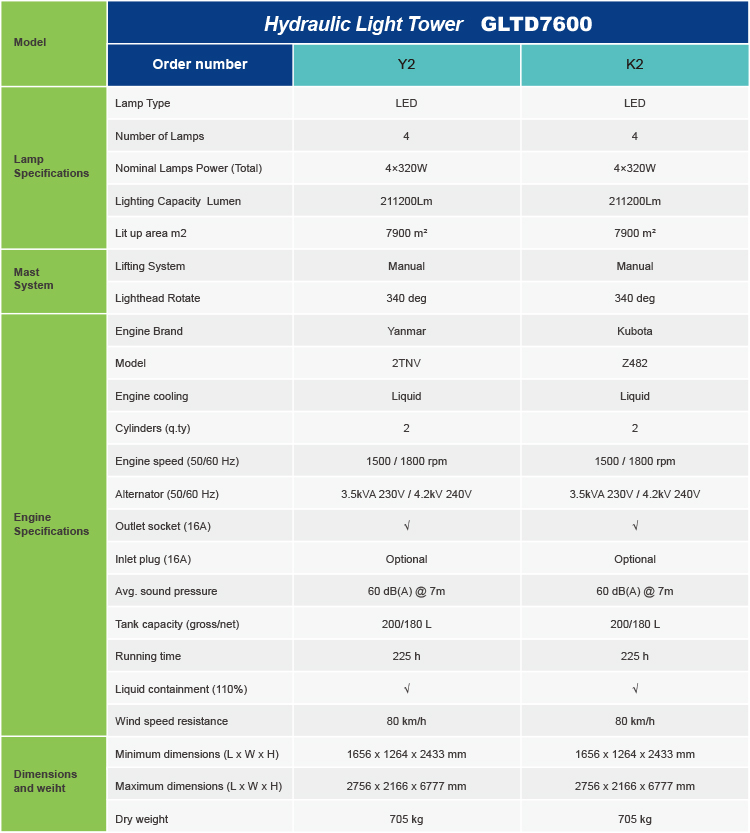

| Model | GLTD7600 | ||
| Order number | D-101 | D-102 | |
|
Lamp
Specifications
|
Lamp Type | LED | LED |
| Number Of Lamps | 4 | 4 | |
| Nominal Lamps Power (Total) | 4×320W | 4×320W | |
| Lighting Capacity Lumen | 211200Lm | 211200Lm | |
| Lit Up Area M2 | 7900 m² | 7900 m² | |
|
Mast
System
|
Lifting System | Manual | Manual |
| Lighthead Rotate | 340 deg | 340 deg | |
|
Engine
Specifications
|
Engine Brand | Yanmar | Kubota |
| Model | 2TNV70 | Z482 | |
| Engine Cooling | Liquid | Liquid | |
| Cylinders (Q.Ty) | 2 | 2 | |
| Engine Speed (50/60 Hz) | 1500 / 1800 rpm | 1500 / 1800 rpm | |
| Alternator (50/60 Hz) | 3.5kVA 230V / 4.2kV 240V | 3.5kVA 230V / 4.2kV 240V | |
| Outlet Socket (16a) | √ | √ | |
| Inlet Plug (16a) | Optional | Optional | |
| Avg. Sound Pressure | 60 dB(A) @ 7m | 60 dB(A) @ 7m | |
| Tank Capacity | 110 L | 110 L | |
| Running Time | 145 h | 145 h | |
| Liquid Containment (110%) | √ | √ | |
| Wind Speed Resistance | 80 km/h | 80 km/h | |
|
Dimensions
& weiht
|
Minimum Dimensions | 1656 x 1264 x 2433 mm | 1656 x 1264 x 2433 mm |
| Maximum Dimensions | 2756 x 2166 x 6777 mm | 2756 x 2166 x 6777 mm | |
| Dry Weight | 705 kg | 705 kg | |
