- GLTS4005
- HOME > Light Tower > Trailer Light Tower

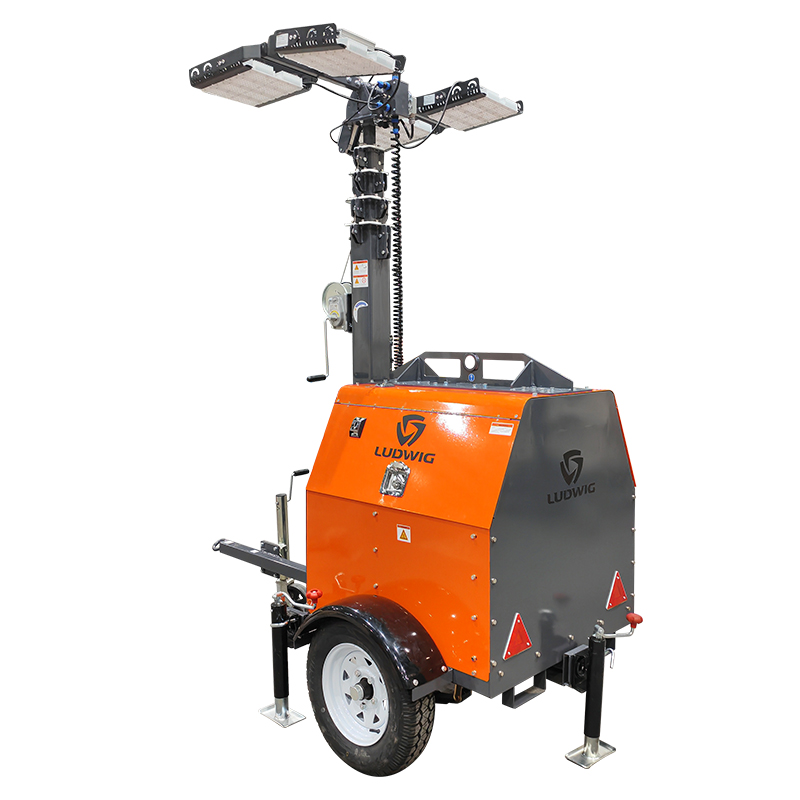

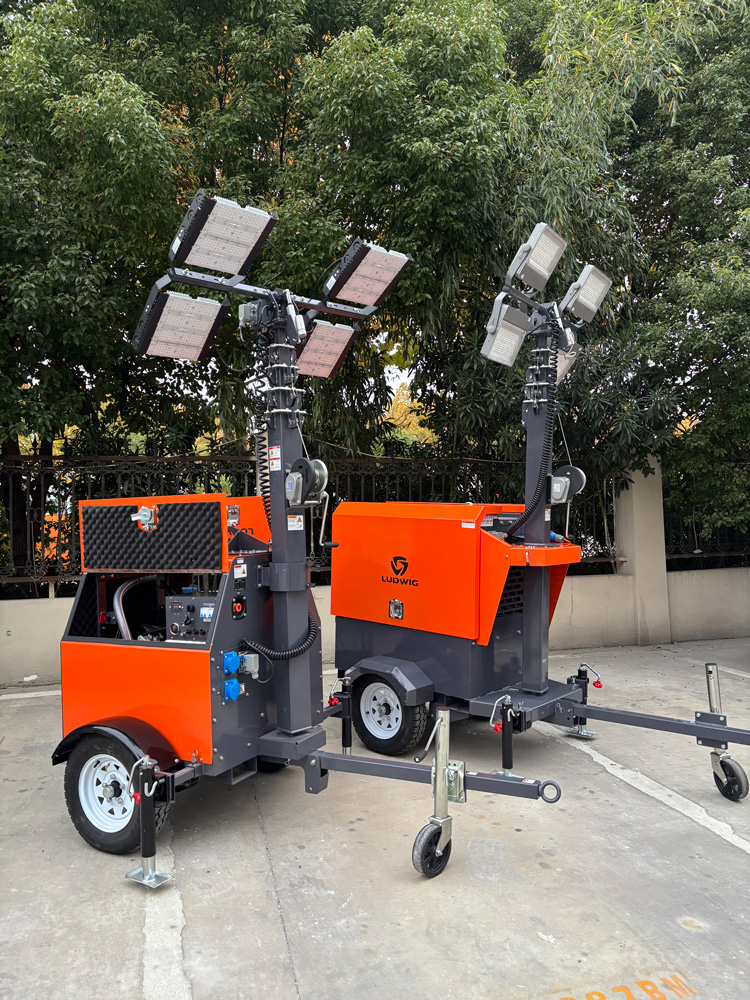

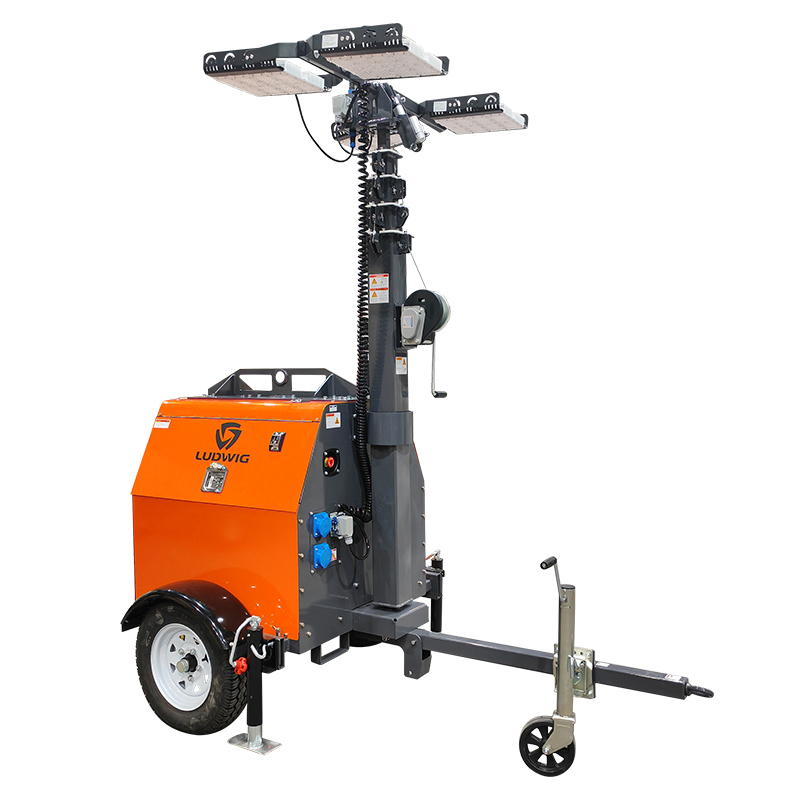

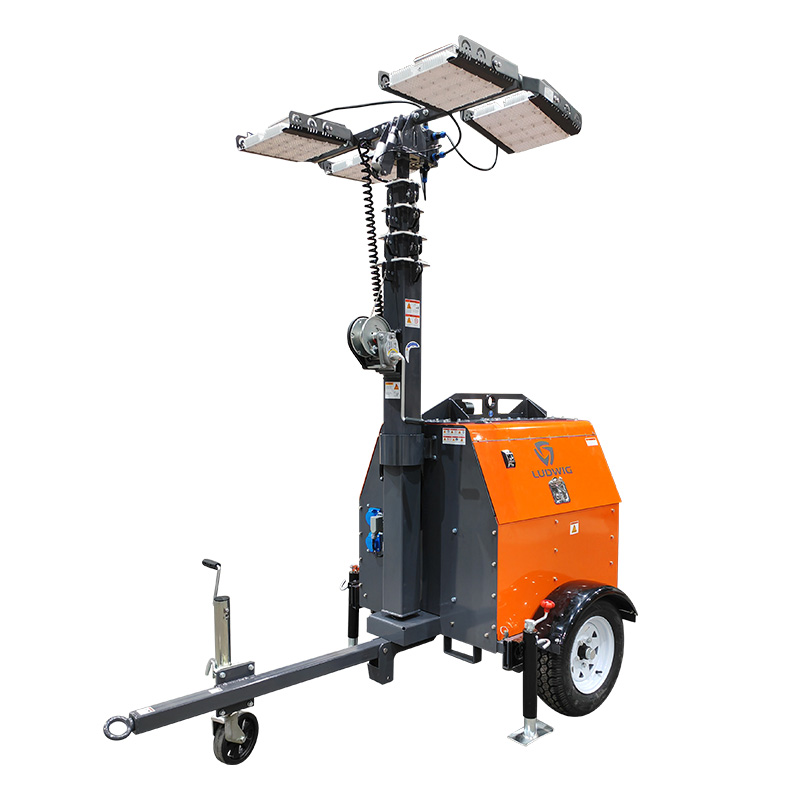

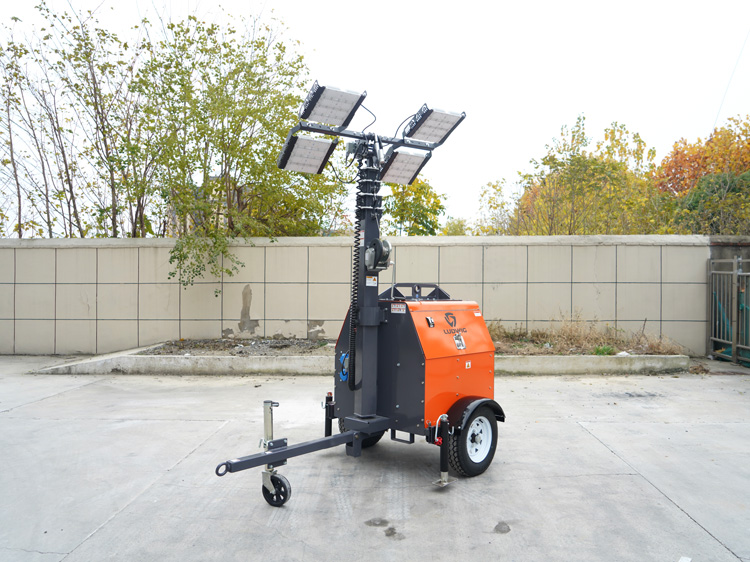

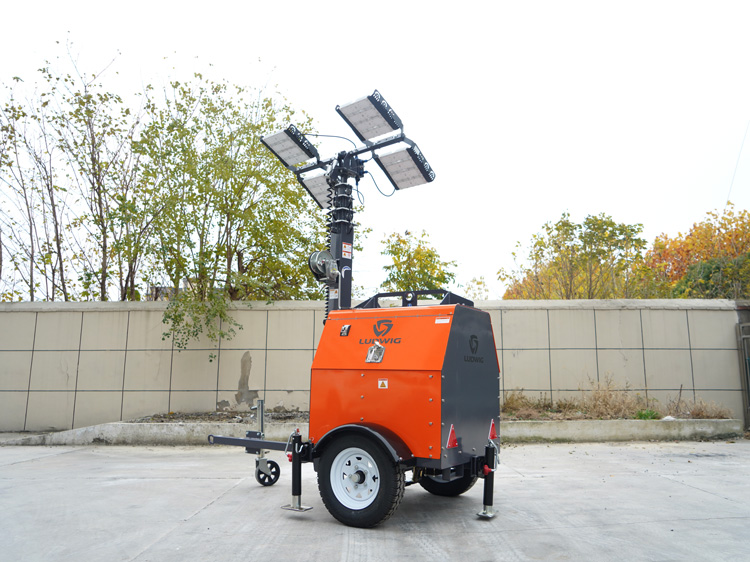

GLTS4005
- Product details
FEATURES
-Emergency stop
-Wide accesses for maintenance and control
-4 stabilizers, two of which are extensible to guarantee stability
-Bubble level located at the top of the genset
-Draw bar with ball coupling
-Includes lifting hooks and bracket holders
-Rings for fixation during transport
-Wheels: 2 x 155R12
ELECTRIC SYSTEM OF THE LIGHTING TOWER
-Manual controller
-Watertight panel, for control, protection and managing
-Thermal magnetic switches for spotlights and auxiliary sockets
-Two 16 amps auxiliary power sockets for the supply of power to auxiliary equipment
-Electrical control panel with earth leakage protection

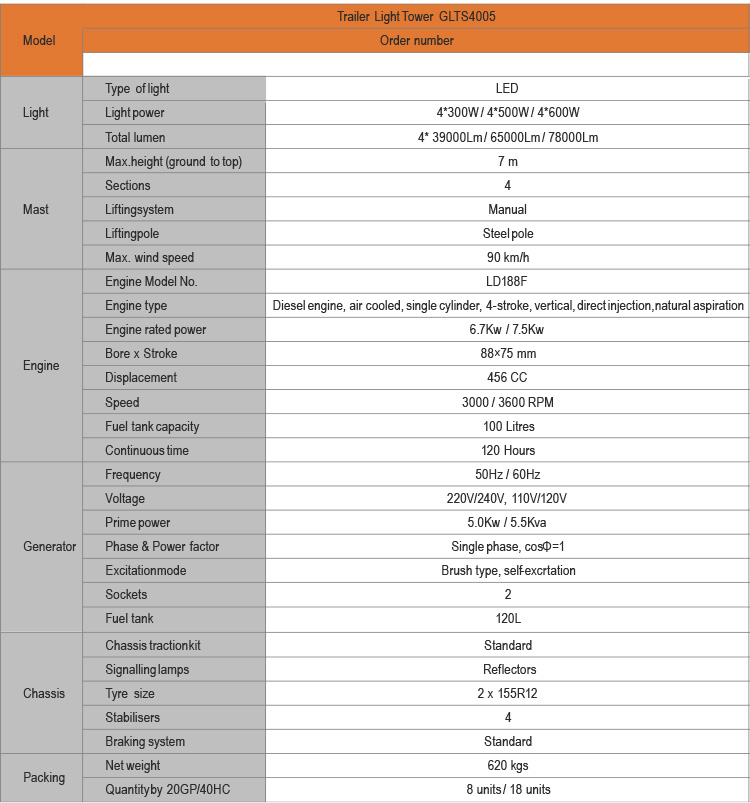

| Model | GLTS4005 | |||
| Order number | TS-101 | TS-102 | TS-103 | |
| Light | Type Of Light | LED | Metal halide | Metal halide |
| Light Power | 4*300W / 4*500W / 4*600W | 4*400W | 4*1000W | |
| Total Lumen | 4* 39000Lm / 65000Lm / 78000Lm | 4* 44000Lm | 4* 110000Lm | |
| Max.height (Ground To Top) | 7 m | 7 m | 7 m | |
| Mast | Sections | 4 | 4 | 4 |
| Lifting System | Manual | Manual | Manual | |
| Lifting Pole | Steel pole | Steel pole | Steel pole | |
| Max. Wind Speed | 90 km/h | 90 km/h | 90 km/h | |
| Engine | Engine Model No. | LD188F | LD188F | LD192F |
| Engine Rated Power | 7.5 Kw | 7.5 Kw | 7.5 Kw | |
| Engine type |
Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration
|
Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration
|
Diesel engine, air cooled, single cylinder, 4-stroke, vertical,
direct injection, natural aspiration
|
|
| Bore X Stroke | 88×75 mm | 88×75 mm | 92×75 mm | |
| Displacement | 456 cc | 456 cc | 499 cc | |
| Speed | 3600RPM | 3600RPM | 3600RPM | |
| Fuel tank capacity | 110 Litres | 110 Litres | 110 Litres | |
| Continuous time | 120 Hours | 120 Hours | 120 Hours | |
| Generator | Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz |
| Voltage | 220V/240V, 110V/120V | 220V/240V, 110V/120V | 220V/240V, 110V/120V | |
| Prime power | 6.0Kw | 6.0Kw | 6.0Kw | |
| Phase & Power Factor | Single phase, cosΦ=1 | Single phase, cosΦ=1 | Single phase, cosΦ=1 | |
| Excitation Mode | Brush type, self-excitation | Brush type, self-excitation | Brush type, self-excitation | |
| Sockets | 2 | 2 | 2 | |
| Chassis | Chassis traction kit | Standard | Standard | Standard |
| Signalling lamps | Reflectors | Reflectors | Reflectors | |
| Tyre size | 2 x 155R12 | 2 x 155R12 | 2 x 155R12 | |
| Stabilisers | 4 | 4 | 4 | |
| Braking system | Standard | Standard | Standard | |
| Packing | Net weight | 620 kgs | 620 kgs | 620 kgs |
| Quantity by 20GP/40HC | 8 units / 18 units | 8 units / 18 units | 8 units / 18 units | |
