- GTV5
- HOME > Light Tower > Trailer Light Tower

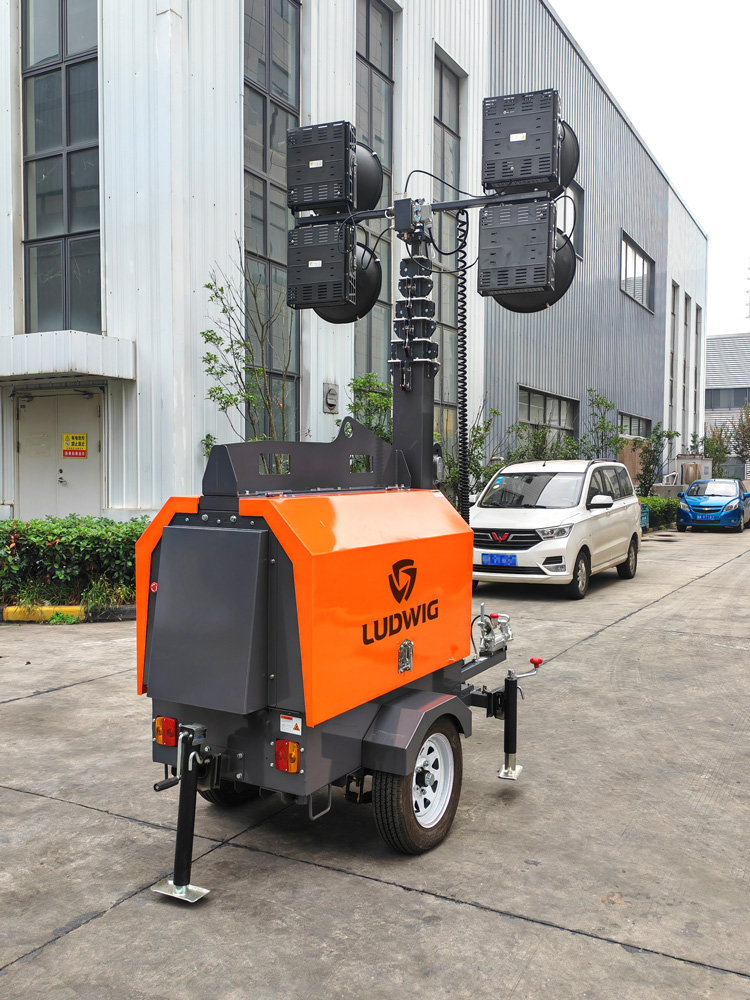

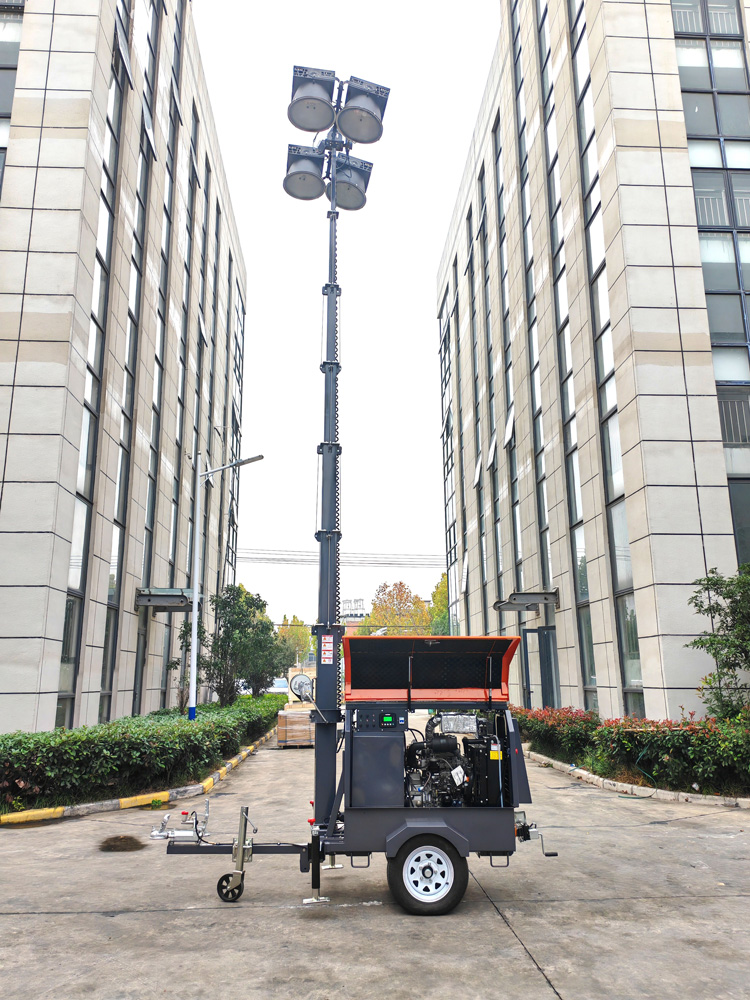

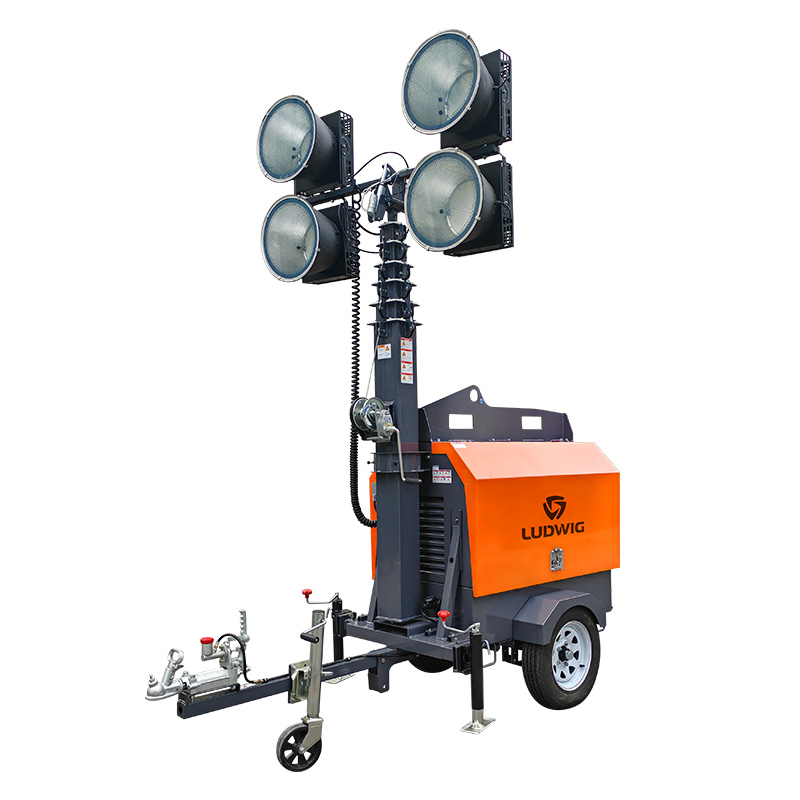

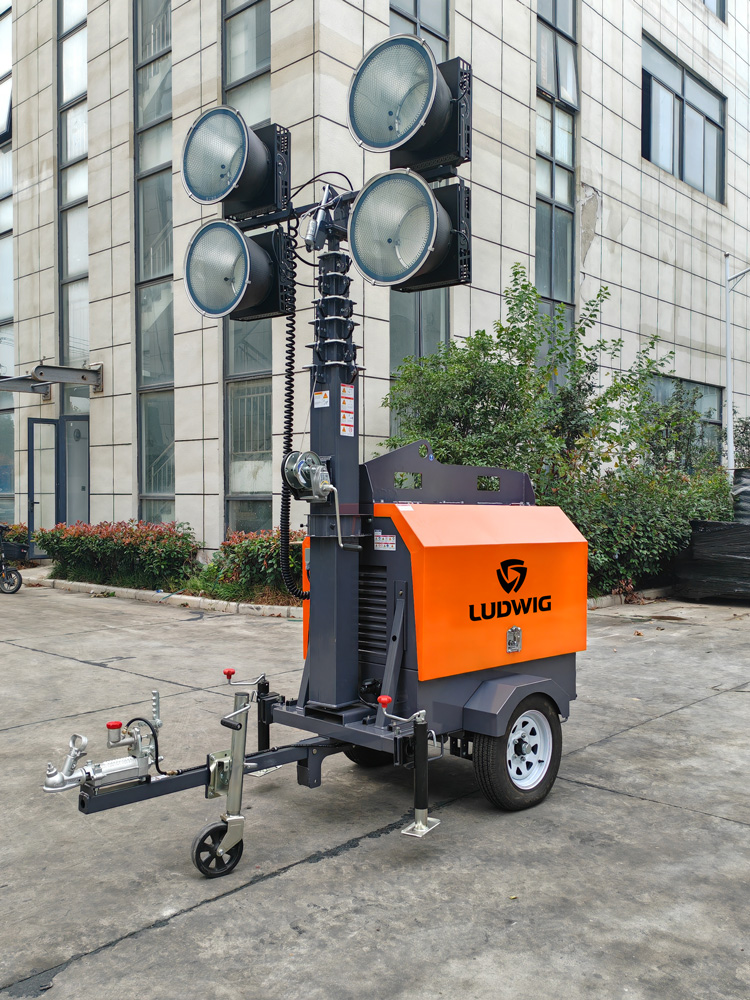

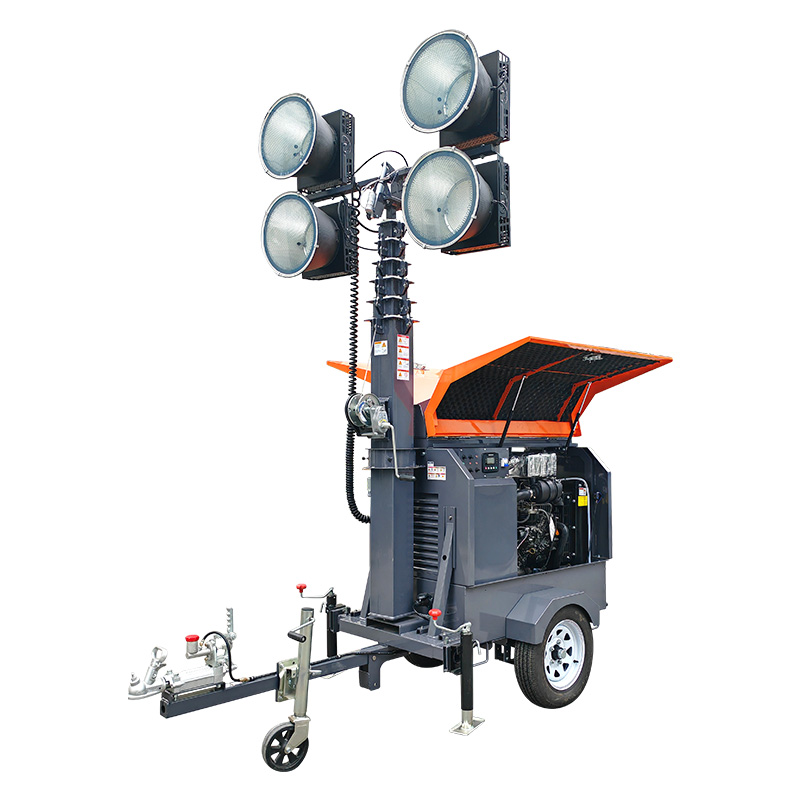

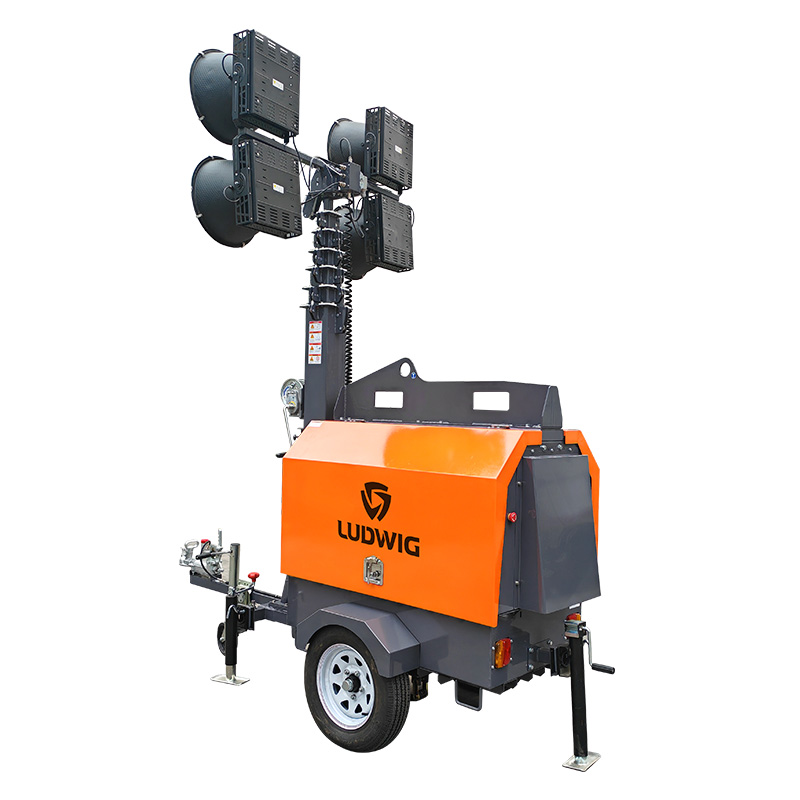

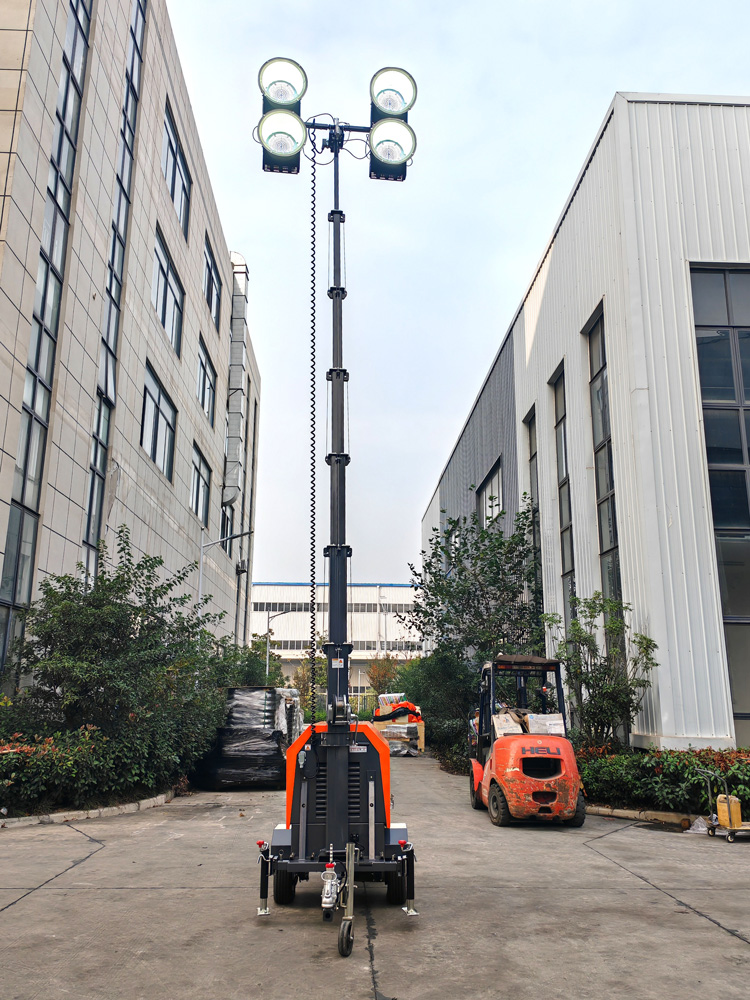

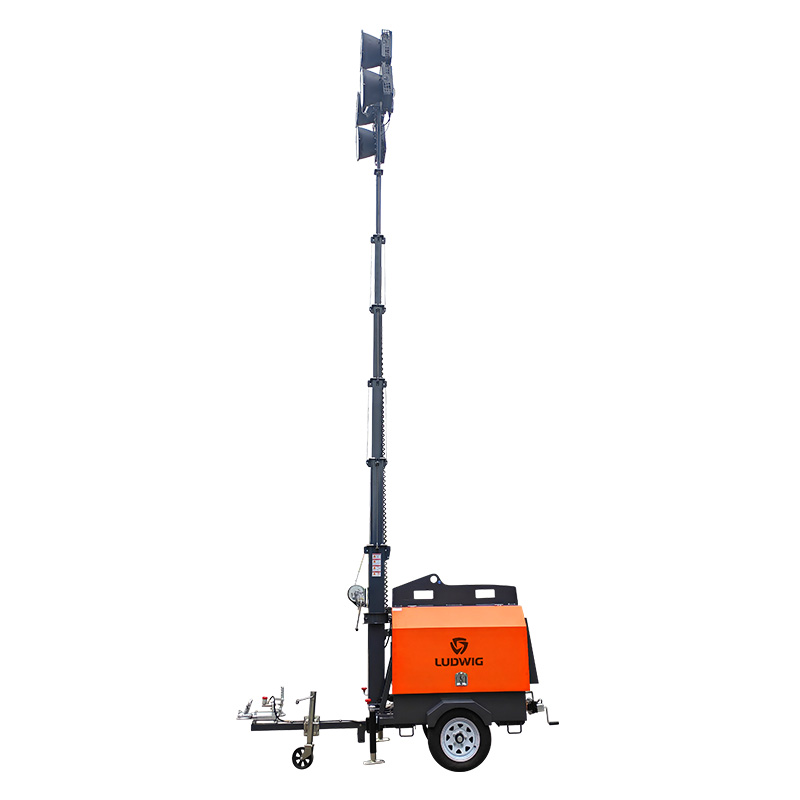

GTV5
- Product details
FEATURES:
1: Can be matched with a variety of lights 100~1000W LED 400/1000W METAL HALIDE
2.Lifting mode: manual, electric,hydraulic
3.The light pole can rotate 360 degrees
4.With brakes
5.The lighting Angle can be adjusted
6.With brake lights, warning lights, taillights
7.The walking speed can reach 80KM/

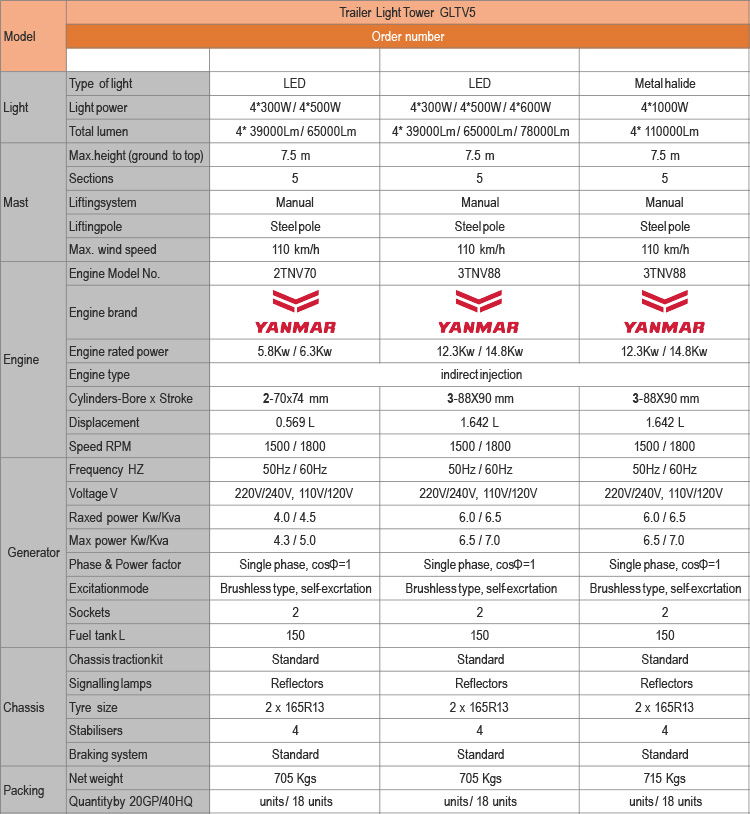

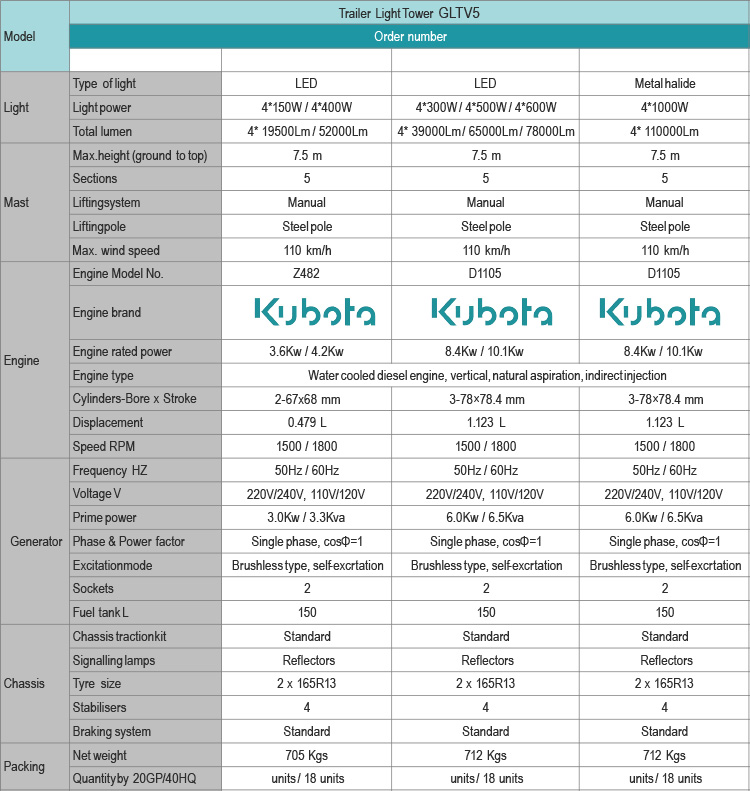

| Model | GLTV5 | ||
| Order number | V5-K | V5-Y | |
| Light | Type Of Light | LED | Metal halide |
| Light Power | 4*300W / 4*500W / 4*600W | 4*1000W | |
| Total Lumen | 4* 39000Lm / 65000Lm / 78000Lm | 4* 110000Lm | |
| Mast | Max.height (Ground To Top) | 7.5 m | 7.5 m |
| Sections | 5 | 5 | |
| Lifting System | Manual | Manual | |
| Lifting Pole | Steel pole | Steel pole | |
| Max. Wind Speed | 110 km/h | 110 km/h | |
| Engine | Engine Model No. | D1105 | 3TNV88 |
| Engine Brand | KUBOTA | YANMAR | |
| Engine Rated Power | 8.4Kw / 10.1Kw | 12.3Kw / 14.8Kw | |
| Engine type |
Water cooled diesel engine, vertical,
natural aspiration, indirect injection
|
indirect injection | |
| Cylinders-bore X Stroke | 3-78×78.4 mm | 3-88X90 mm | |
| Displacement | 1.123 L | 1.642 L | |
| Speed | 1500RPM / 1800RPM | 1500RPM / 1800RPM | |
| Generator | Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Voltage | 220V/240V, 110V/120V | 220V/240V, 110V/120V | |
| Raxed Power | 8.0Kw | 8.0Kw | |
| Phase & Power Factor | Single phase, cosΦ=1 | Single phase, cosΦ=1 | |
| Excitation Mode | Brushless type, self-excitation | Brushless type, self-excitation | |
| Sockets | 2 | 2 | |
| Fuel Tank | 120 L | 120 L | |
| Chassis | Chassis Traction Kit | Standard | Standard |
| Signalling Lamps | Reflectors | Reflectors | |
| Tyre Size | 2 x 165R13 | 2 x 165R13 | |
| Stabilisers | 4 | 4 | |
| Braking System | Standard | Standard | |
| Packing | Net Weight | 980 Kgs | 980 Kgs |
| Quantity By 20GP/40HQ | 8 units / 18 units | 8 units / 18 units | |
