- GLTM2800
- HOME > Light Tower > Battery Light Tower

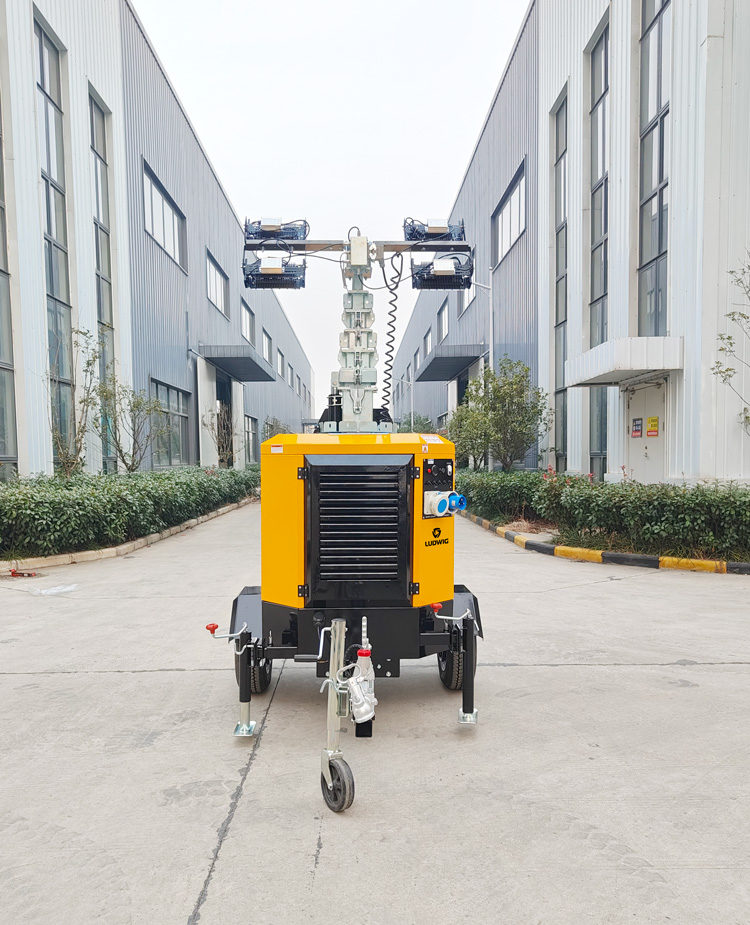

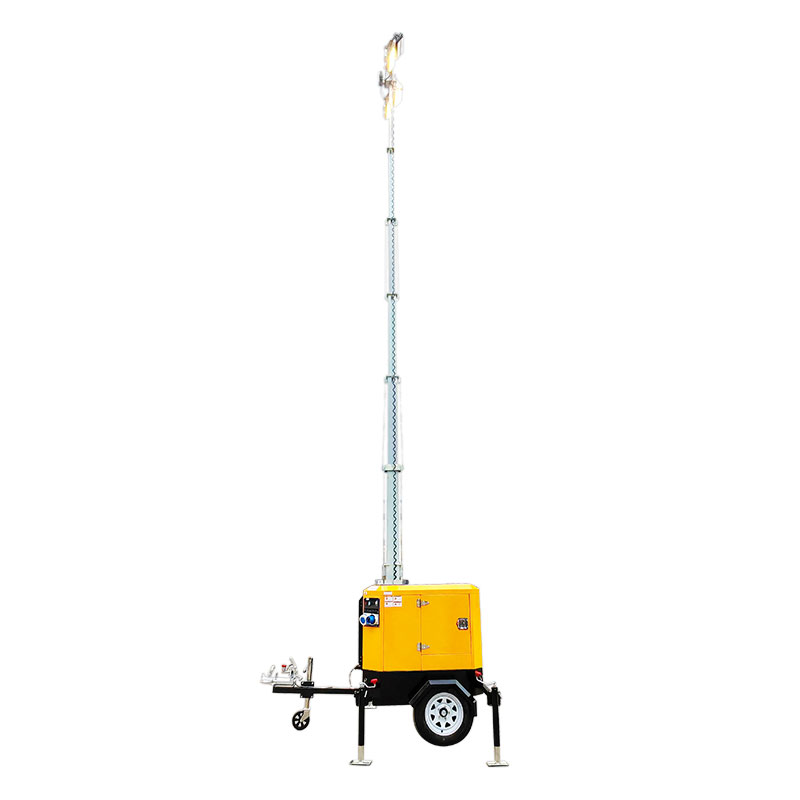

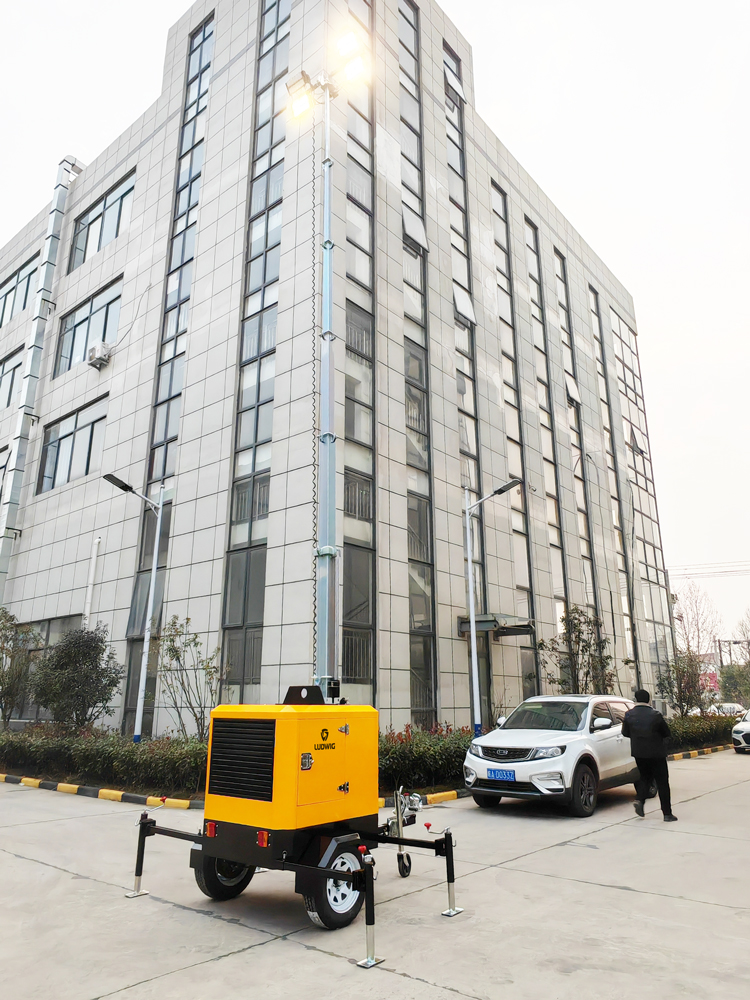

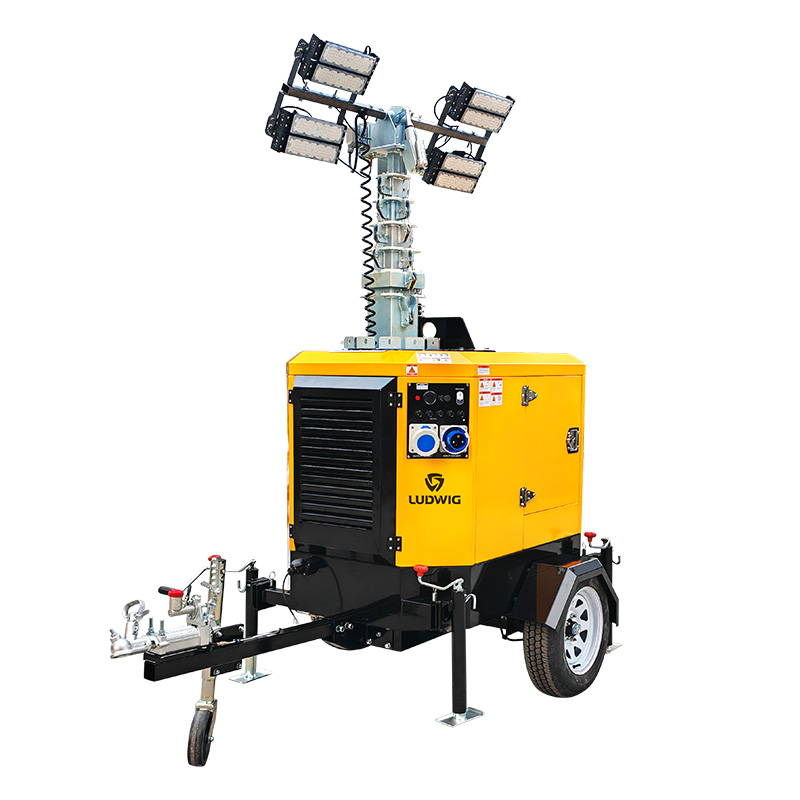

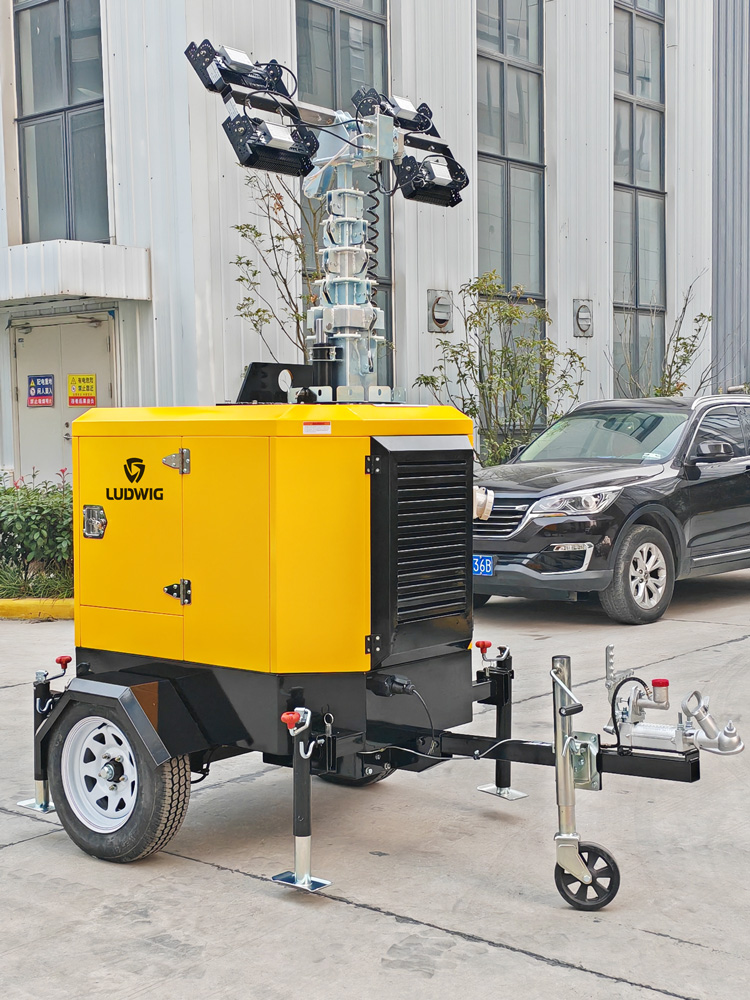

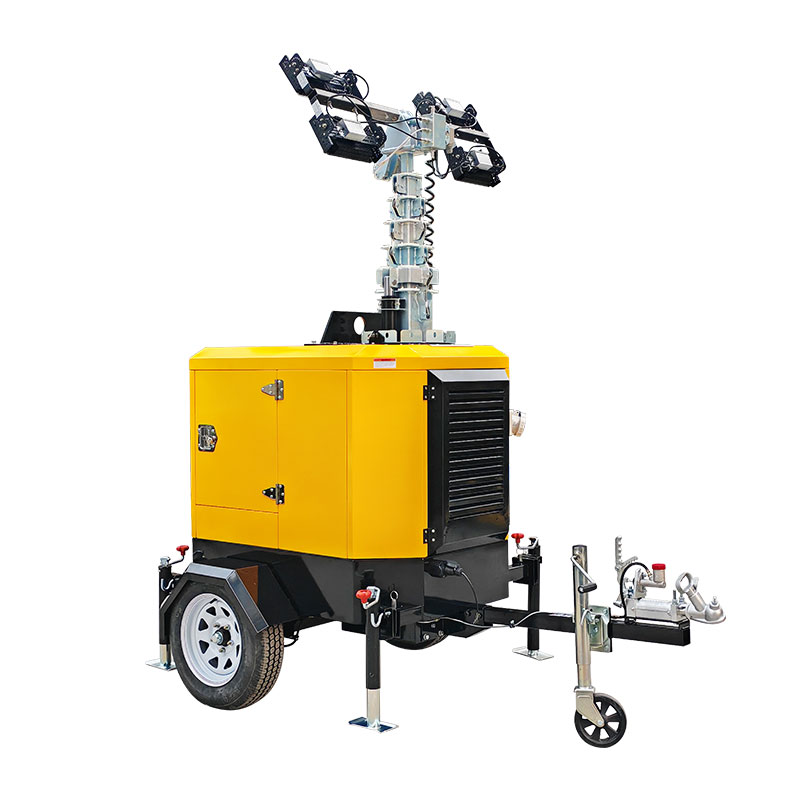

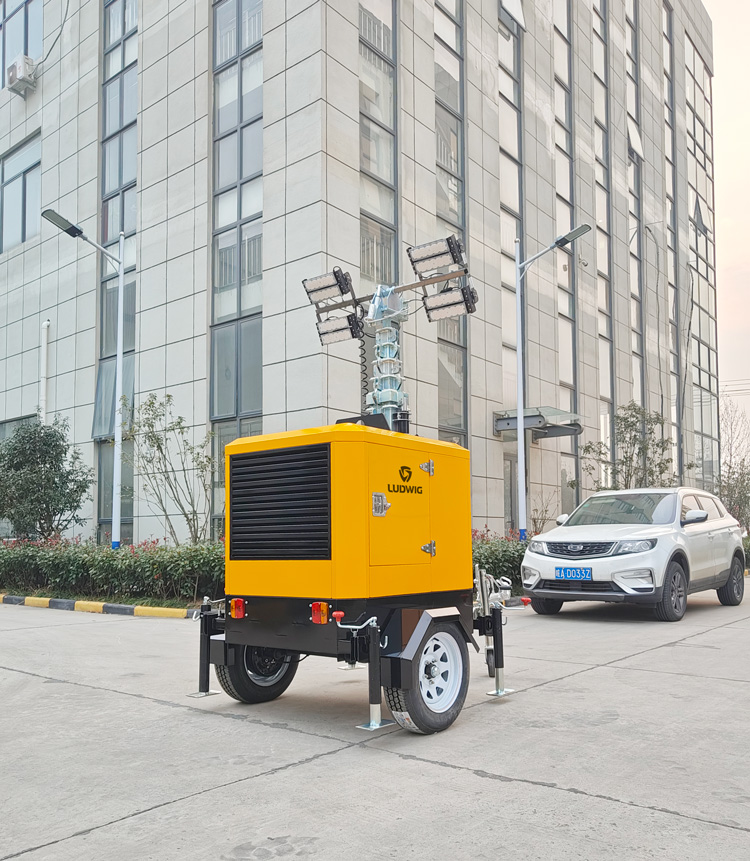

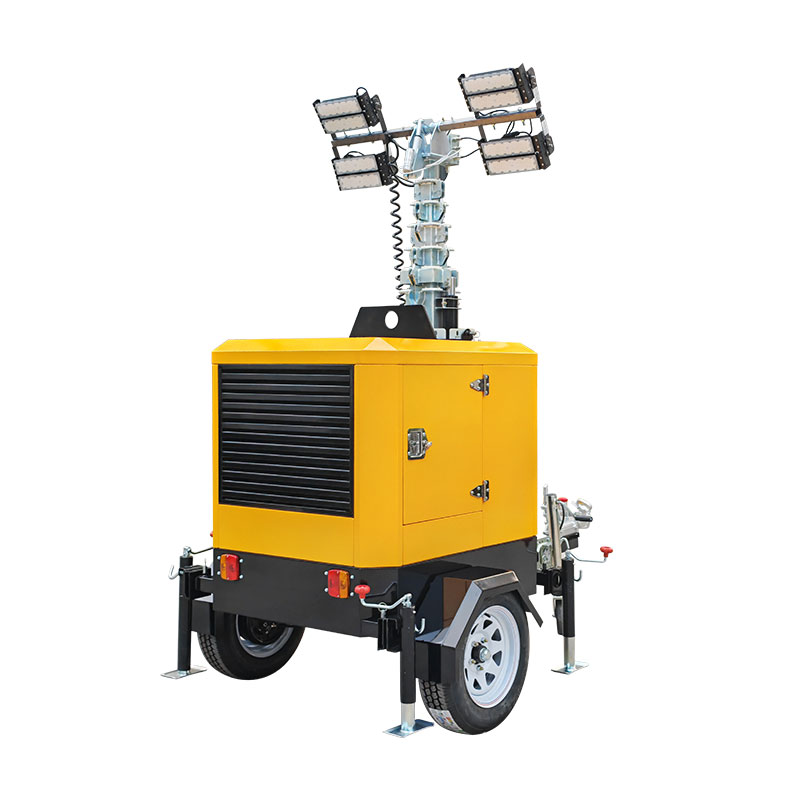

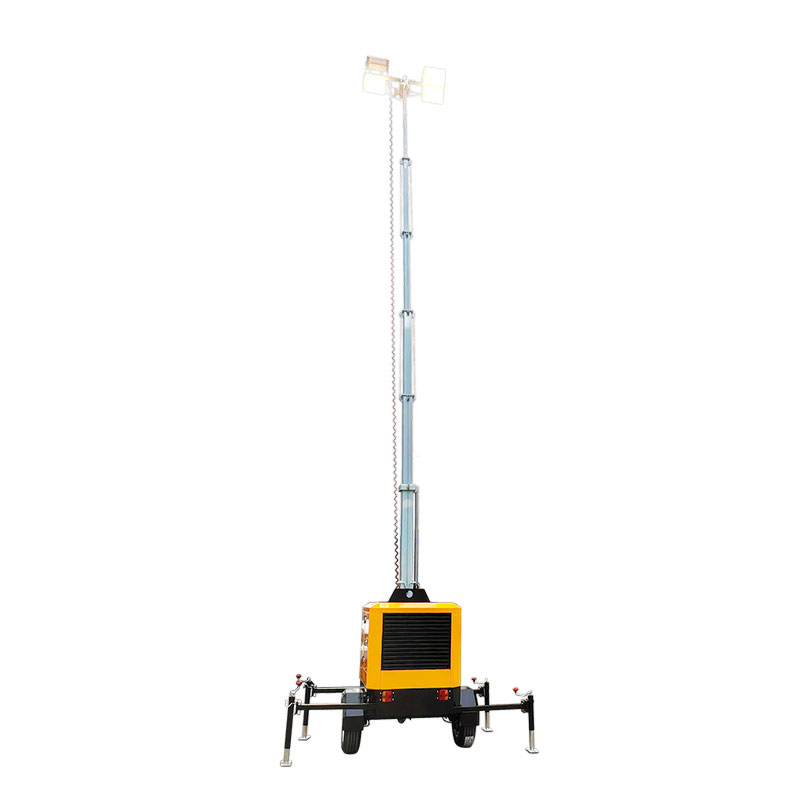

GLTM2800
- Product details

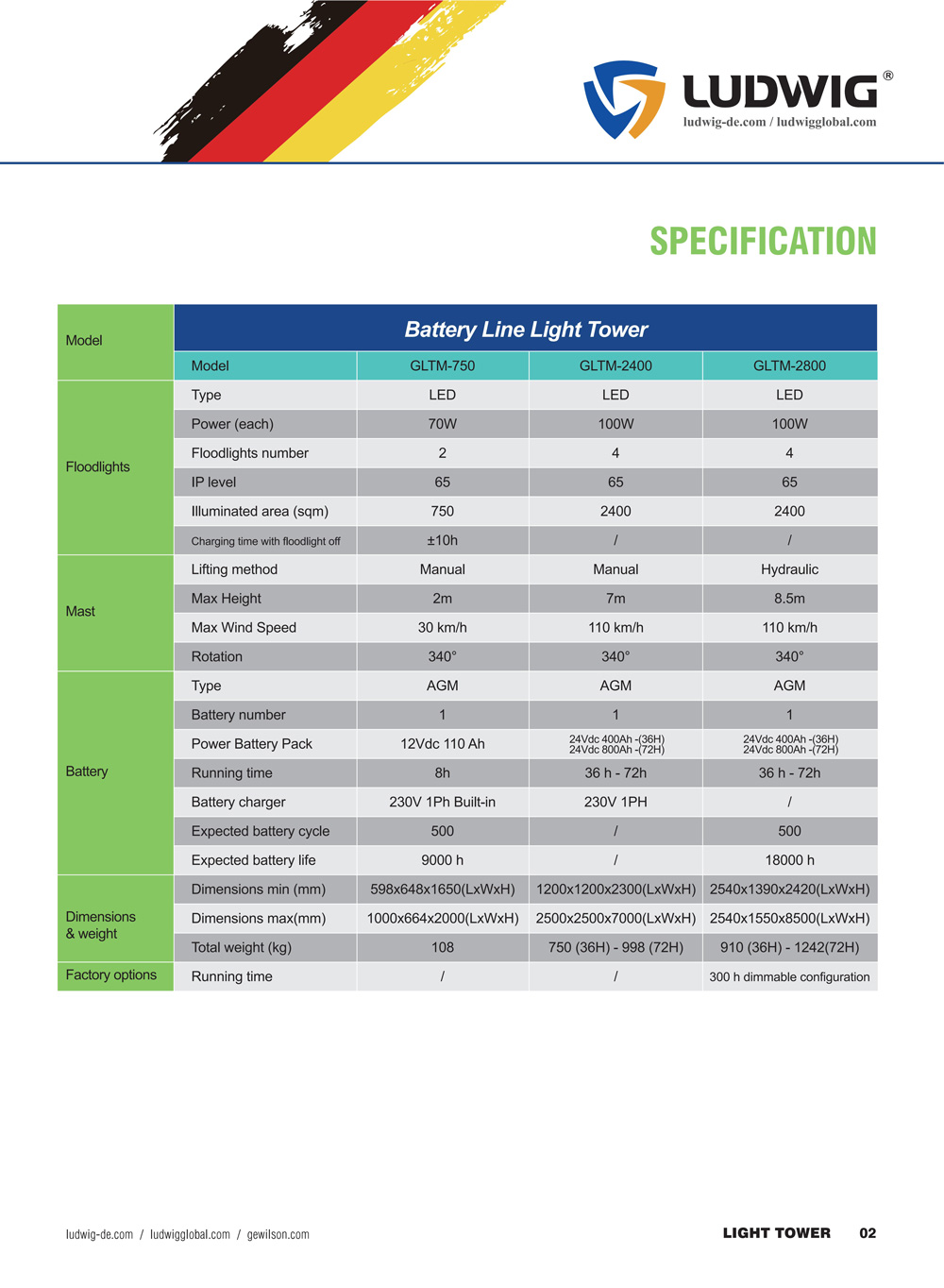

| Model | Model | GLTM-750 | GLTM-2400 | GLTM-2800 |
| Floodlights | Type | LED | LED | LED |
| Power (Each) | 70W | 100W | 100W | |
| Floodlights Number | 2 | 4 | 4 | |
| Ip Level | 65 | 65 | 65 | |
| Illuminated Area (Sqm) | 750 | 2400 | 2400 | |
| Charging Time With Floodlight Off | ±10h | / | / | |
| Mast | Lifting Method | Manual | Manual | Hydraulic |
| Max Height | 2m | 7m | 8.5m | |
| Max Wind Speed | 30 km/h | 60 km/h | 110 km/h | |
| Rotation | 340° | 340° | 340° | |
| Battery | Type | AGM | AGM | AGM |
| Battery Number | 1 | 1 | 1 | |
| Power Battery Pack | 12Vdc 110 Ah |
24Vdc 400Ah -(36H)
24Vdc 800Ah -(72H)
|
24Vdc 400Ah -(36H)
24Vdc 800Ah -(72H)
|
|
| Running Time | 8h | 36 h - 72h | 36 h - 72h | |
| Battery Charger | 230V 1Ph Built-in | 230V 1PH | 230V 1PH | |
| Expected Battery Cycle | 500 | 800 | 500 | |
| Expected Battery Life | 9000 h | 18000H | 18000 h | |
| Dimensions& weight | Dimensions Min (Mm) | 598x648x1650(LxWxH) | 1200x1200x2300(LxWxH) | 2540x1390x2420(LxWxH) |
| Dimensions Max(Mm) | 1000x664x2000(LxWxH) | 2500x2500x7000(LxWxH) | 2540x1550x8500(LxWxH) | |
| Total Weight (Kg) | 108 | 550 | 1170 |
