- GLTJ9105
- HOME > Light Tower > Hydraulic Light Tower

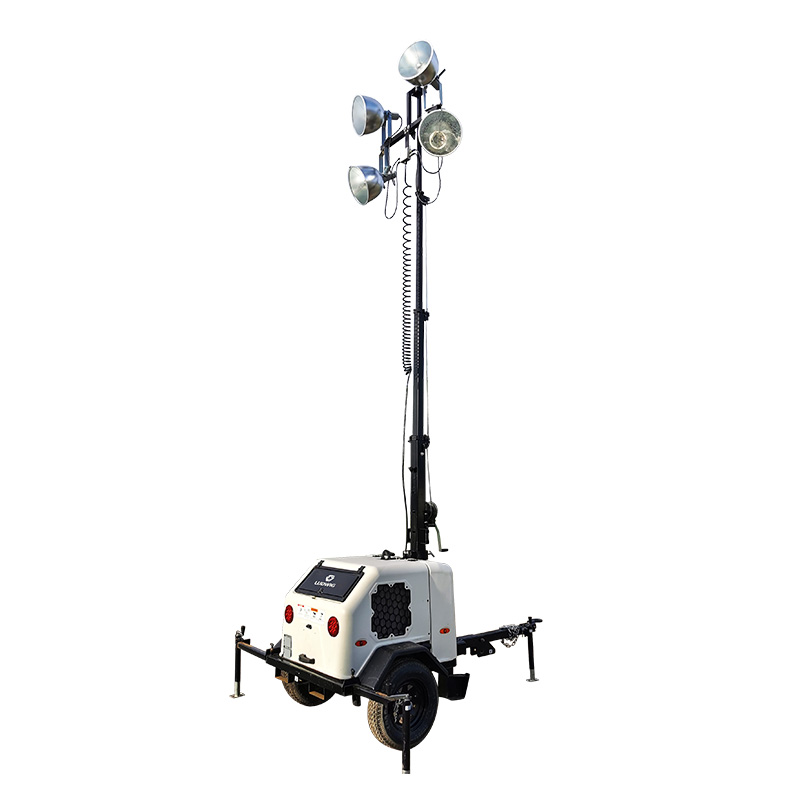

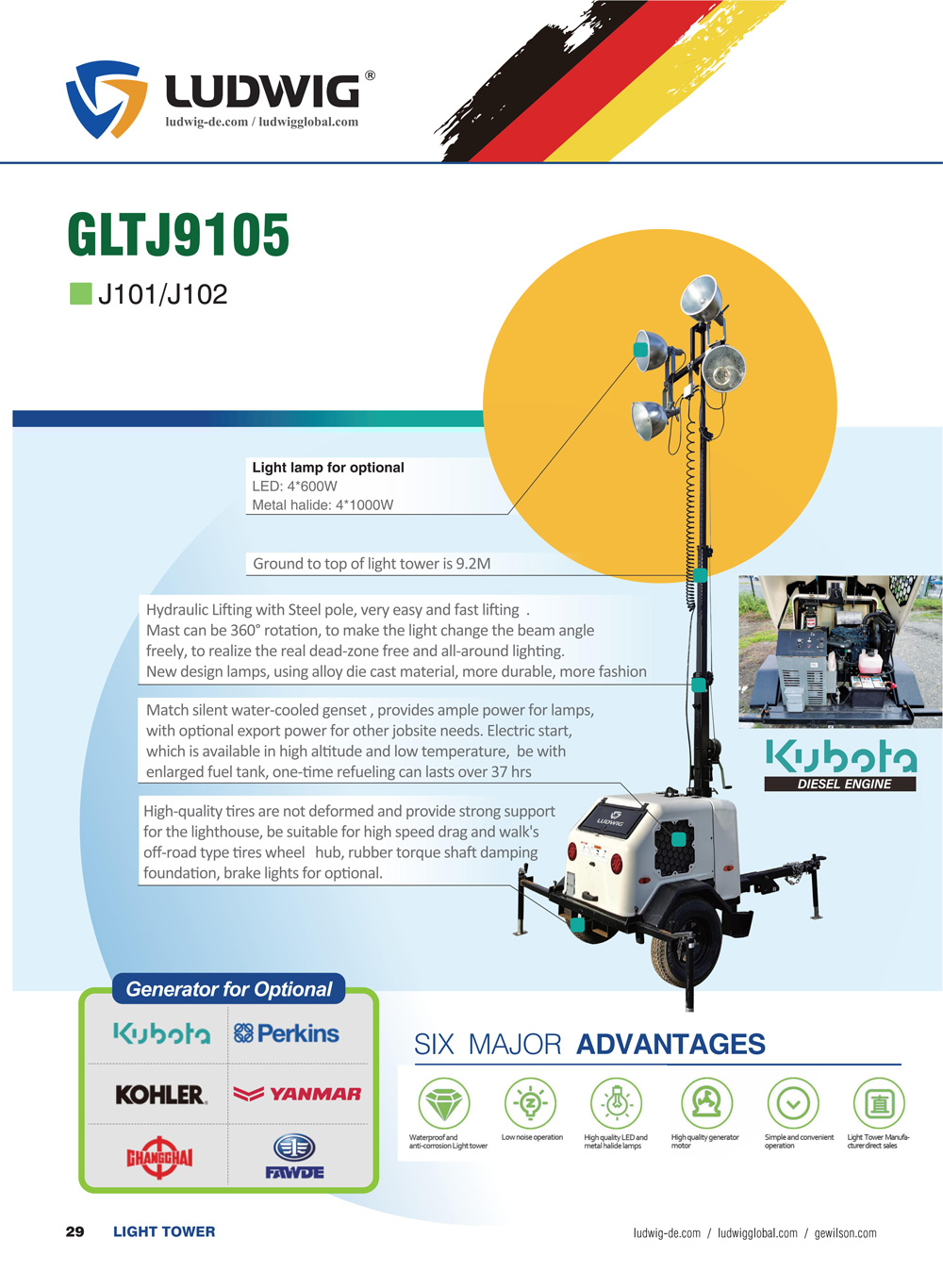

GLTJ9105

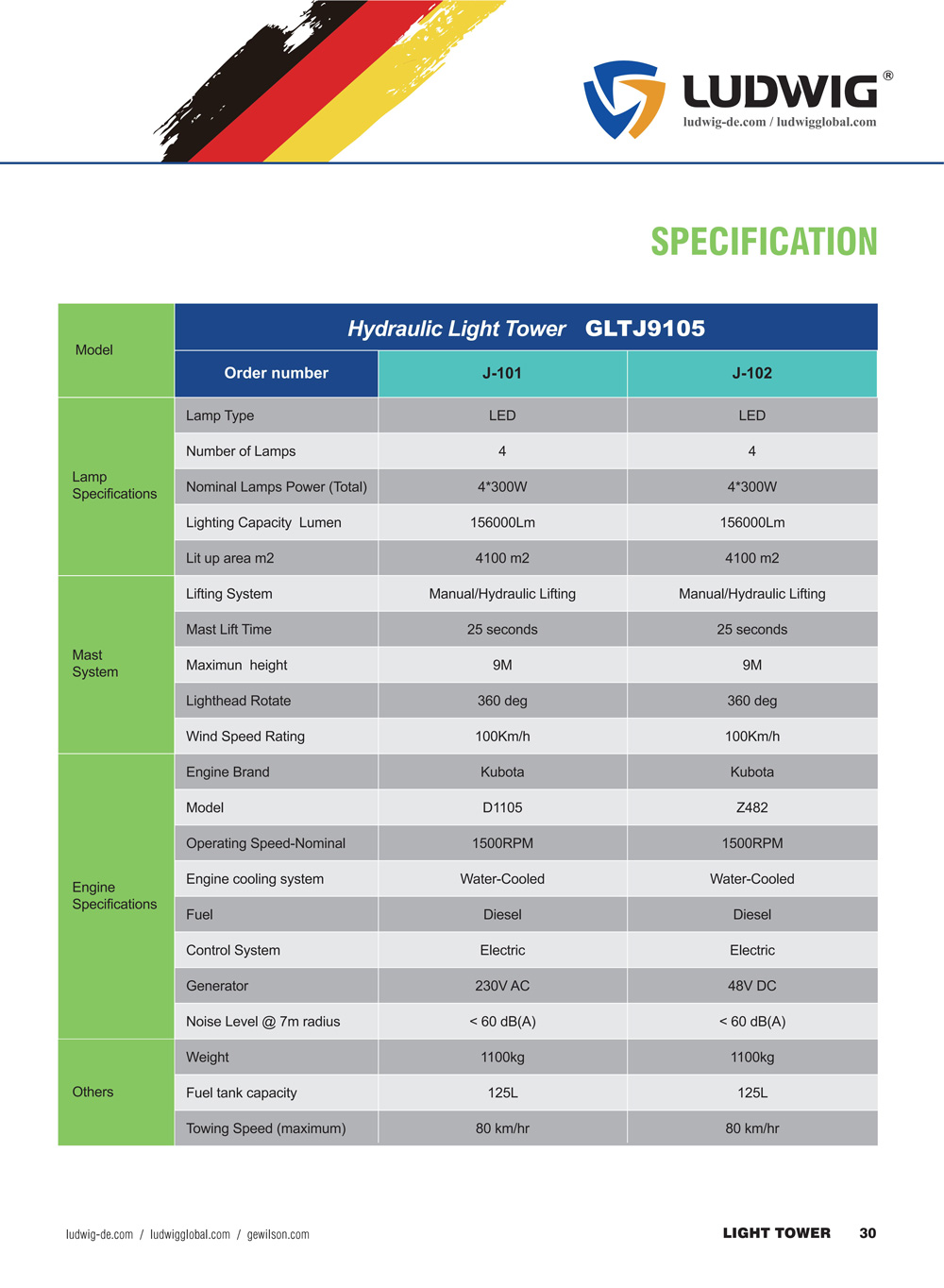

- Product details
| Model | GLTJ9105 | |
| Order number | J-101 | |
|
Lamp
Specifications
|
Lamp Type | LED |
| Number Of Lamps | 4 | |
| Nominal Lamps Power (Total) | 4×300W | |
| Lighting Capacity Lumen | 156000Lm | |
| Lit Up Area M2 | 4100 m² | |
|
Mast
System
|
Lifting System | Manual/Hydraulic Lifting |
| Mast Lift Time | 25 seconds | |
| Maximun Height | 9M | |
| Lighthead Rotate | 360 deg | |
| Wind Speed Rating | 100Km/h | |
|
Engine
Specifications
|
Engine Brand | Kubota |
| Model | D1105 | |
| Operating Speed-nominal | 1500RPM | |
| Engine Cooling System | Water-Cooled | |
| Fuel | Diesel | |
| Control System | Electric | |
| Generator | 230V AC | |
| Noise Level @ 7m Radius | < 60 dB(A) | |
| Others | Weight | 1100kg |
| Fuel Tank Capacity | 125L | |
| Towing Speed (Maximum) | 80 km/hr | |
