- GVC60H-ZERO
- HOME > Construction Machinery > Plate Compactor

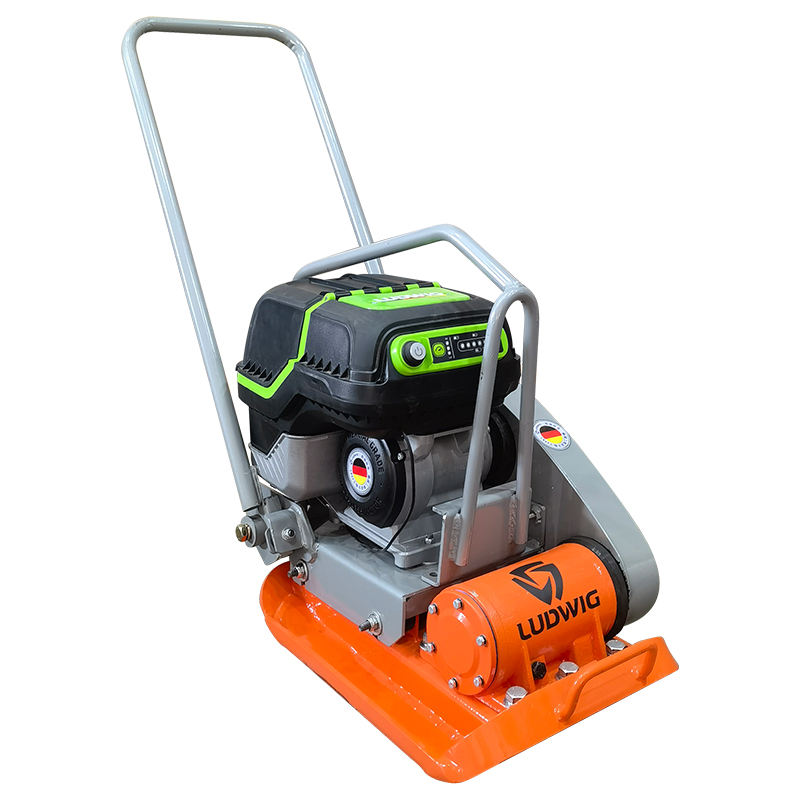

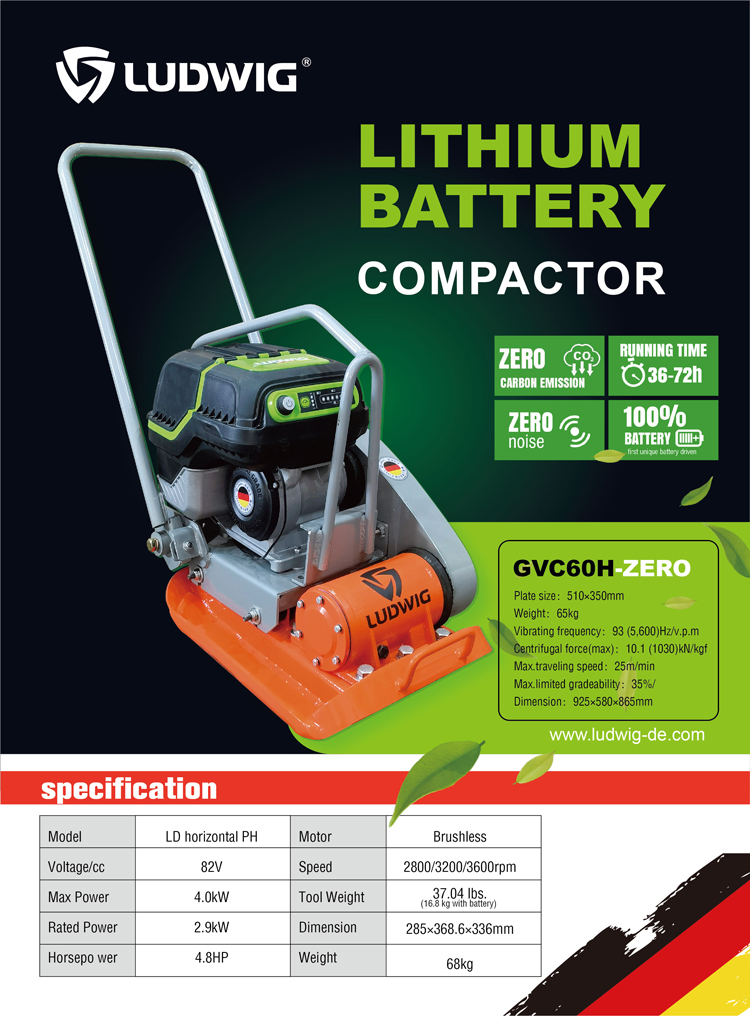

GVC60H-ZERO
- Product details
| Model | GVC60H-ZERO | |
| Plate compactor | Plate size | 510×350mm |
| Weight | 65kg | |
| Vibrating frequency | 93 (5,600)Hz/v.p.m | |
| Centrifugal force(max) | 10.1 (1030)kN/kgf | |
| Max.traveling speed | 25m/min | |
| Max.limited gradeability | 0.35 | |
| Dimension | 925×580×865mm | |
| Battery | Voltage/cc | 82V |
| Max Power | 4.0kw | |
| Rated Power | 2.9kw | |
| Horse Power | 4.8HP | |
| Motor | Brushless | |
| Speed | 2800/3200/3600rpm | |
| Charging Time (min) | 30 | |
| Use Time (min) | 30 | |
| Battery QTY | 2PCS | |
| Tool Weight | 37.04 lbs | |
| Dimension | 285*368*336mm | |
