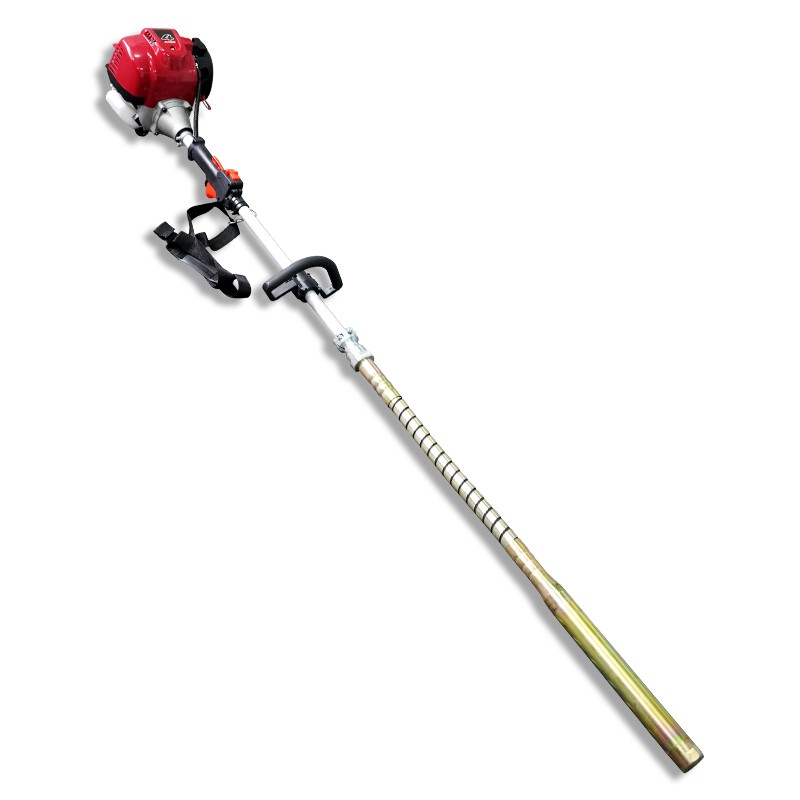

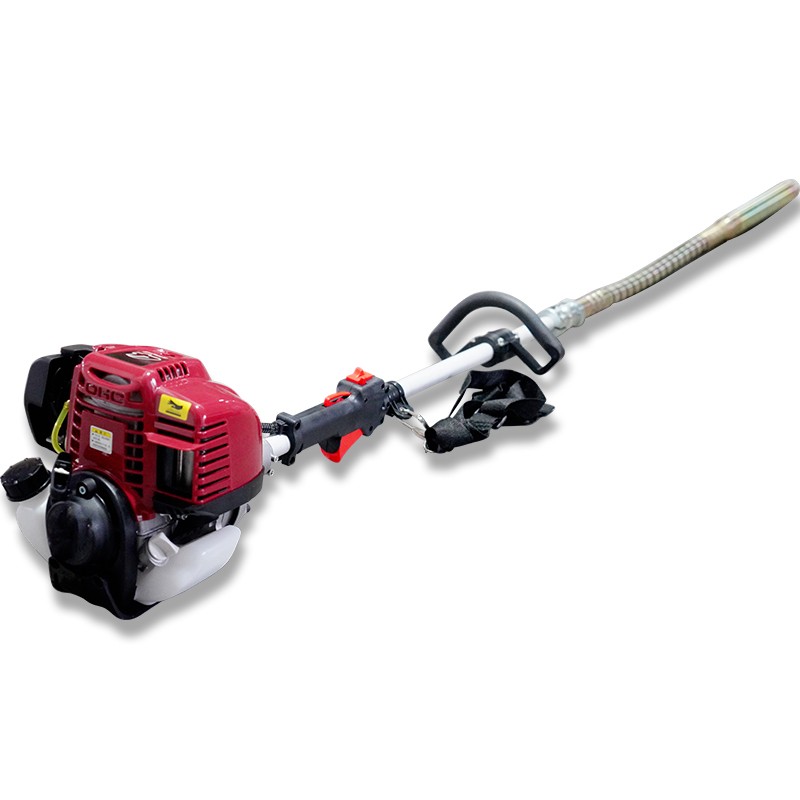

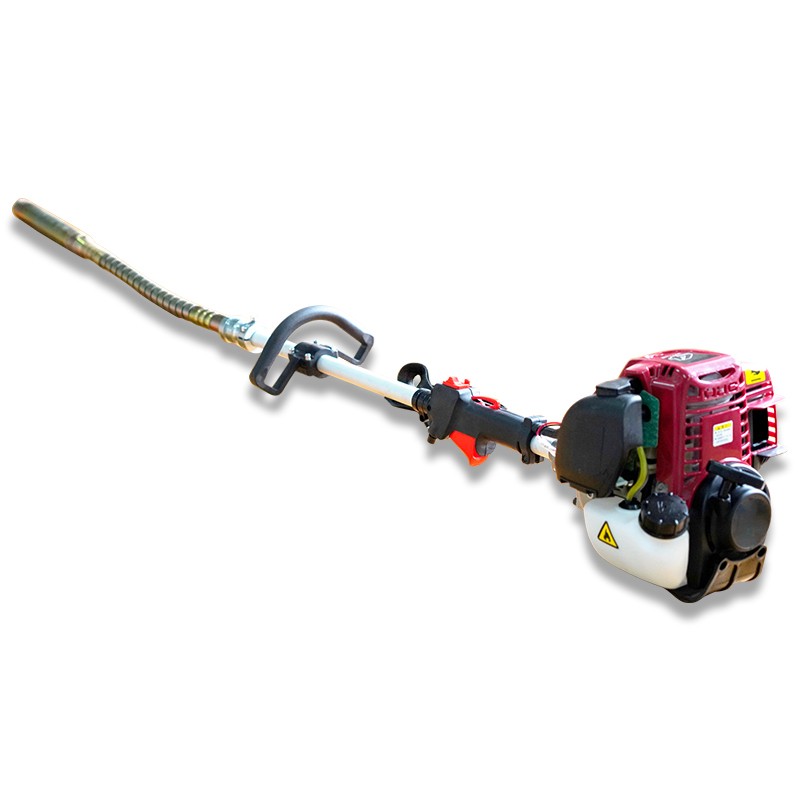

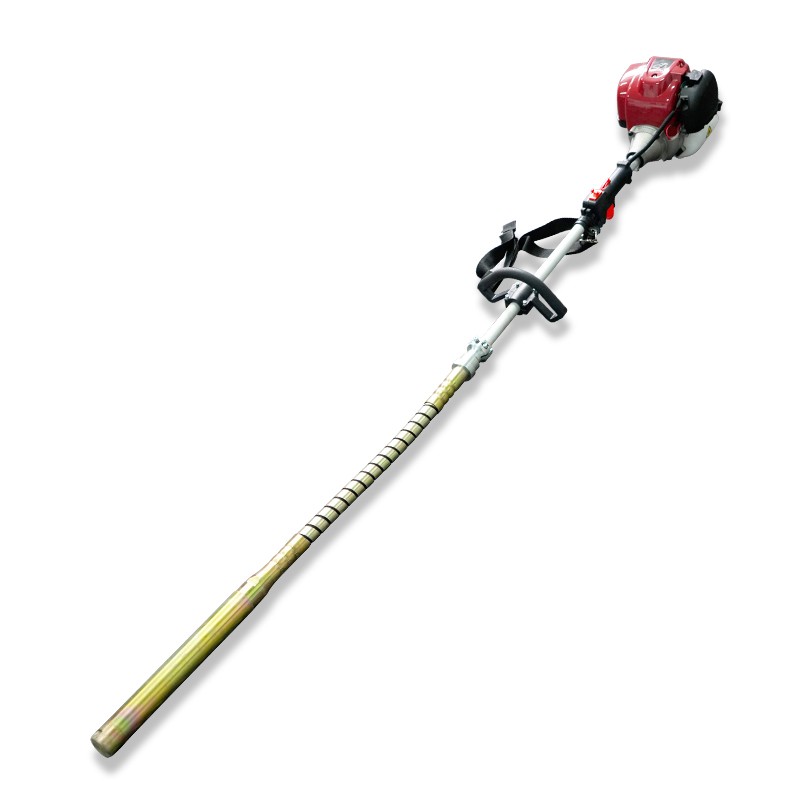

GPV45H
- Product details
Vibrating Head
Eccentric oversized steel and steel end.
5 different diameters of vibrating heads, totally interchangeable.
Double seal prevents the entrance of lubricants.
Flexible Shaft
Standard length from 1.5 to 2.5 meters.
Strengthening with metallic mesh.
Transmission shafts with reinforced ends, provide higher resistance to
those points where the transmission shaft must withstand more intense bending.
Eccentric oversized steel and steel end.
5 different diameters of vibrating heads, totally interchangeable.
Double seal prevents the entrance of lubricants.
Standard length from 1.5 to 2.5 meters.
Strengthening with metallic mesh.
Transmission shafts with reinforced ends, provide higher resistance to
those points where the transmission shaft must withstand more intense bending.
| Model | GPV45H (hand hold) |
| Engine | honda GX35 1.5HP |
| Engine type | 35cc mini 4stroke OHC air-cooled |
| Vibration rod dia mm | 45 |
| Engine speed rpm | 6500 |
| Vibration frequency vib/min | 9000 |
| Rope length m | 1 |
| Packing weight kg | 13 |
| Packing dimension (L*W*H) mm | 1200×290×320 |
