Vibrating Head

Eccentric oversized steel and steel end.
5 different diameters of vibrating heads, totally interchangeable.
Double seal prevents the entrance of lubricants.
Flexible Shaft
Standard length from 1.5 to 2.5 meters.
Strengthening with metallic mesh.
Transmission shafts with reinforced ends, provide higher resistance to
those points where the transmission shaft must withstand more intense bending.

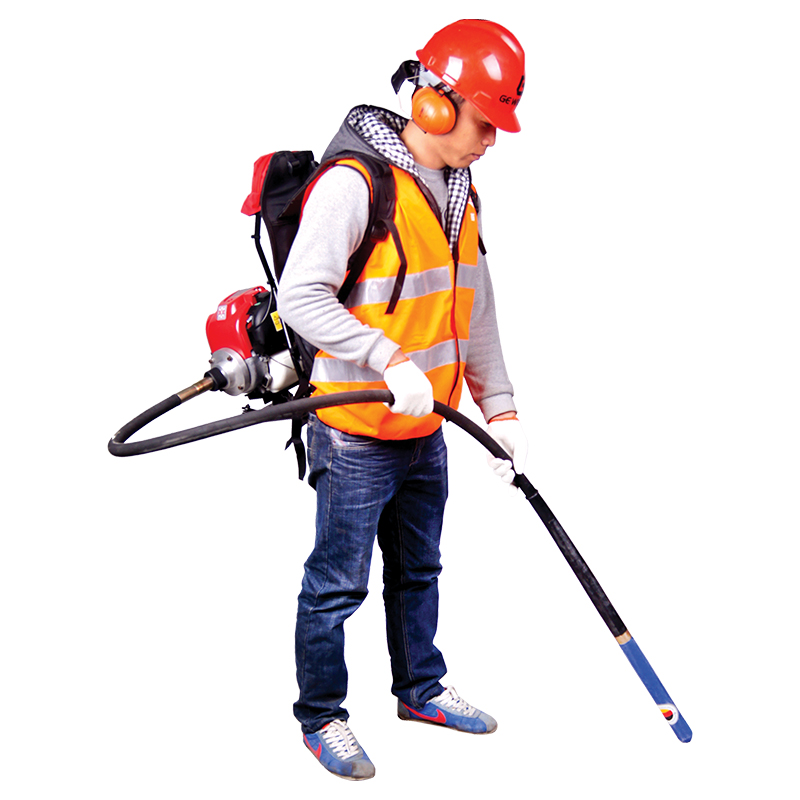

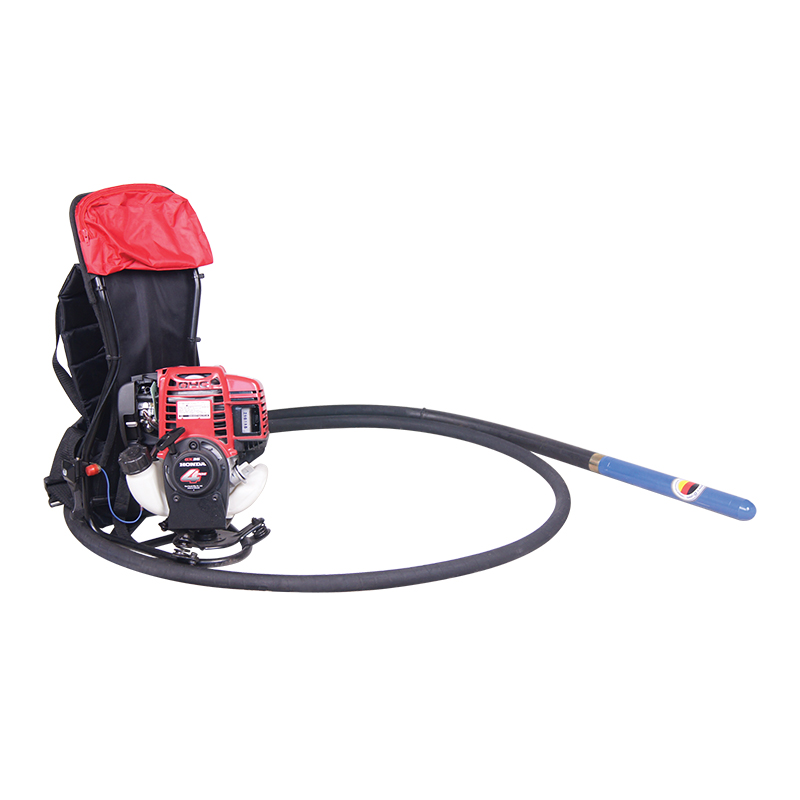

Model	GPV38H (backpack)	GPV45H (hand hold)
Vibration rod dia mm	38	45
Vibration frequency vib/min	9000	9000
Engine speed rpm	6500	6500
Rope length m	3	1
Packing weight kg	13	13
Packing size (L*W*H) mm	600×350×350&750×750×55	1200×290×320
Engine manufacturer	HONDA	HONDA
Engine model	GX35	GX35
Engine type	35cc mini 4stroke OHC air-cooled	35cc mini 4stroke OHC air-cooled
Max.output hp(kw)	1.5 ( 1.1 )	1.5 ( 1.1 )
