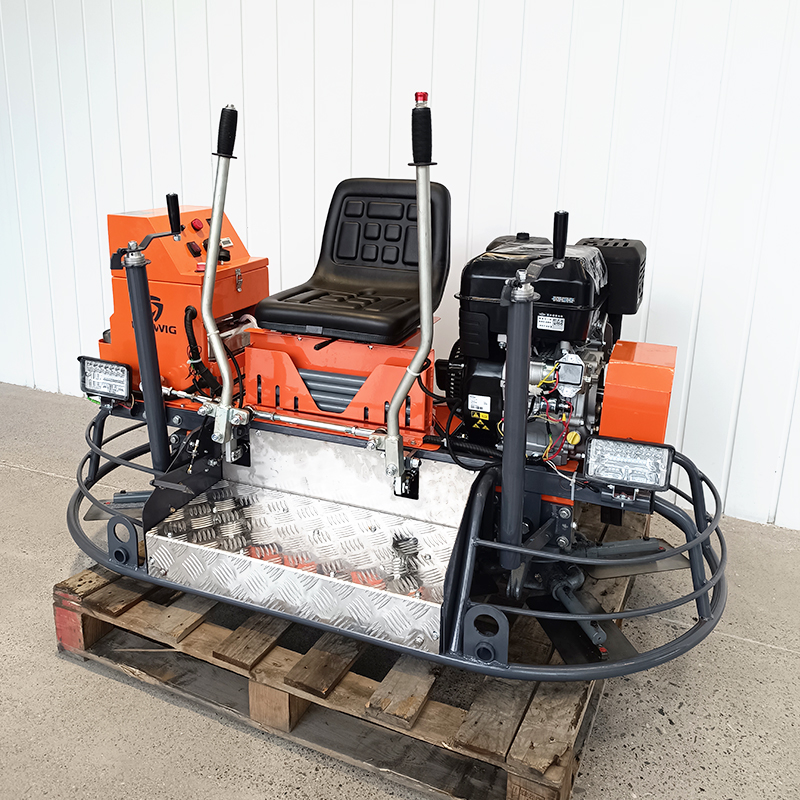

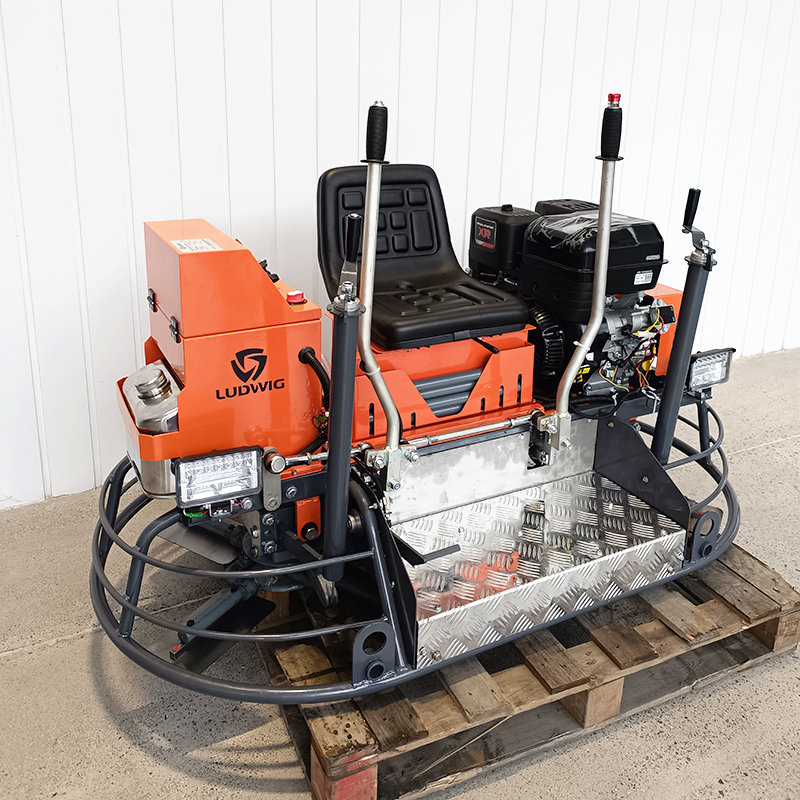

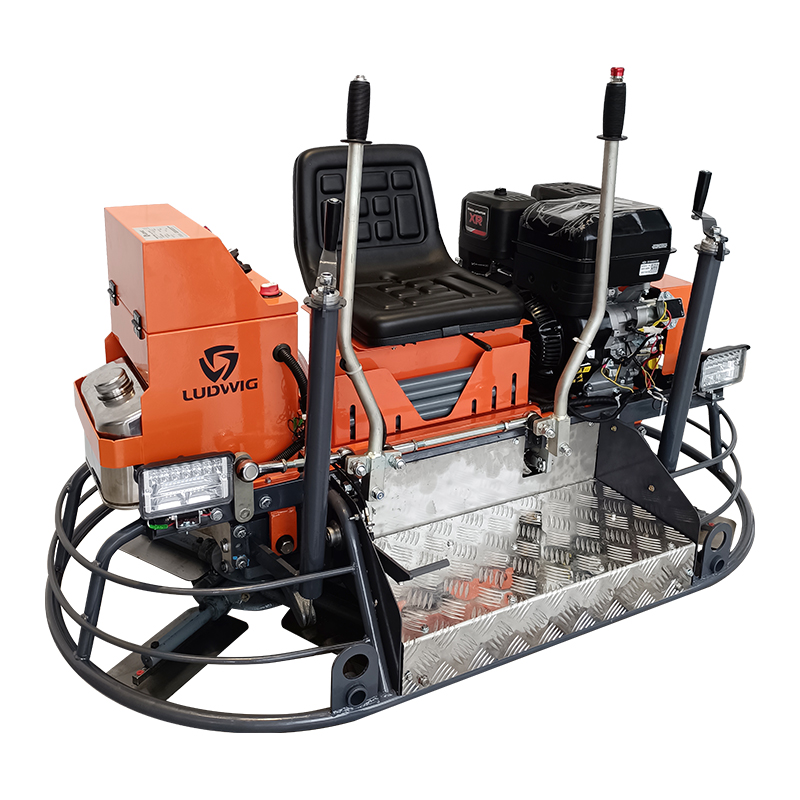

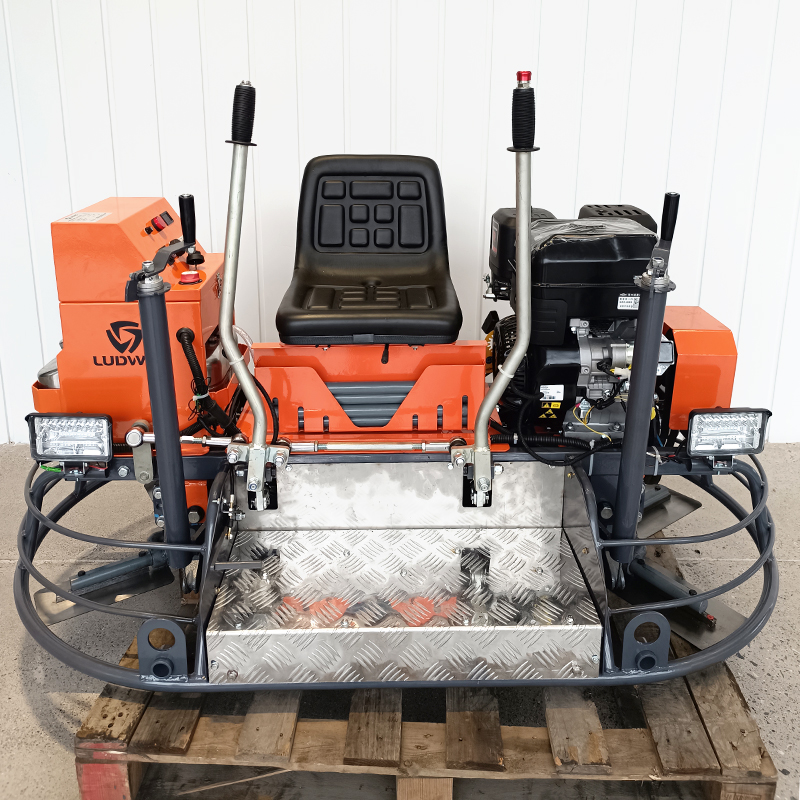

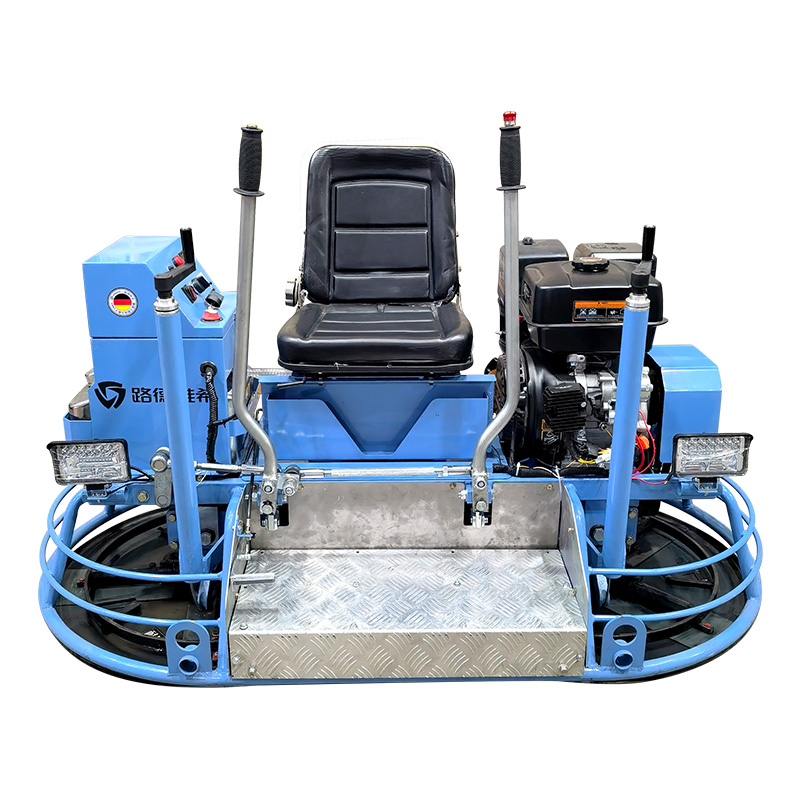

GPT-W830
- Product details
FEATURES:
-Optional engines include the Honda GX390 (13.0hp) or others with power ranging from 10.0hp to 15.0hp.
-Heavy-duty cast aluminum gearbox with high-standard internal components (bearings, turbine, worm) ensures long service life.
-Twin-stick multi-directional steering system provides instant and precise maneuverability.
-Fine hand control for blade pitch allows precise adjustments.
-Adjustable driver's seat for maximum comfort during operation.
-Side-mounted engine lowers the center of gravity, enhancing maneuverability.
-Integrated lights for safe operation in low-light environments.

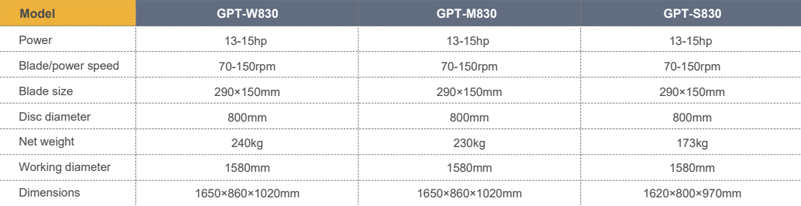

| Model | GPT-W830 | GPT-M830 | GPT-S830 | GPT-W836 | GPT-M836 | GPT-M846 |
| Working diameter mm(inch) | 1580(60) | 1580(60) | 1580(60) | 1910(75) | 1910(75) | 2236(88) |
| Disc diameter mm(inch) | 800(32) | 800(32) | 800(32) | 960(38) | 960(38) | 960(38) |
| Blade/power speed r.p.m | 70-150 | 70-150 | 70-150 | 70-150 | 70-150 | 0-180 |
| Blade size mm | 290×150 | 290×150 | 290×150 | 355×150 | 355×150 | 455×150 |
| Weight kg | 240 | 230 | 173 | 350 | 350 | 490 |
| Packing size mm | 1650×860×1020 | 1650×860×1020 | 1620×800×970 | 1960×1080×1290 | 1960×1080×1290 | 2400×1200×1420 |
| Fuel | gasoline | gasoline | gasoline | gasoline | gasoline | gasoline |
| Max.output hp | 13-15 | 13-15 | 13-15 | 21-23 | 21-23 | 35 |
