- HOME > Construction Machinery > Plate Compactor
GVC90
- Product details

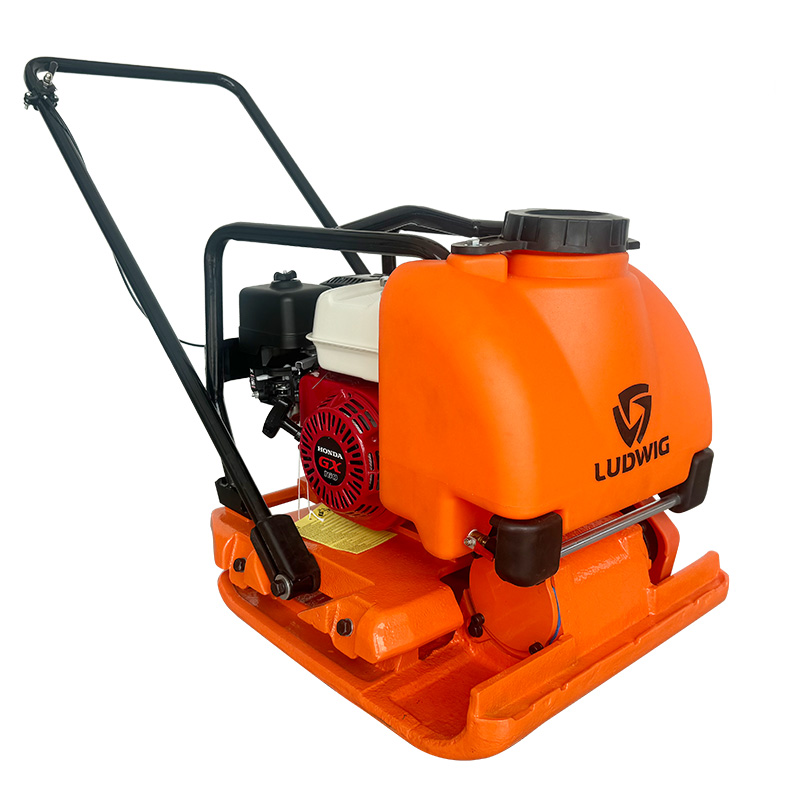

Plate Compactor with Special Ductile Compaction Base Plate
●Highly durable special ductile compaction base plate.
●Self lubricated vibrator system : patented.
●VAS handle to reduce hand-arm vibration(option).
●Water tank to shut out dust(13L, option).
●Single-point lifting hooks for easy loading and unloading.
●Cart of revolving type(option).
●Rubber mat for interlocking block (option).
| Model | GVC90 |
| Plate size(mm) | 525*500 |
| Weight(kg) | 91 |
| Vibrating frequency (Hz/v.p.m) | 100 (6000) |
| Centrifugal force(max) (kN/kgf) | 15.0 (1530) |
| Max.traveling speed (m/min) | 25 |
| Max.limited gradeability (%/) | 35 |
| Engine Model | GX160 |
| Brand | Honda |
| Max.output | 5.5HP |
| Dimension (mm) | 1100*560*825 |
