- LD1500S
- HOME > Construction Machinery > Concrete Cutter（Floor Saw）

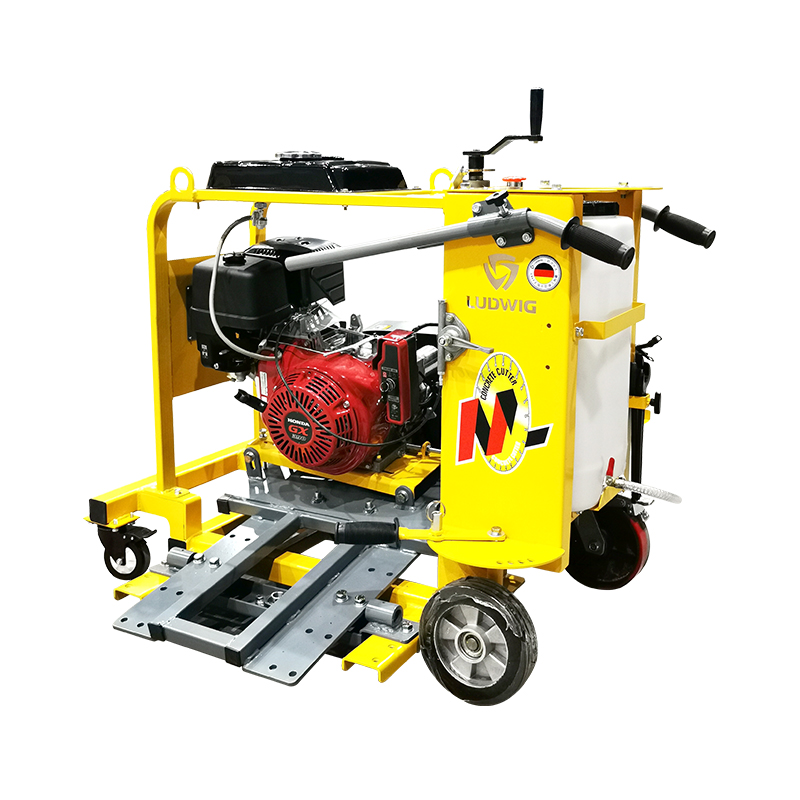

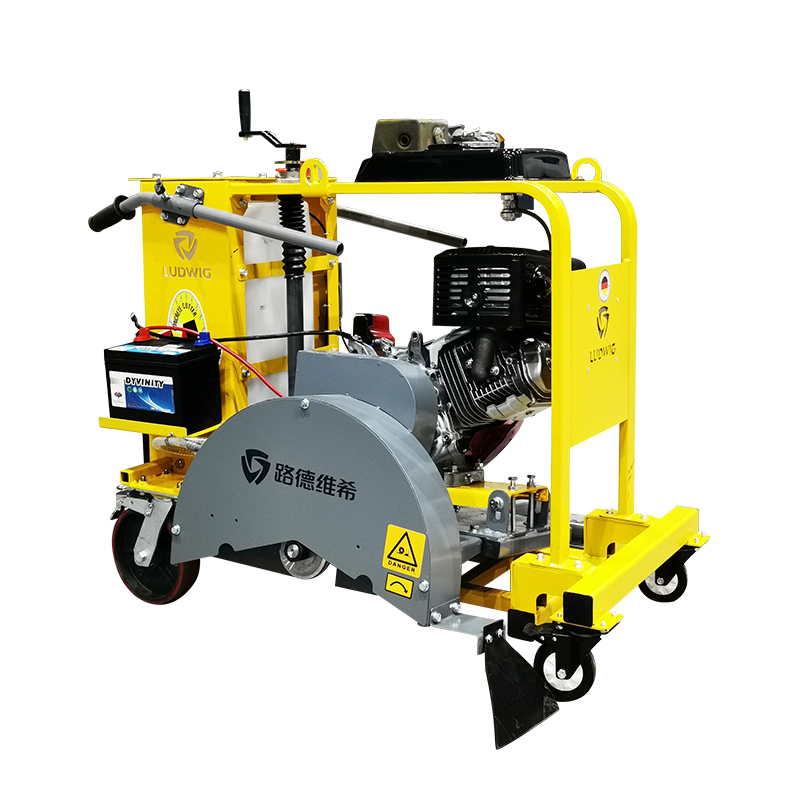

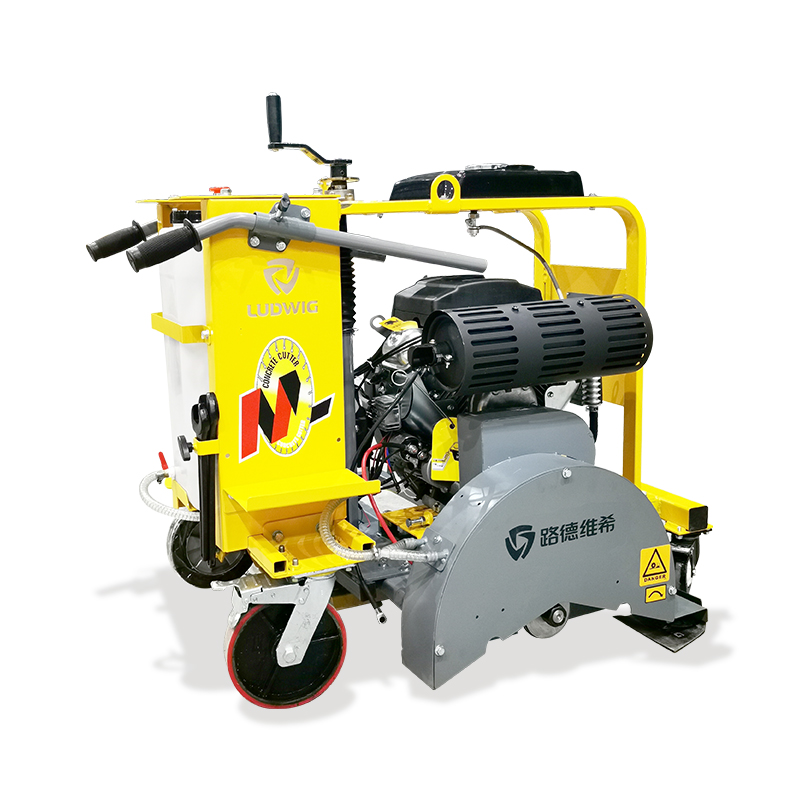

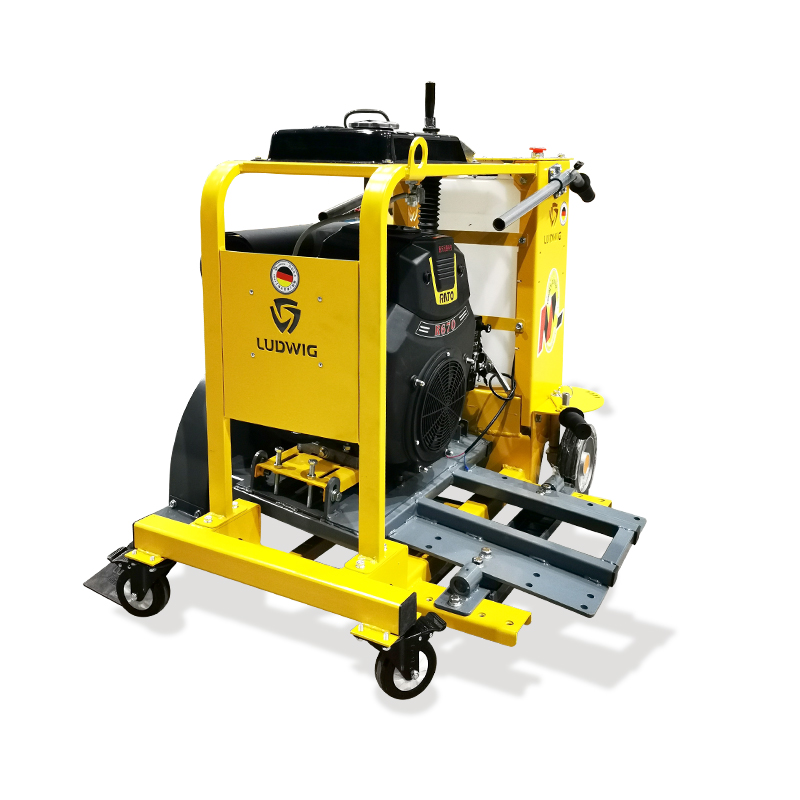

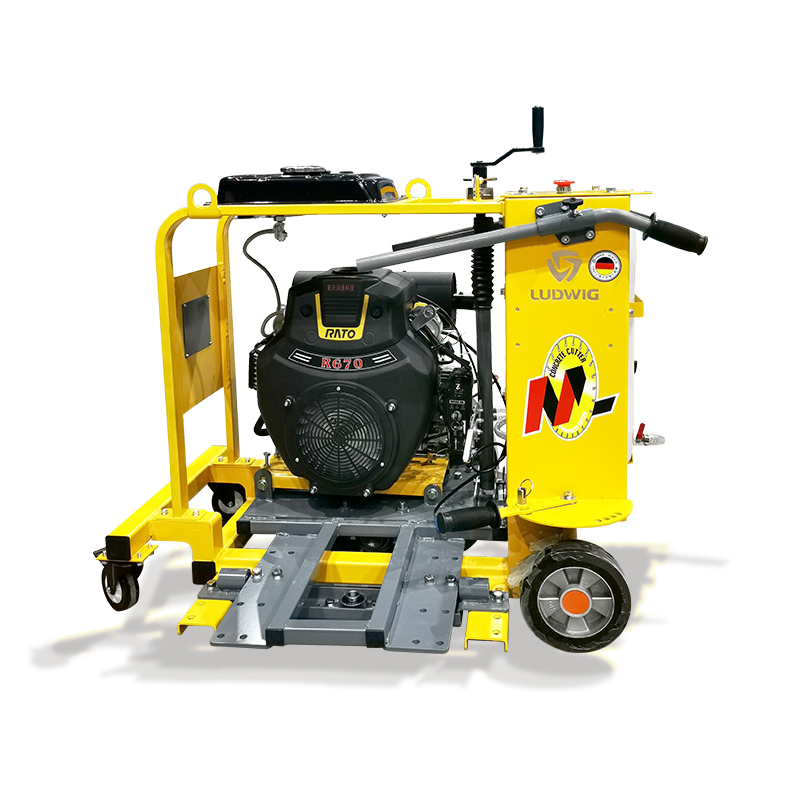

LD1500S
- Product details

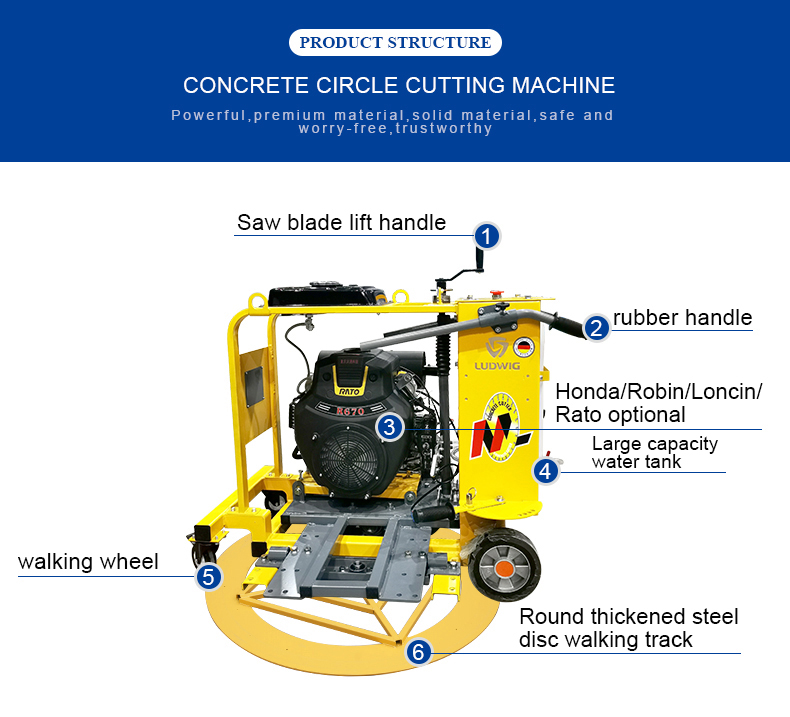

FEATURES:

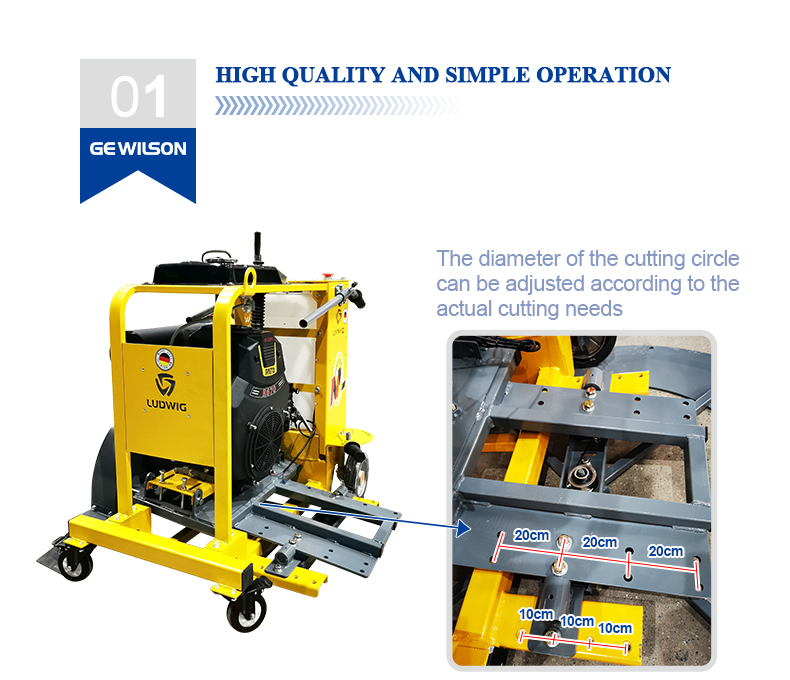

-Adjustable cutting circle diameters.
-Maximum cutting depth of 150mm (6 inches).

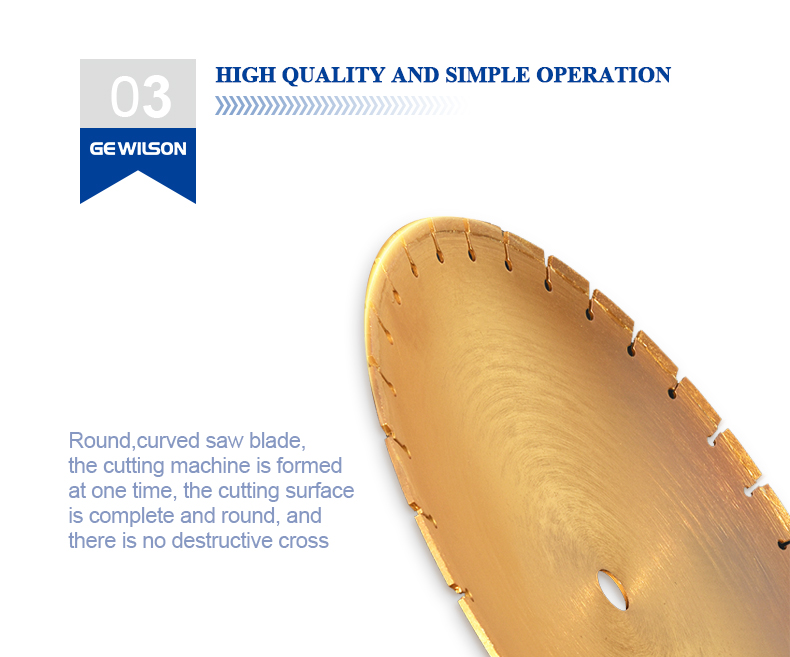

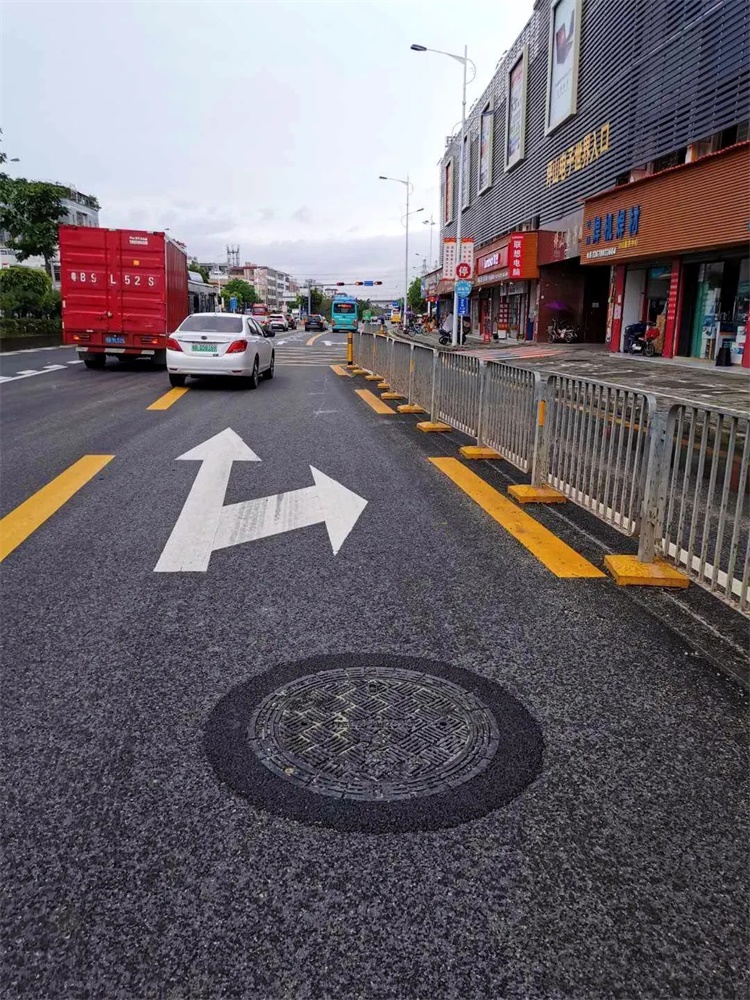

-Straight-line cutting with a flat diamond circular saw blade; circular-line cutting with a parabolic diamond circular saw blade.
-Rotating handle for easy cutting depth control.
-Reinforced blade shaft with high-quality bearings ensures precise cutting.

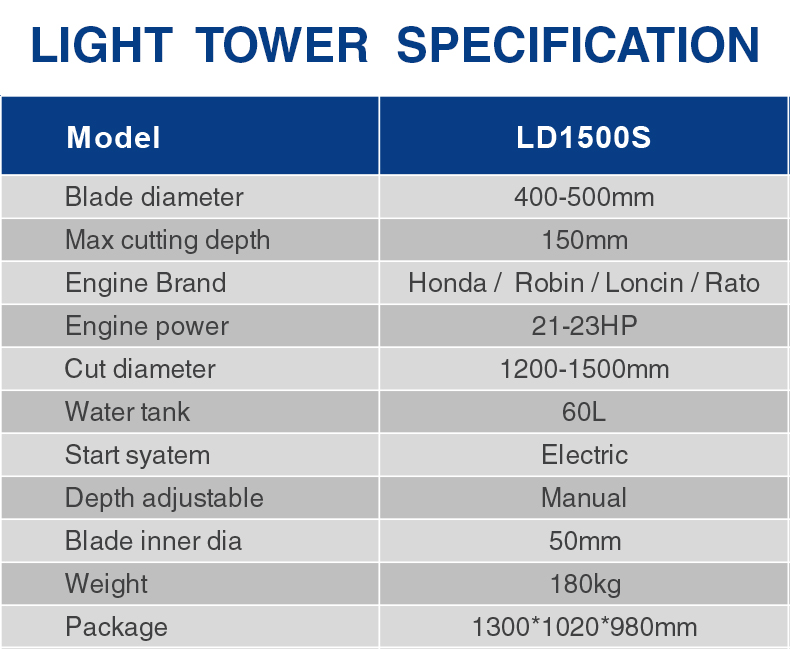

| Model | GFS1500 | GFS1500S |
| Blade diameter mm | 400-500 | 400-500 |
| Max.Cutting depth mm | 150 | 150 |
| Blade arbor size mm | 50 | 50 |
| Cut diameter mm | Φ1200-Φ1500 | Φ1200-Φ1500 |
| Depth adjustment |
Handle rotation
|
Handle rotation
|
| Driving |
Manual Push
|
Manual Push
|
| Water tank capacity L | 35 | 35 |
| Water spray system |
Gravity-fed
|
Gravity-fed
|
| Shipment dimension mm | 1300x1020x980 | 1300x1020x980 |
| Weight kg | 160 | 180 |
| Engine manufacturer | HONDA | HONDA |
| Engine model | GX390 | GX690 |
| Max.output hp (kw) | 13(9.6) | 22.1 (16.5 ) |
