- GFS500E
- HOME > Construction Machinery > Concrete Cutter（Floor Saw）

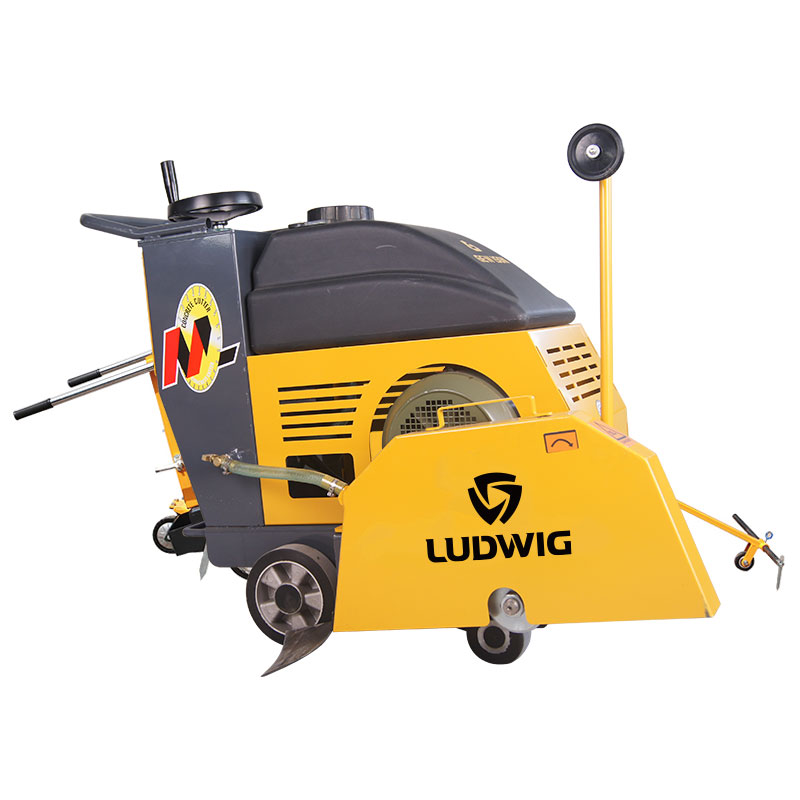

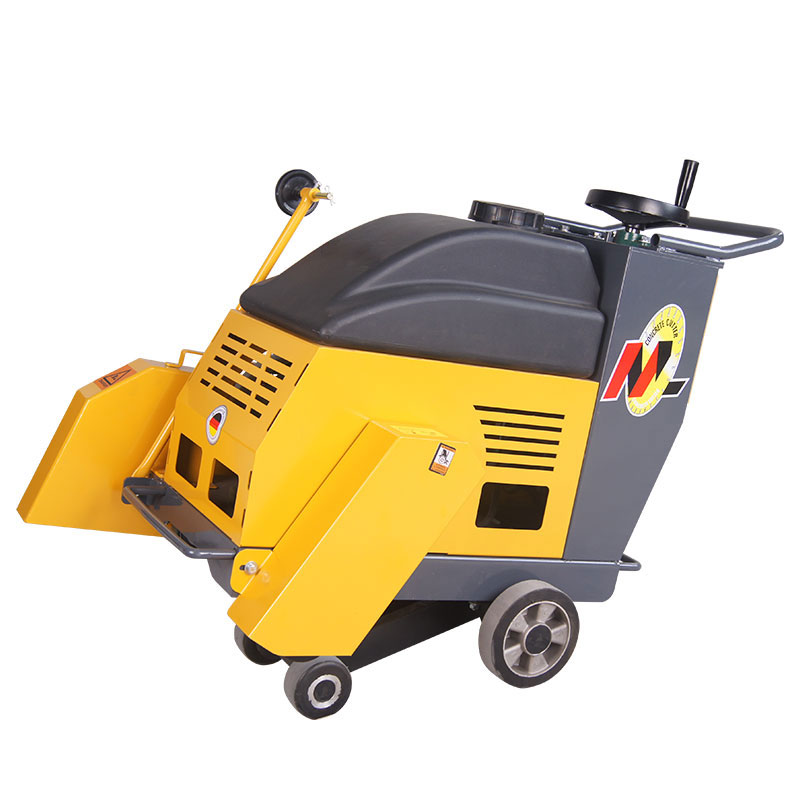

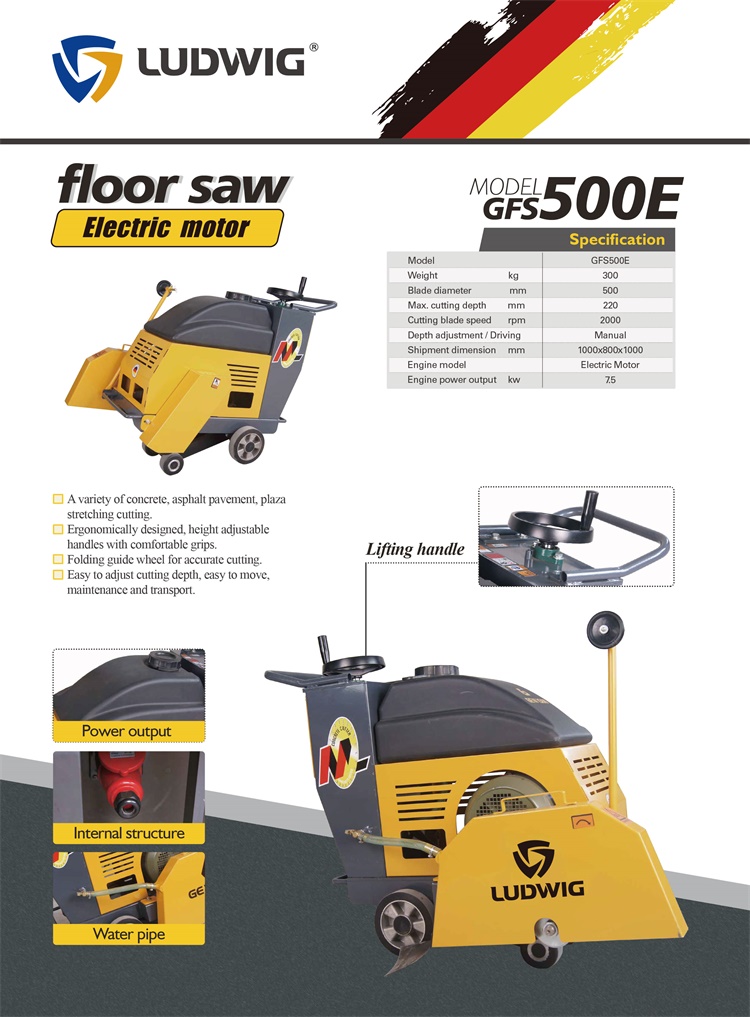

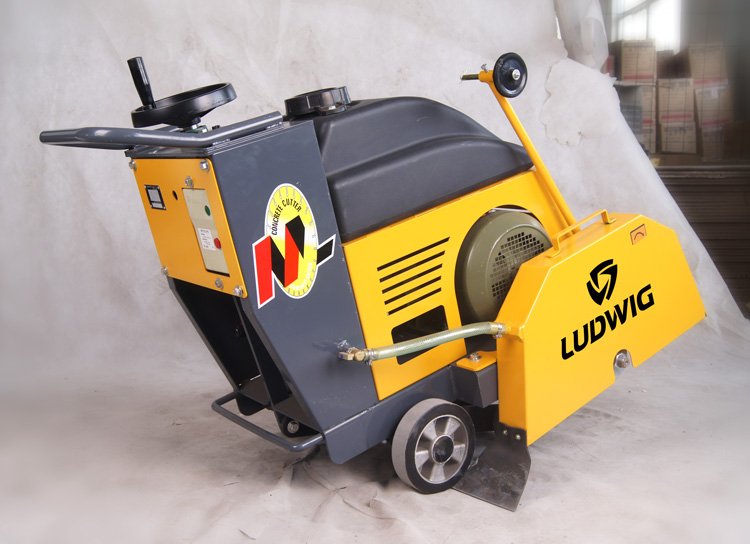

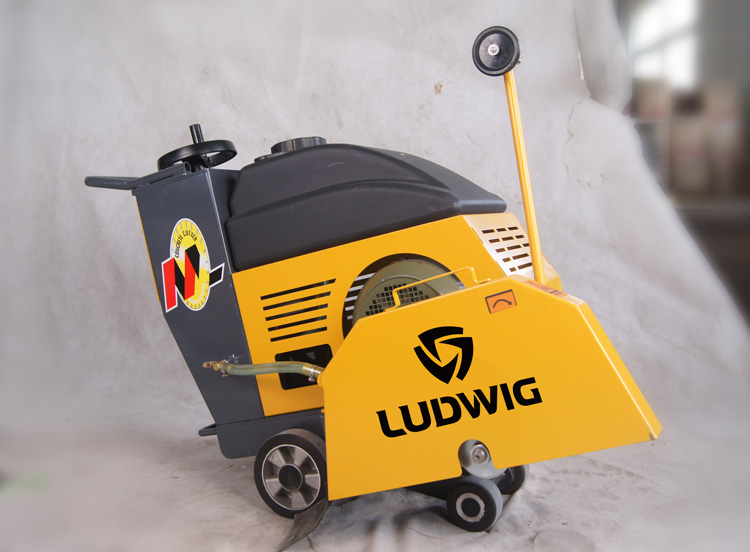

GFS500E
- Product details
FEATURES:
-Designed for cutting concrete or asphalt pavement.
-Powered by an electric motor for powerful performance and reduced maintenance.
-Foldable guide wheel for precise cutting.
-Easy adjustment of cutting depth, movement, maintenance, and transportation.
-Model GFS500E is hand-push type, while models GFS700E, GFS1000E, and GFS1200E are self-propelled.
| Model | GFS500E | GFS700E | GFS1000E |
| Blade diameter mm | 500 | 700 | 1000 |
| Max.Cutting depth mm | 200 | 270 | 420 |
| Blade arbor size mm | 25.4/50 | 25.4/50 | 25.4/50 |
| Depth adjustment |
Handle rotation |
Handle rotation |
Handle rotation |
| Driving |
Manual Push |
Manual Push |
Manual Push |
| Water tank capacity L | 35 | 35 | 35 |
| Water spray system |
Gravity-fed |
Gravity-fed |
Gravity-fed |
| Shipment dimension mm | 1000x800x1000 | 1100x860x1100 | 1100x860x1100 |
| Weight kg | 160 | 310 | 365 |
| Engine type |
Electric Motor |
Electric Motor |
Electric Motor |
| Rated power KW | 7.5 | 11 | 22 |
| Working voltage V | 380 | 380 | 380 |
