- GFS1200
- HOME > Construction Machinery > Concrete Cutter（Floor Saw）

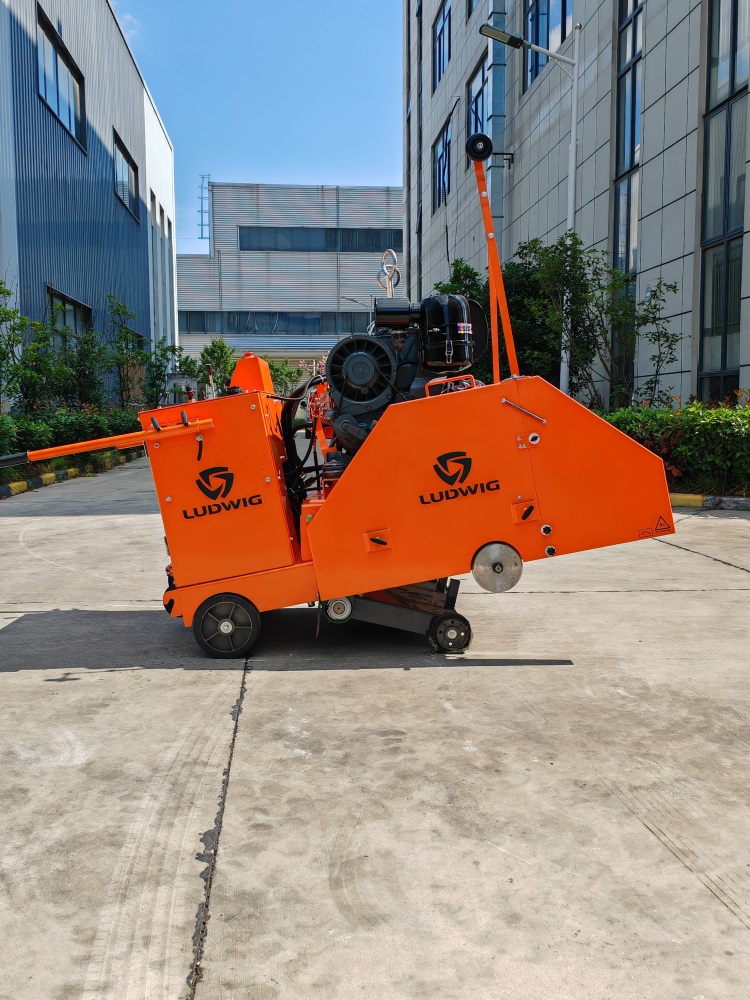

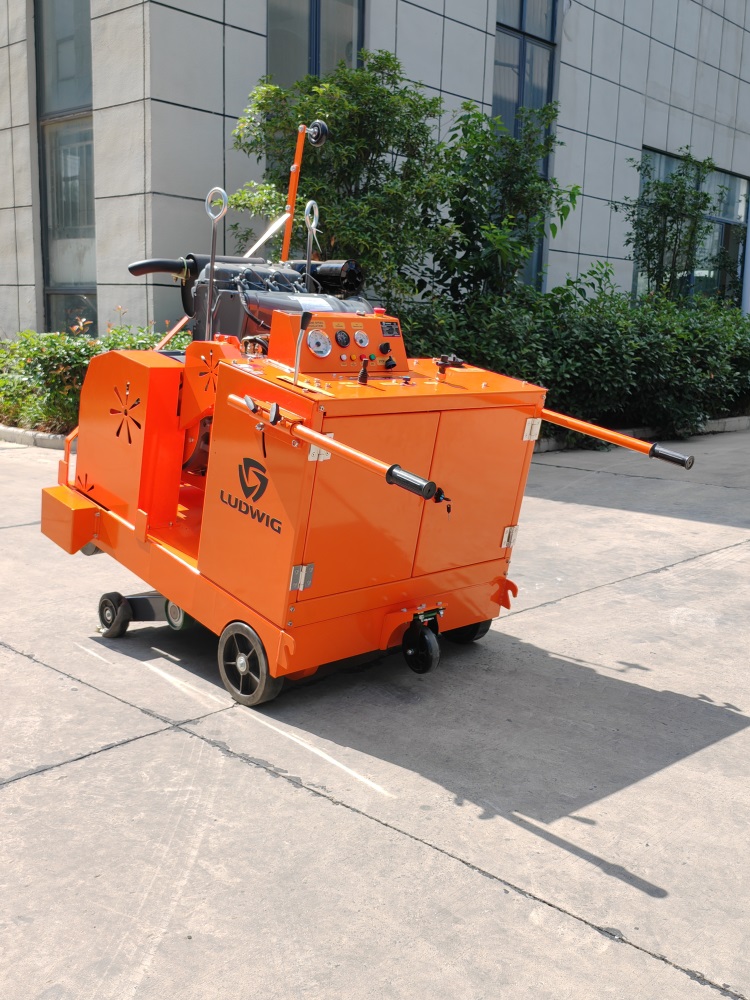

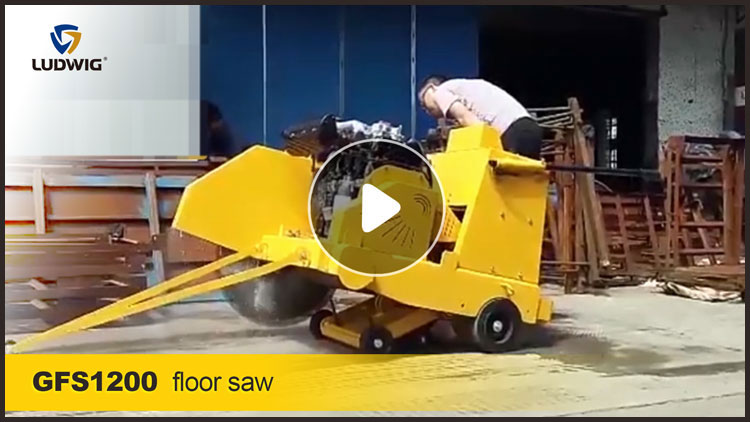

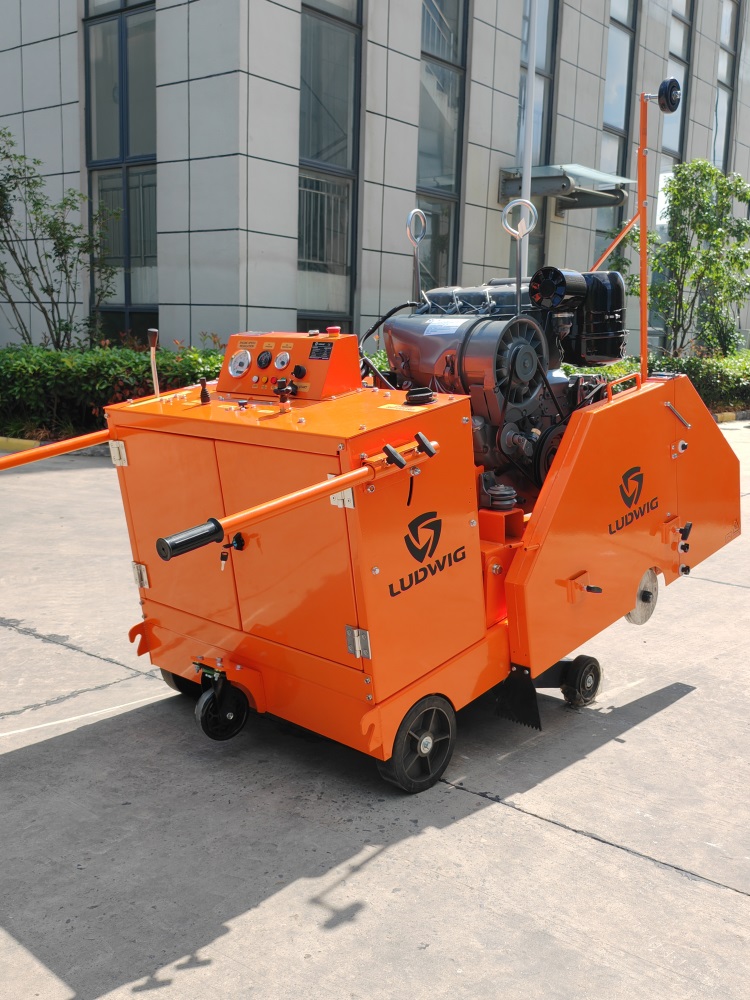

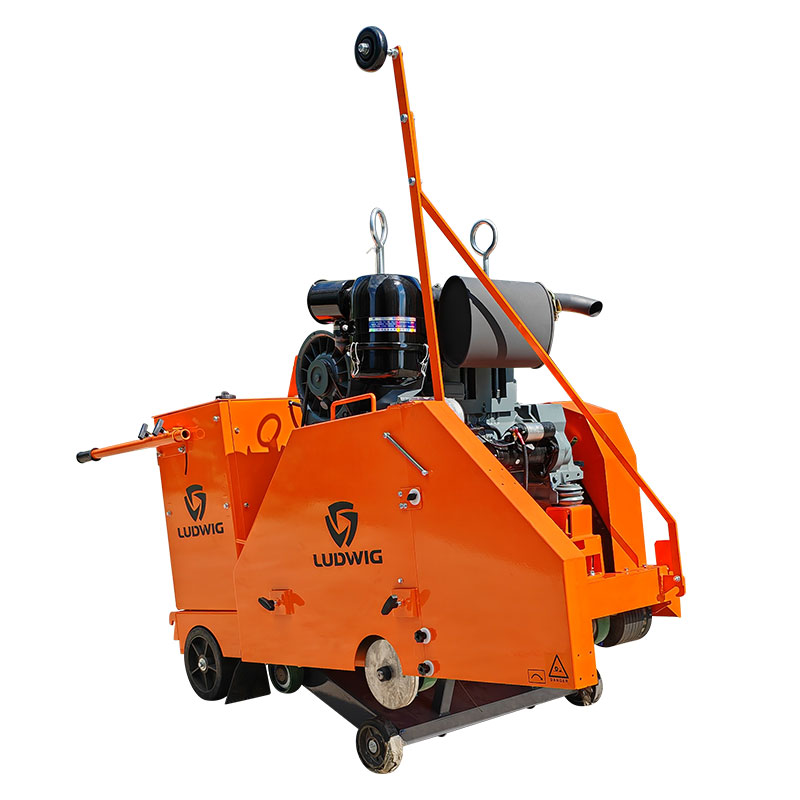

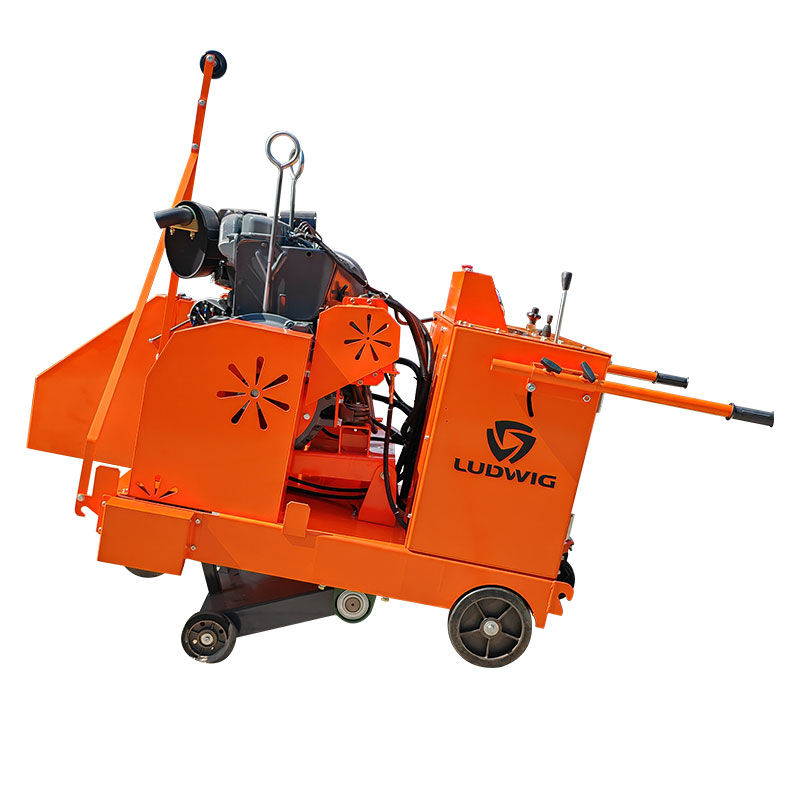

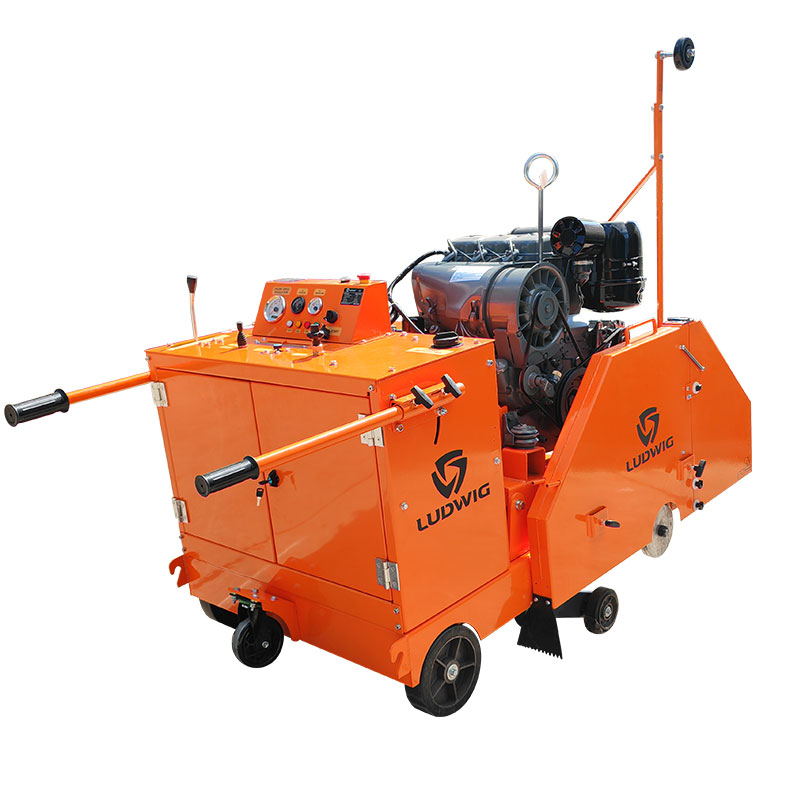

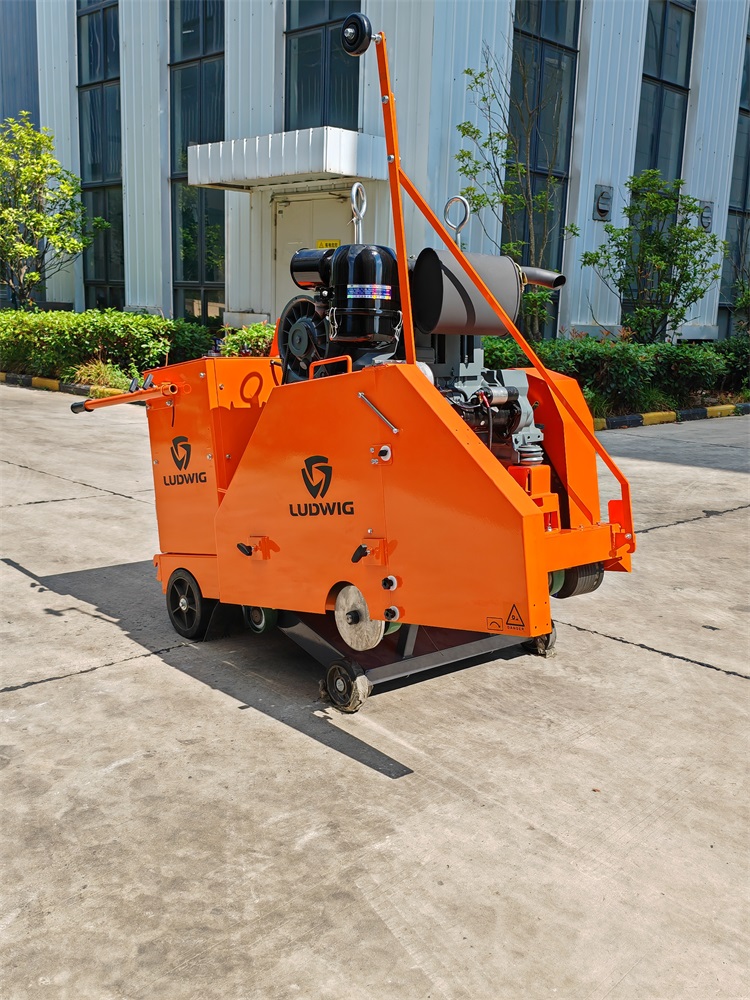

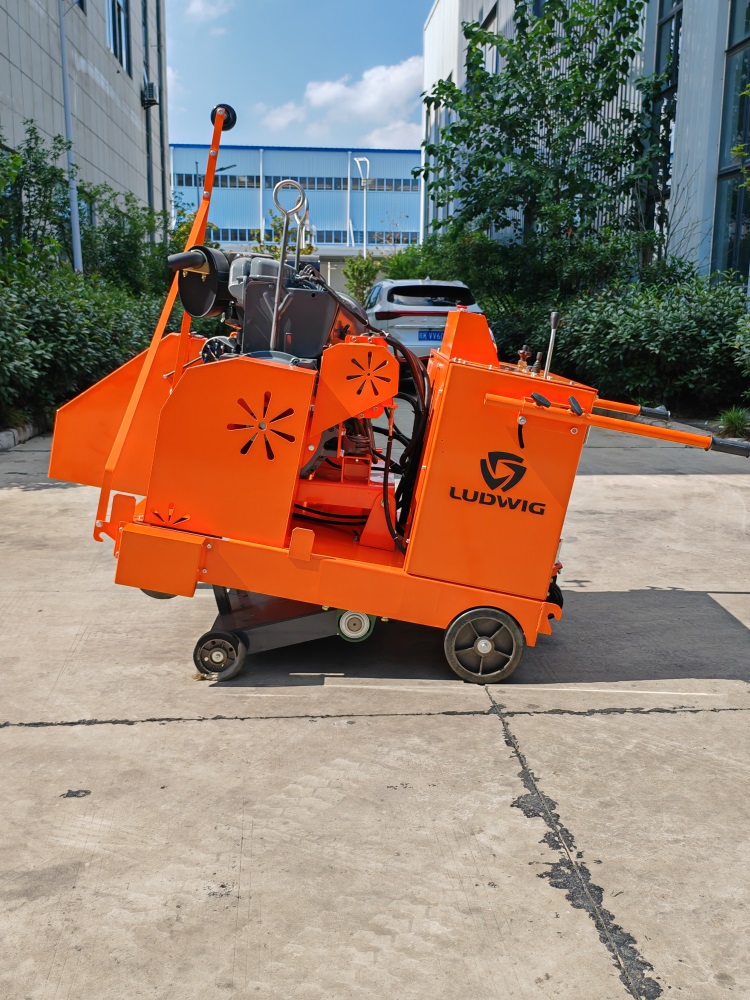

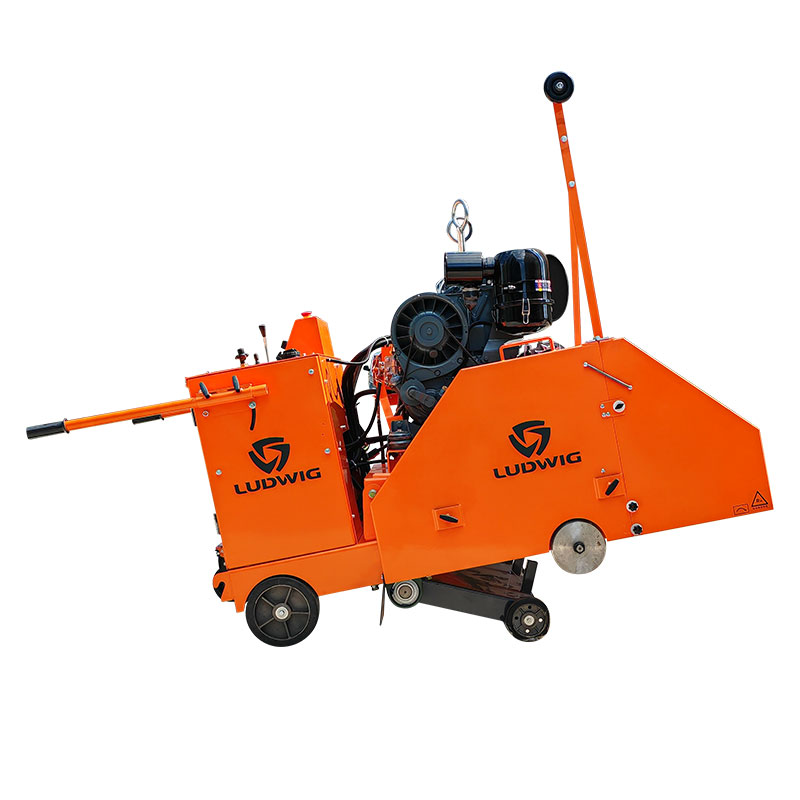

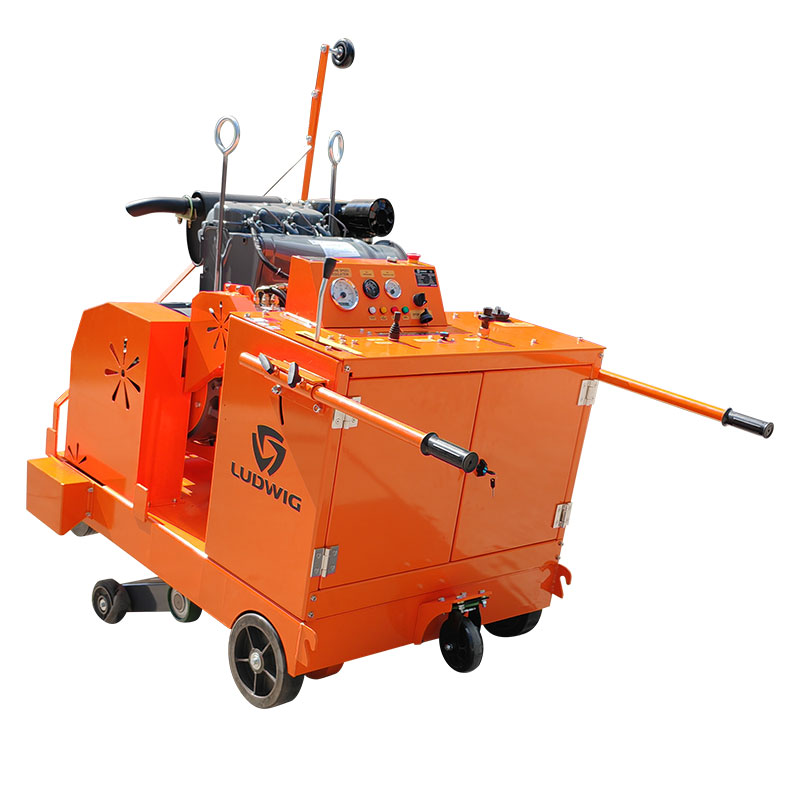

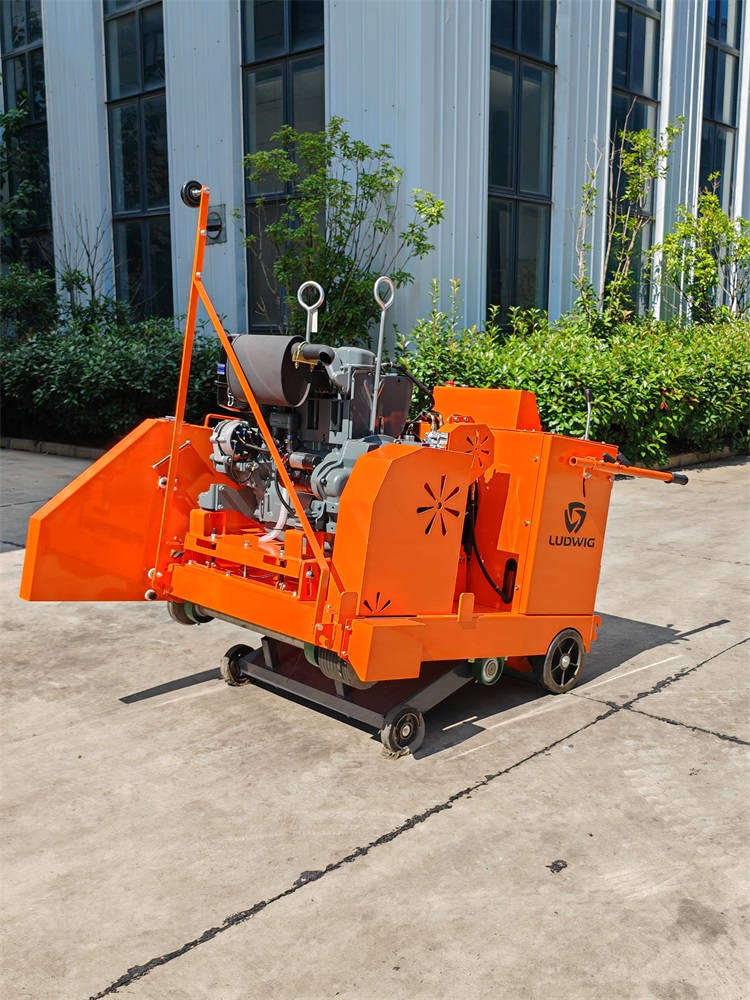

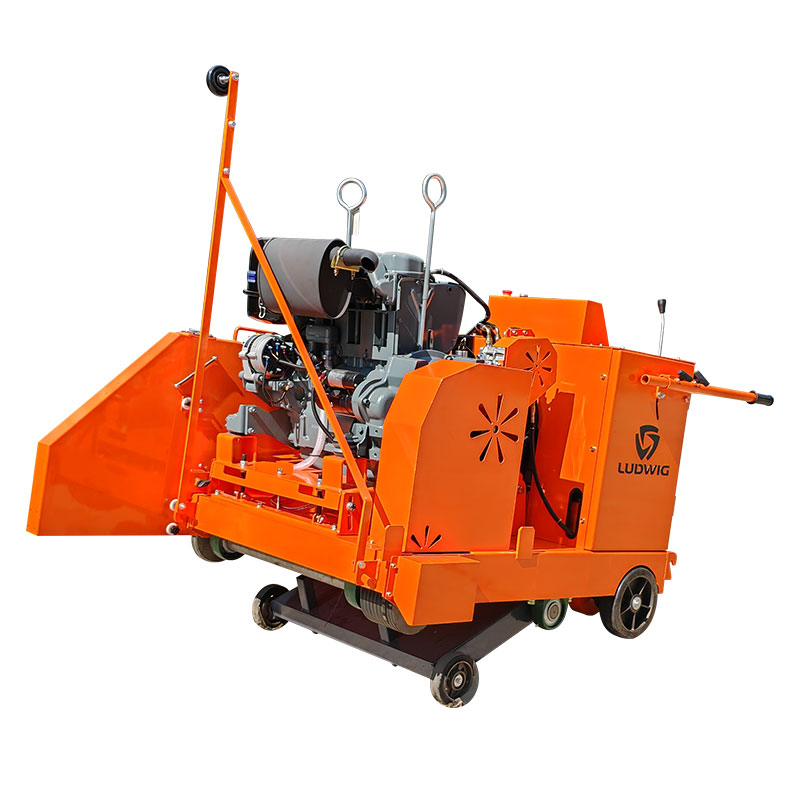

GFS1200
- Product details
FEATURES:
Optional 3-cylinder air-cooled diesel engine.
Maximum cutting depth of 400mm (16 inches).
Full hydraulic drive system for precise cutting depth control.
Automatic walking system significantly reduces operator fatigue.
Precise guide wheel ensures straight cutting.
Reinforced blade shaft with high-quality bearings for accurate cutting.
| Model | GFS1200 |
| Blade diameter mm | 1000-1200 |
| Max.Cutting depth mm | 500 |
| Driving |
Hydraulic self-propelled
|
| Driving pump |
Plunger pump
|
| Driving hydraulic motor |
Gerotor motor
|
| Working pressure mpa | 20 |
| Lifting mode |
Oil cylinder
|
| Working pressure mpa | 16 |
| Water tank capacity L | 20 |
| Water spray system |
Gravity-fed
|
| Shipment dimension mm | 1735x1020x1710 |
| Weight kg | 760 |
| Fuel | Diesel |
| Max.output hp | 40 |
