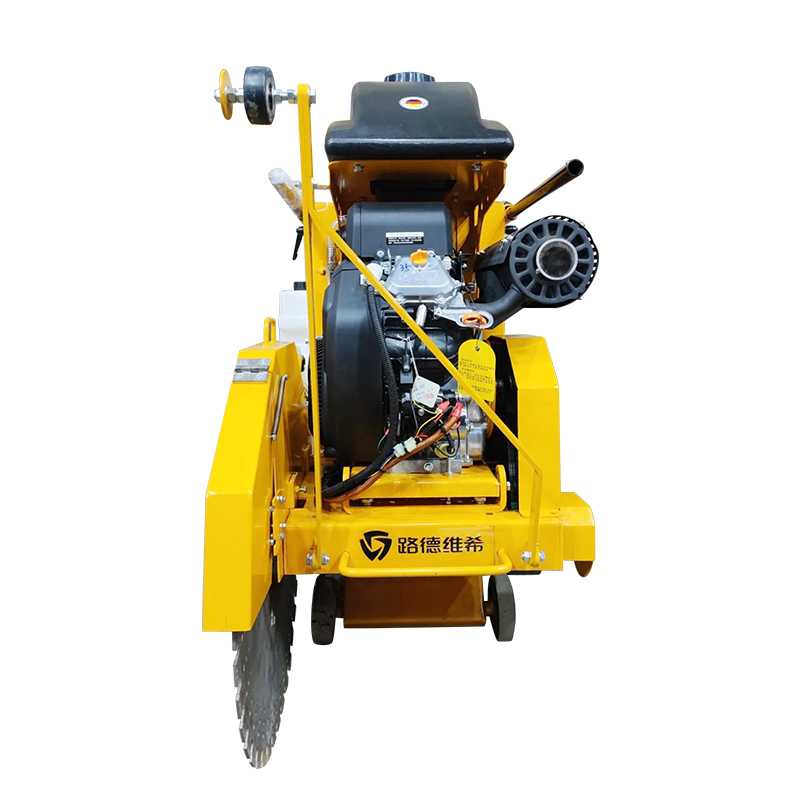

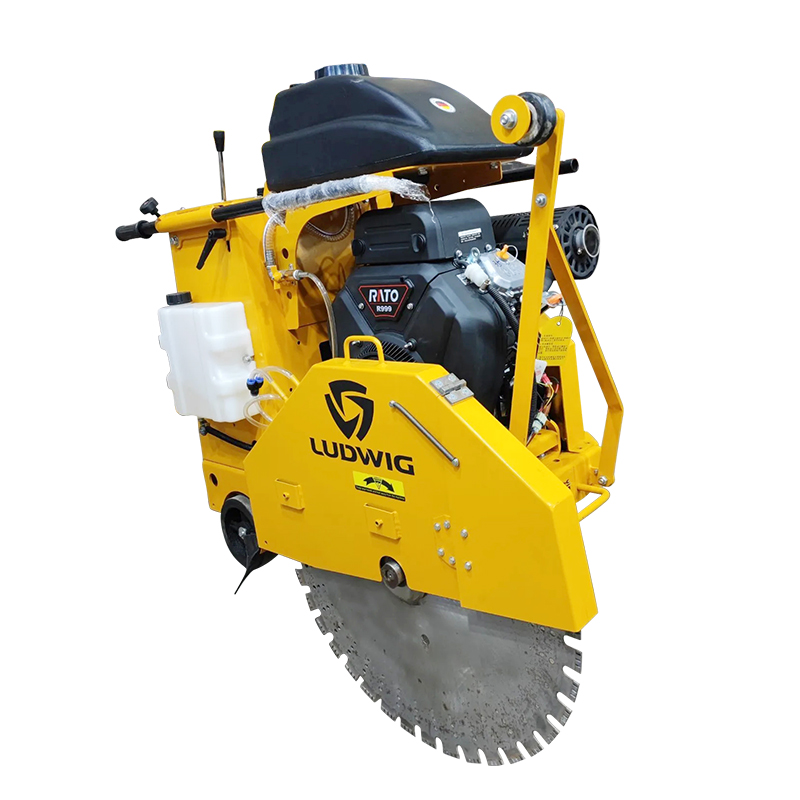

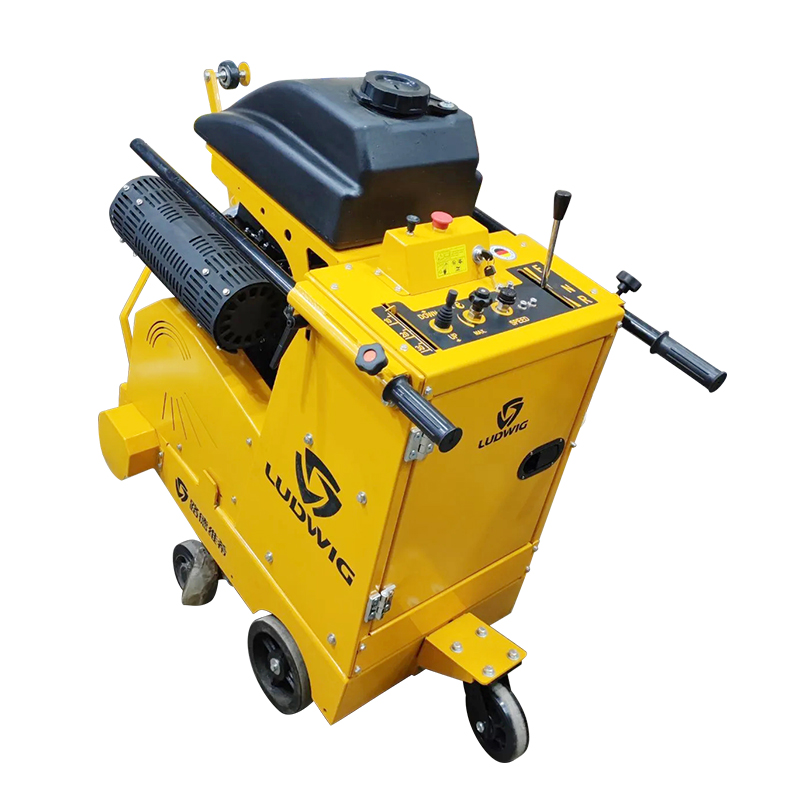

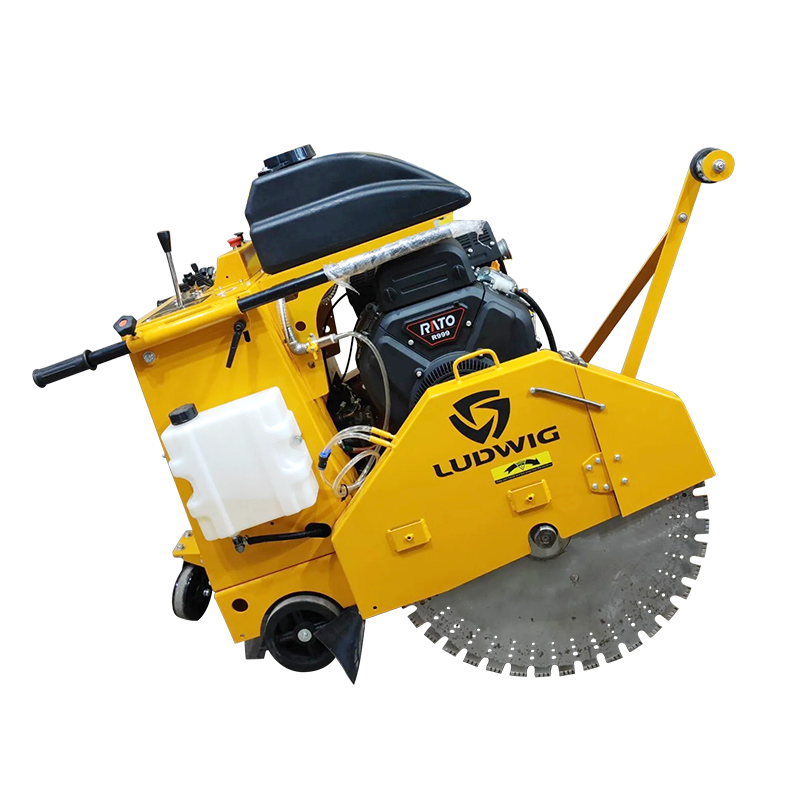

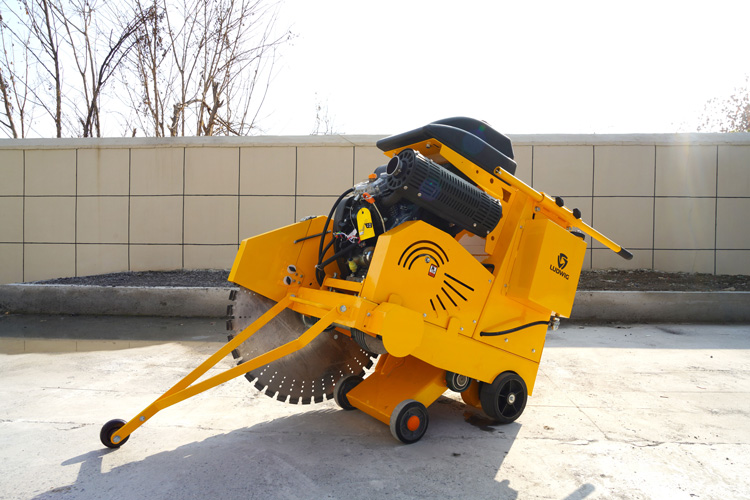

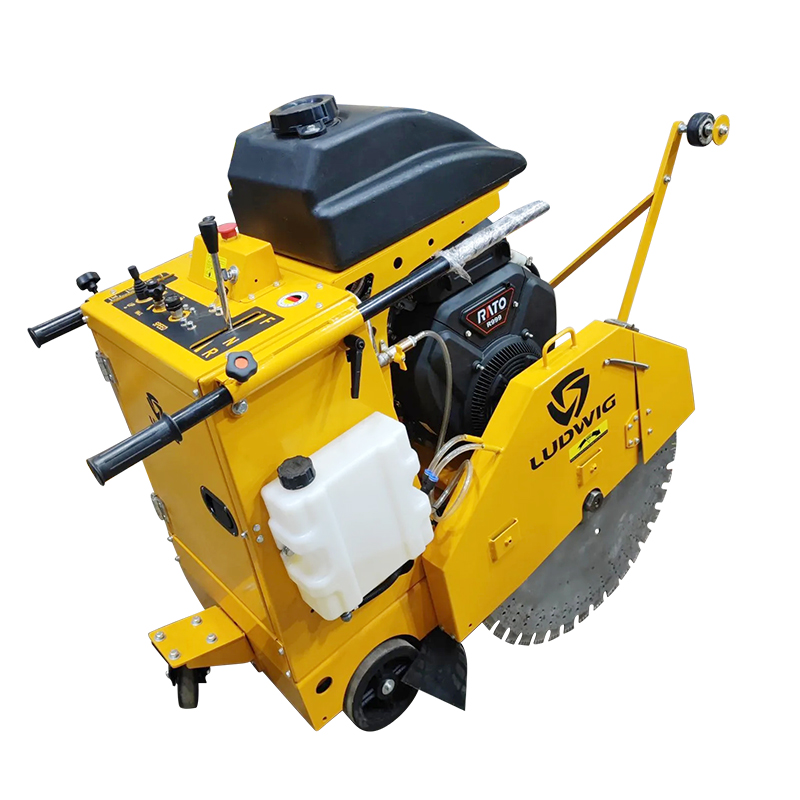

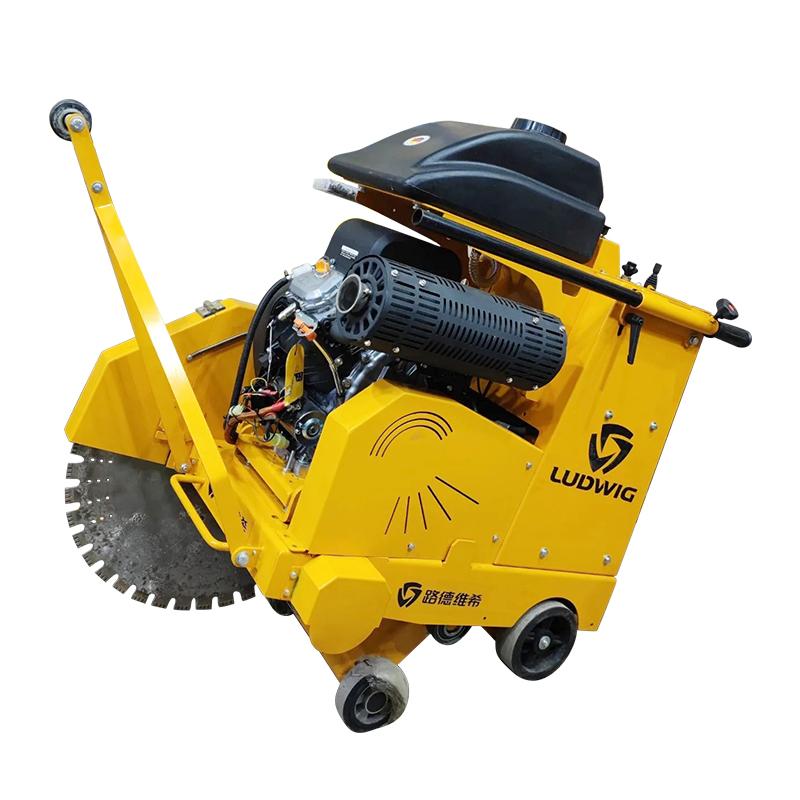

GFS800
- Product details
FEATURES:

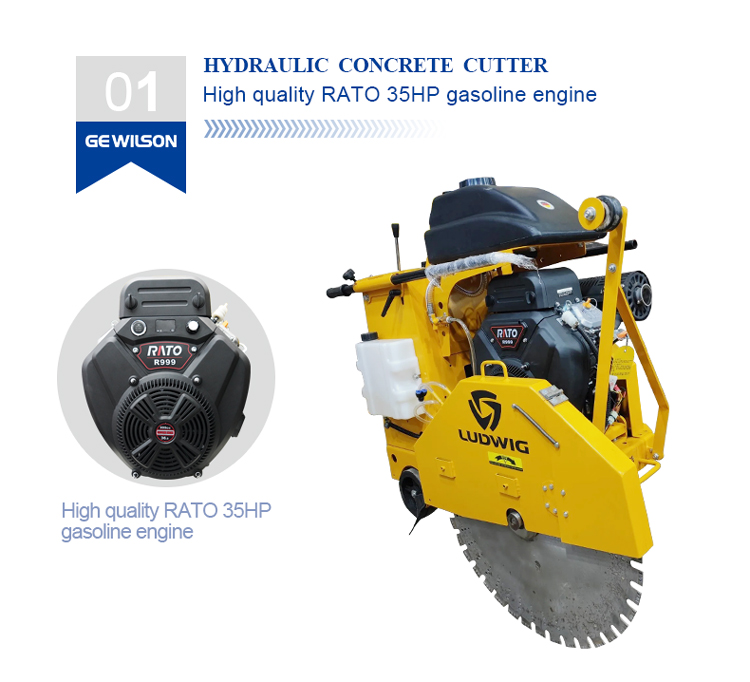

-Optional RATO gasoline engine V-twin model R999 (33.5 hp).
-Maximum cutting depth of 350mm (14 inches).

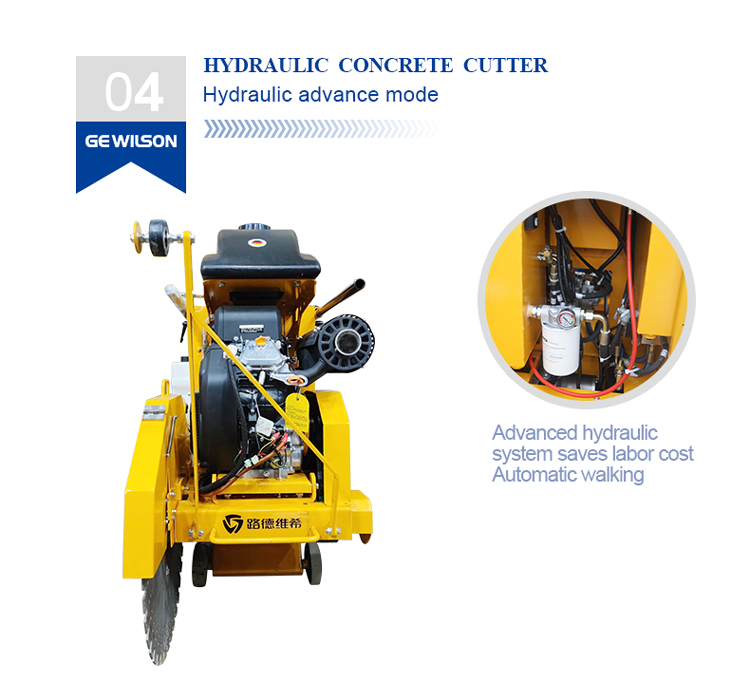

-Full hydraulic drive system for precise cutting depth control.
-Automatic walking system significantly reduces operator fatigue.

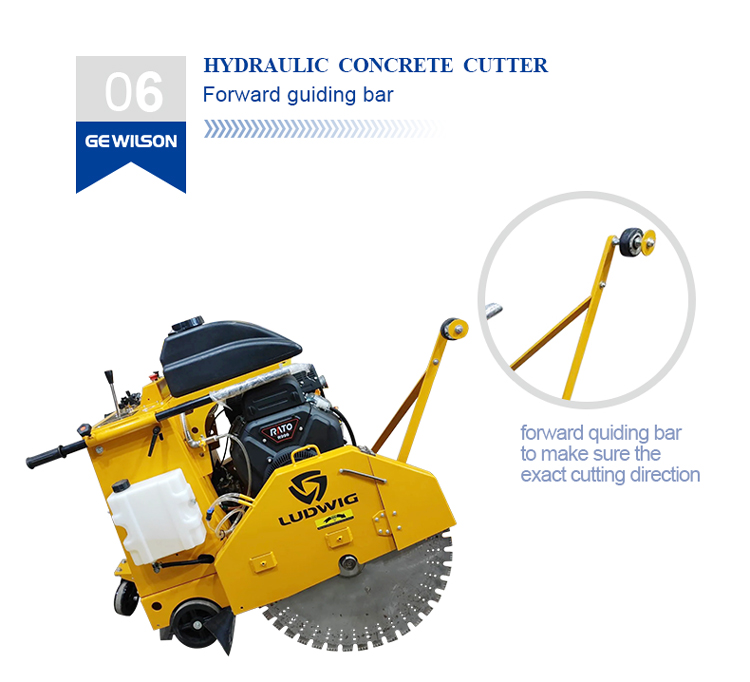

-Precise guide wheel ensures straight cutting.
-Reinforced blade shaft with high-quality bearings for accurate cutting.
| Model | GFS800 |

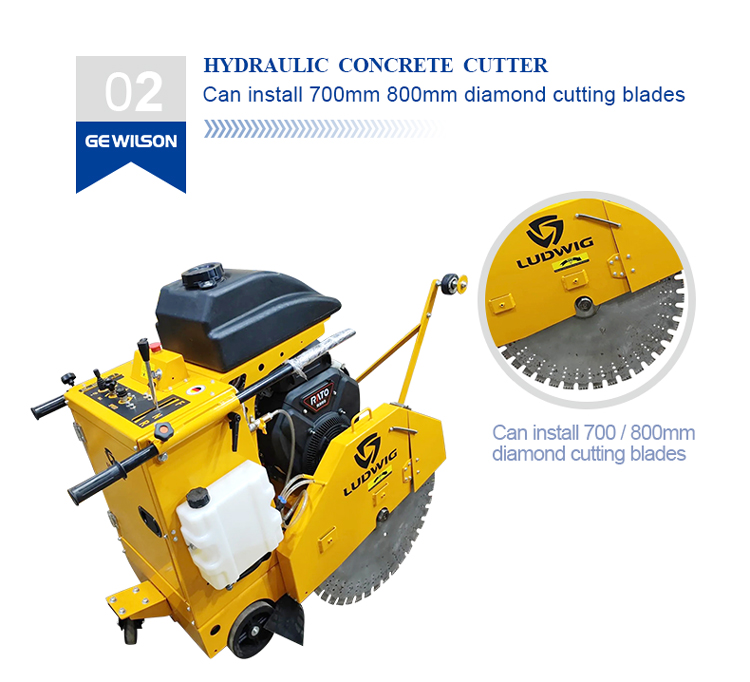

| Blade diameter mm | 800 |
| Max.Cutting depth mm | 350 |
| Driving |
Hydraulic self-propelled
|
| Driving pump |
Plunger pump
|
| Driving hydraulic motor |
Gerotor motor
|
| Working pressure mpa | 20 |
| Lifting mode |
Oil cylinder
|
| Working pressure mpa | 16 |
| Water tank capacity L | 25 |
| Water spray system |
Gravity-fed
|
| Shipment dimension mm | 1300x840x1280 |
| Weight kg | 316 |
| Fuel | Gasoline/Diesel |
| Max.output hp | 35 |
