- GVC80
- HOME > Construction Machinery > Plate Compactor

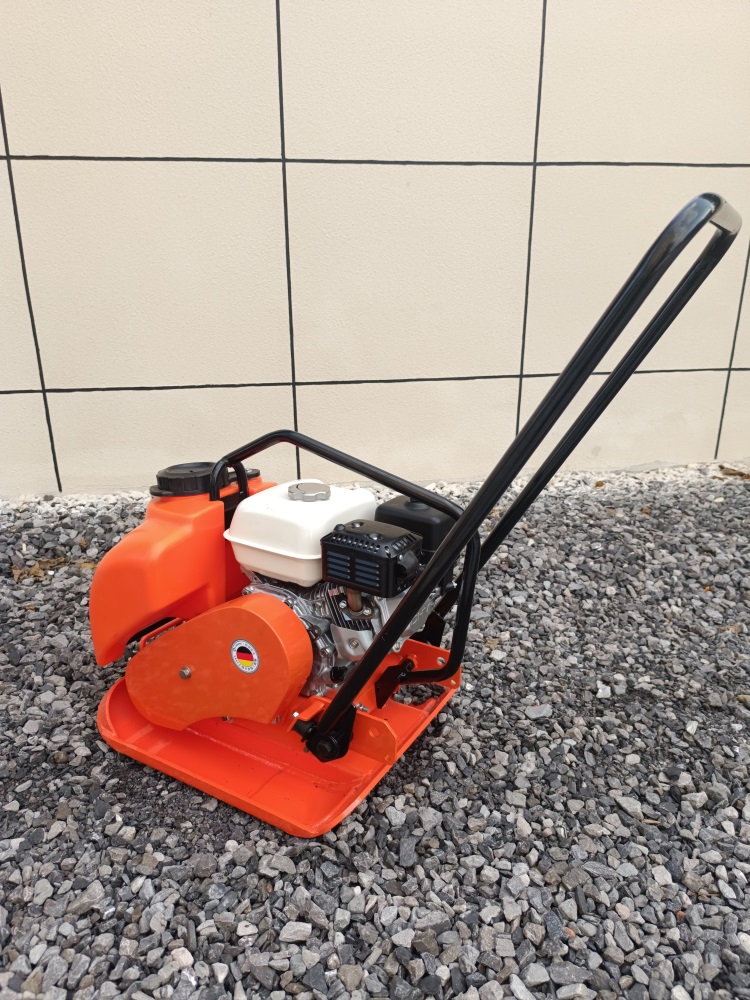

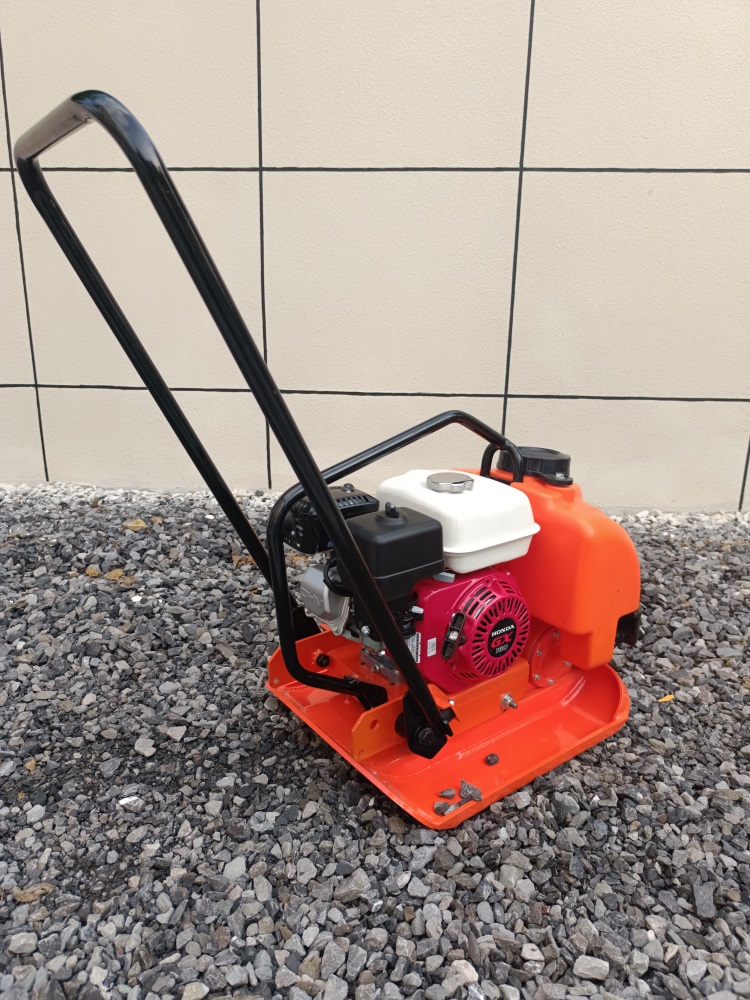

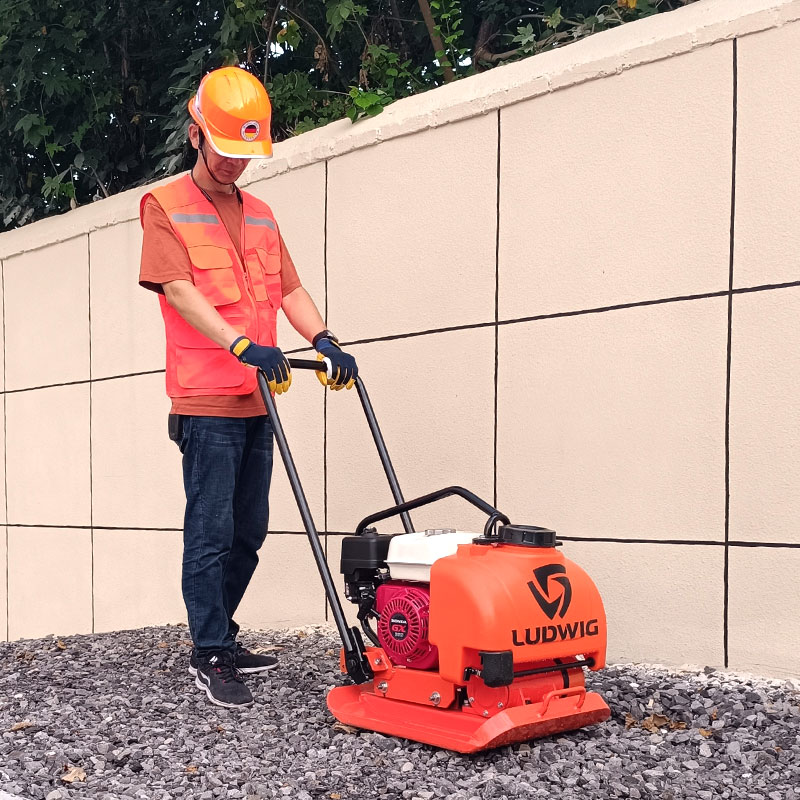

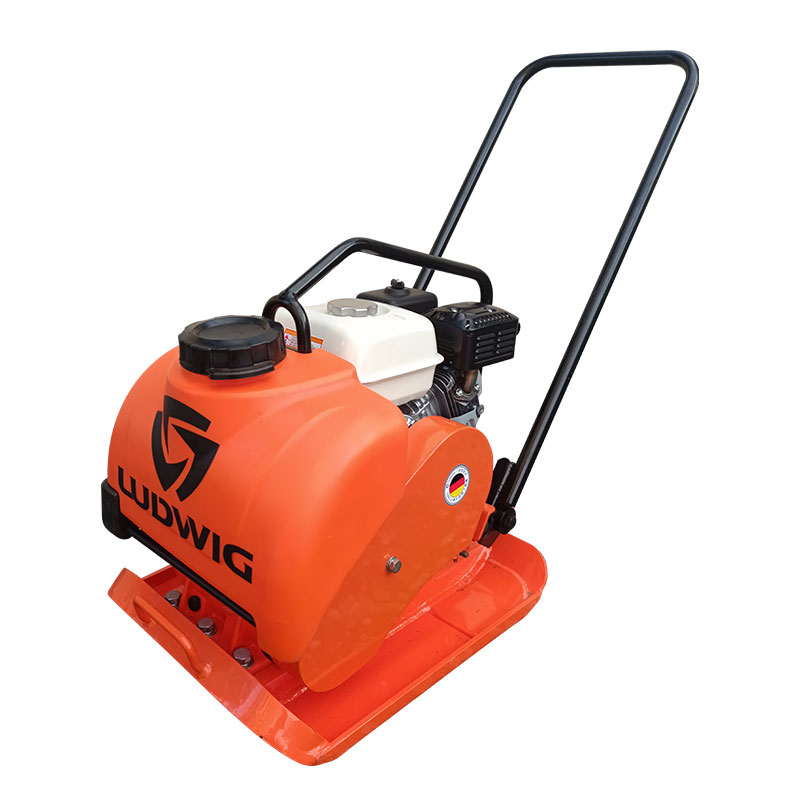

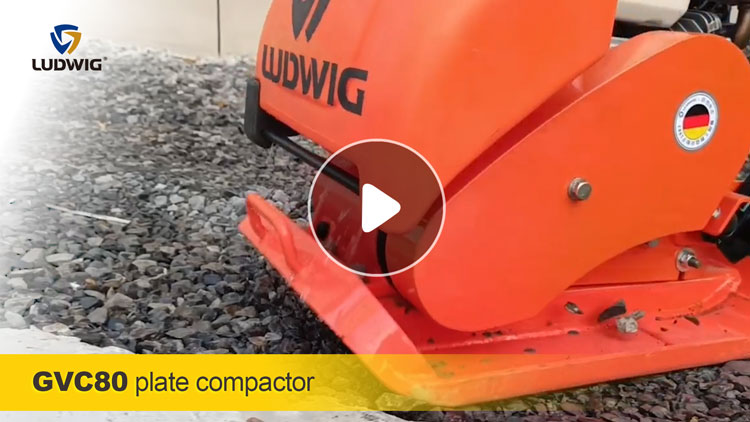

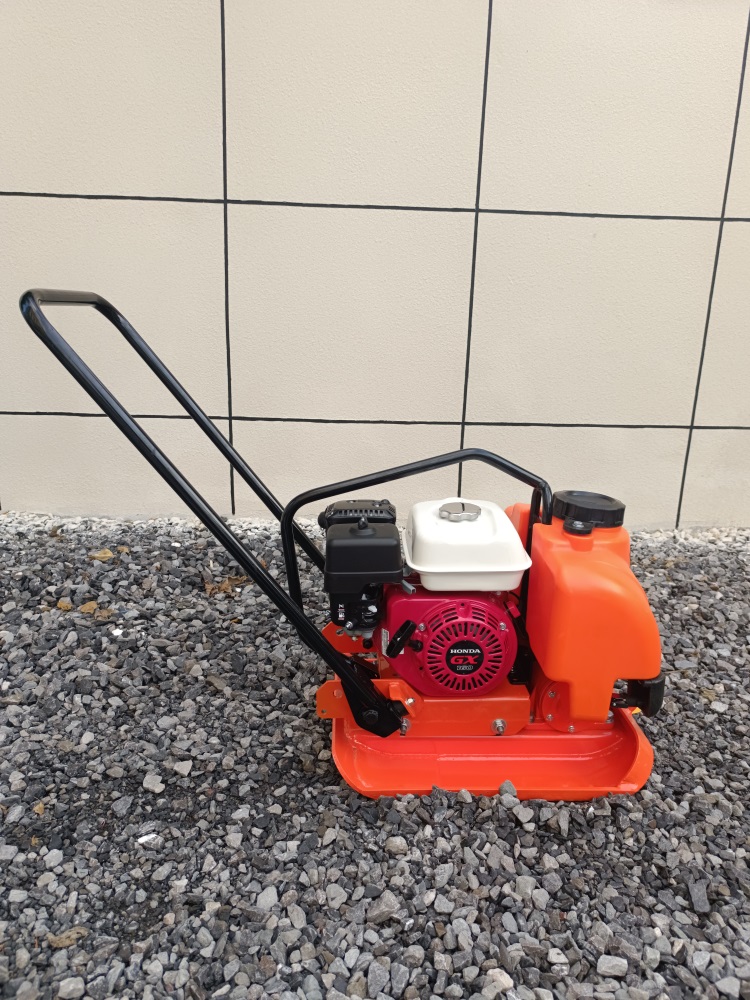

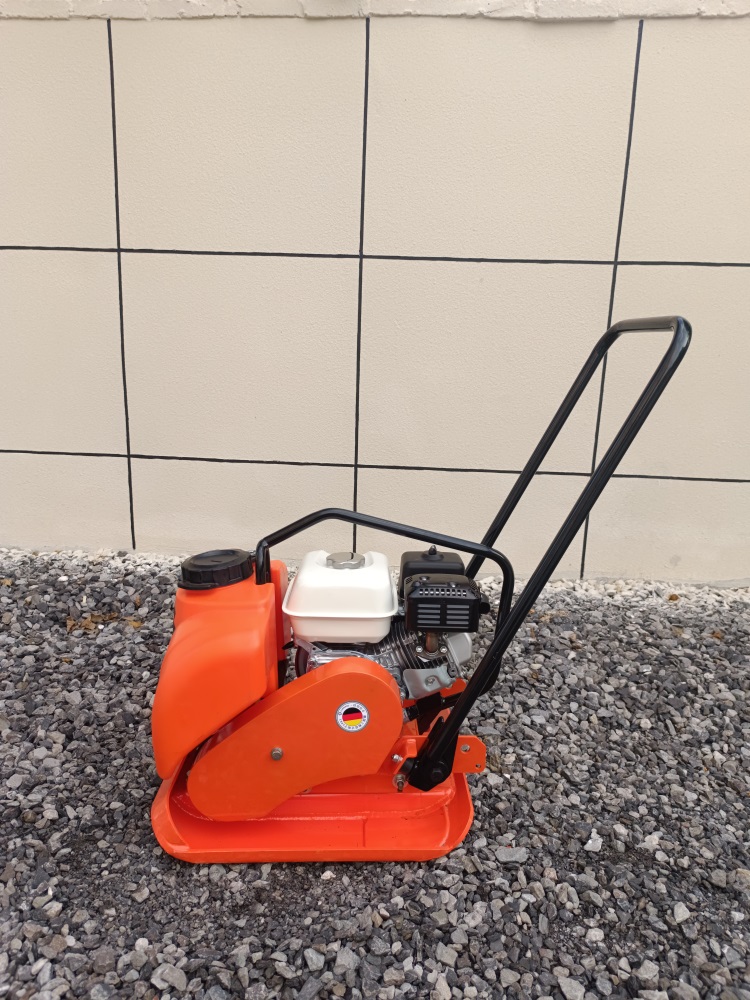

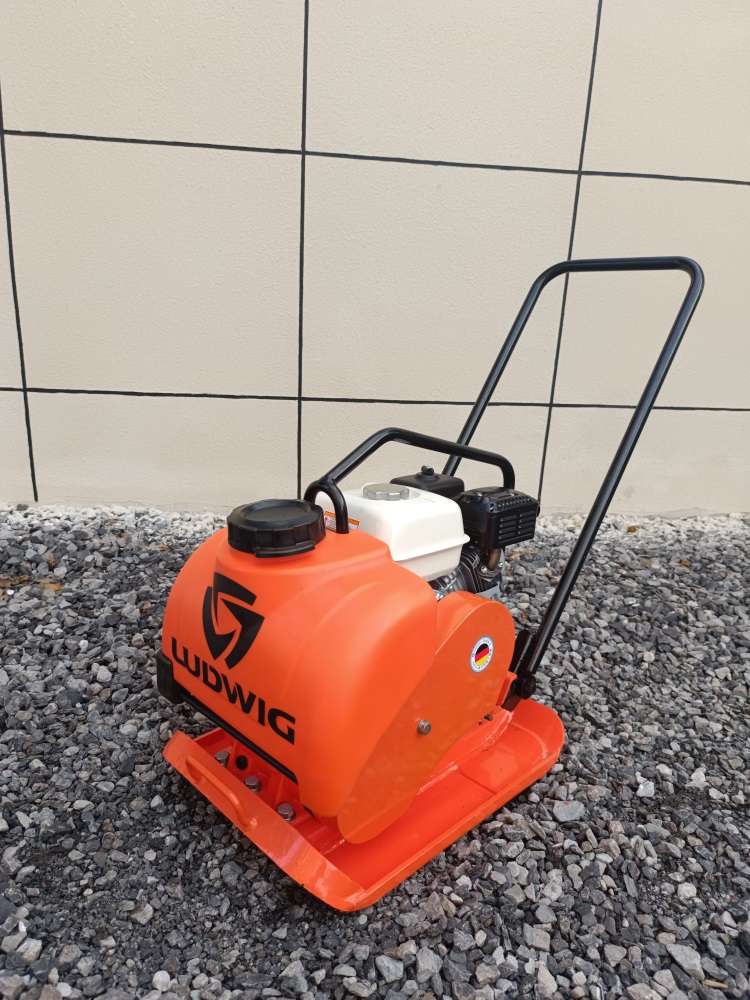

GVC80
- Product details
Standard Plate Compactor with Rugged Double Compaction Baseplate
●Rugged double compaction baseplate design.
●VAS handle to reduce hand-arm vibration(option).
●Water tank to shut out dust(13L, option).
●Single-point lifting hooks for easy loading and unloading.
●Cart of revolving type(option).
| Model | GVC80 |
| Plate size(mm) | 570*450 |
| Weight(kg) | 78 |
| Vibrating frequency (Hz/v.p.m) | 93 (5,600) |
| Centrifugal force(max) (kN/kgf) | 13.7 (1400) |
| Max.traveling speed (m/min) | 25 |
| Max.limited gradeability (%/) | 35 |
| Engine Model | GX160 |
| Brand | Honda |
| Max.output | 5.5HP |
| Dimension (mm) | 925*580*865 |
