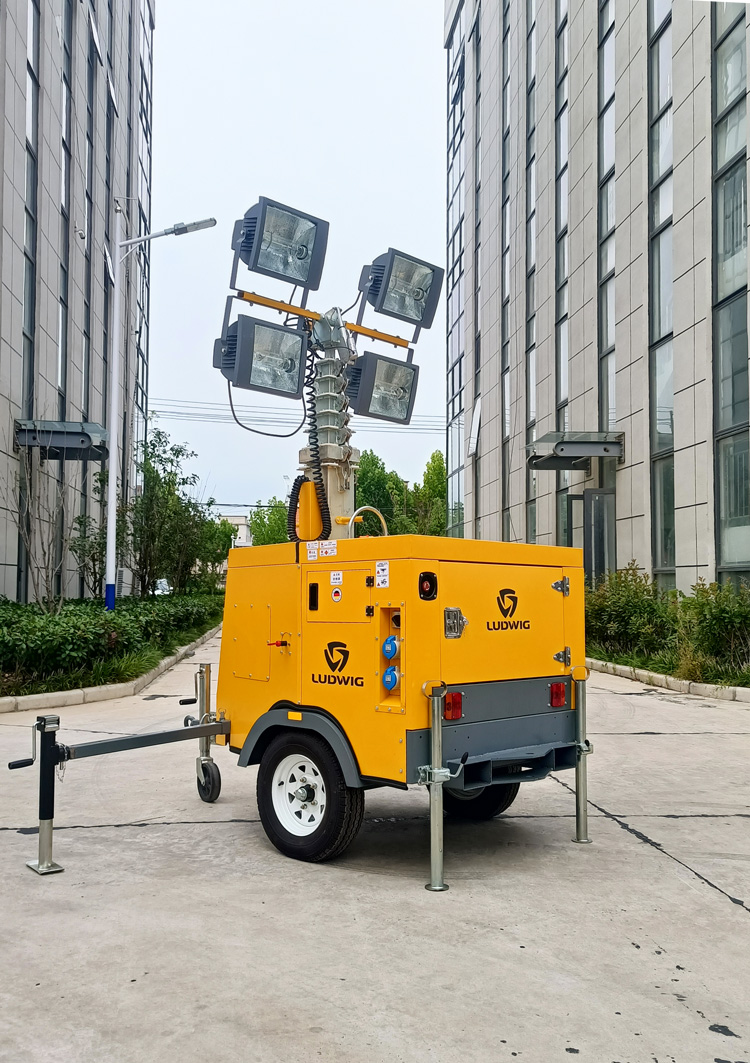

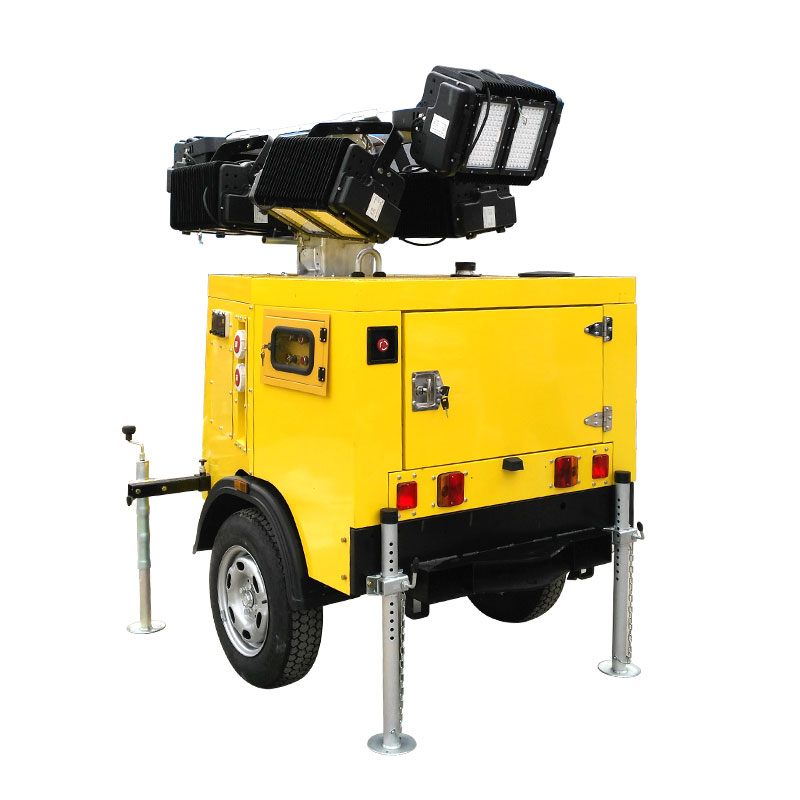

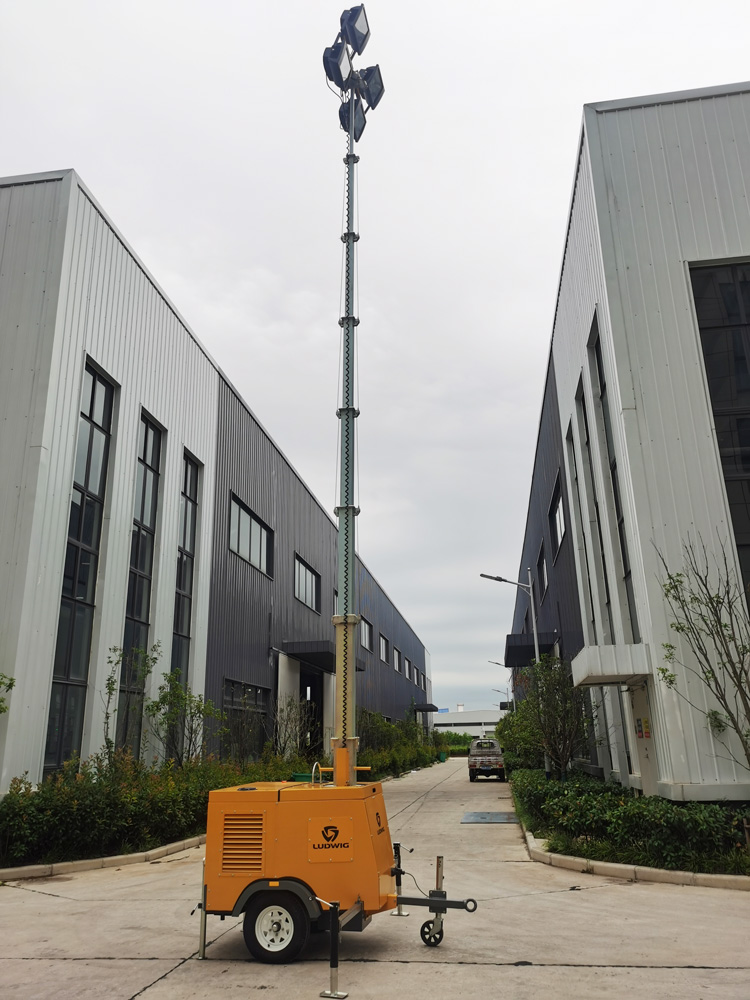

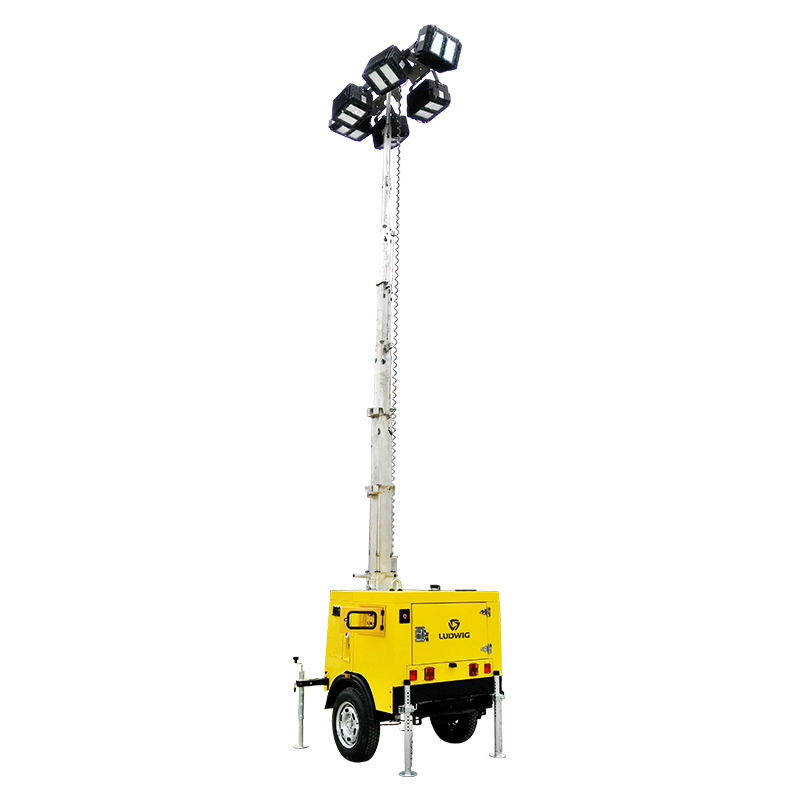

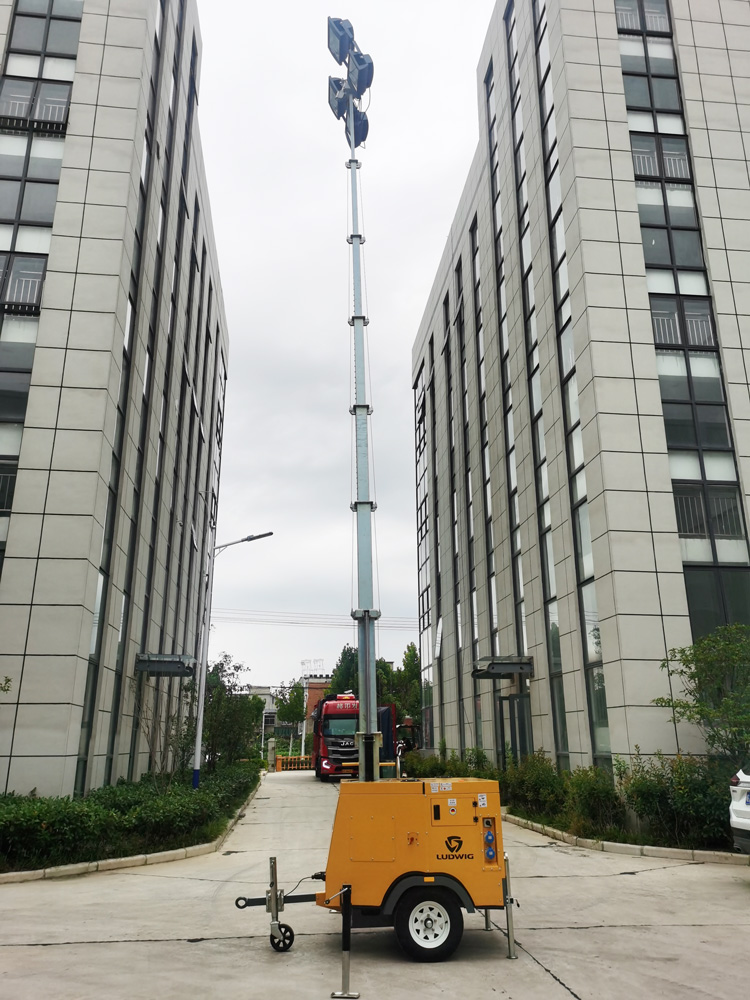

GLTU9210

  • Product details

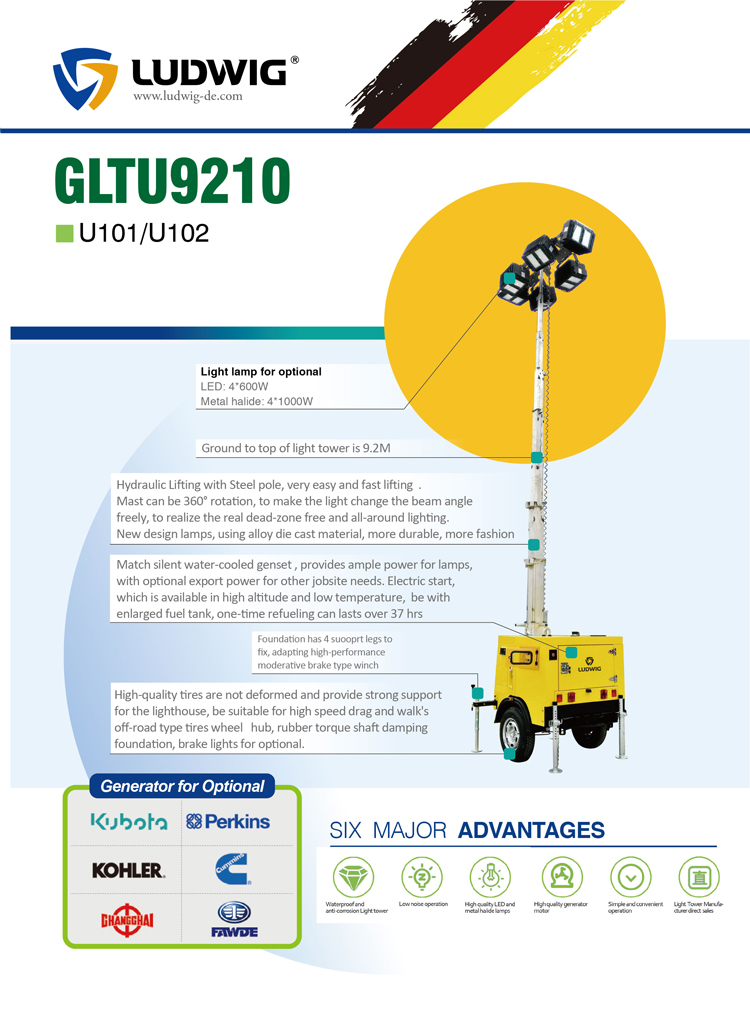

FEATURES:

1.Silent water-cooled generator set.
2.The upright Pole can rotate 360 °, allowing its light source to change the projection angle at will,
thus achieving true zero dead angle and omnidirectional illumination.
3.A novel designed lamp made of alloy pressed aluminum material, which is more durable and fashionable.
4.Electric starting, suitable for plateau and low temperature environment, gasoline or diesel generator can
 be selected. Equipped with an enlarged fuel tank, it can be refueled for at least 37 hours at a time.
5.Suitable for high-speed towing and walking with off-road tires, rubber torsion bar axle shock absorption
chassis, and optional rear brake lights.

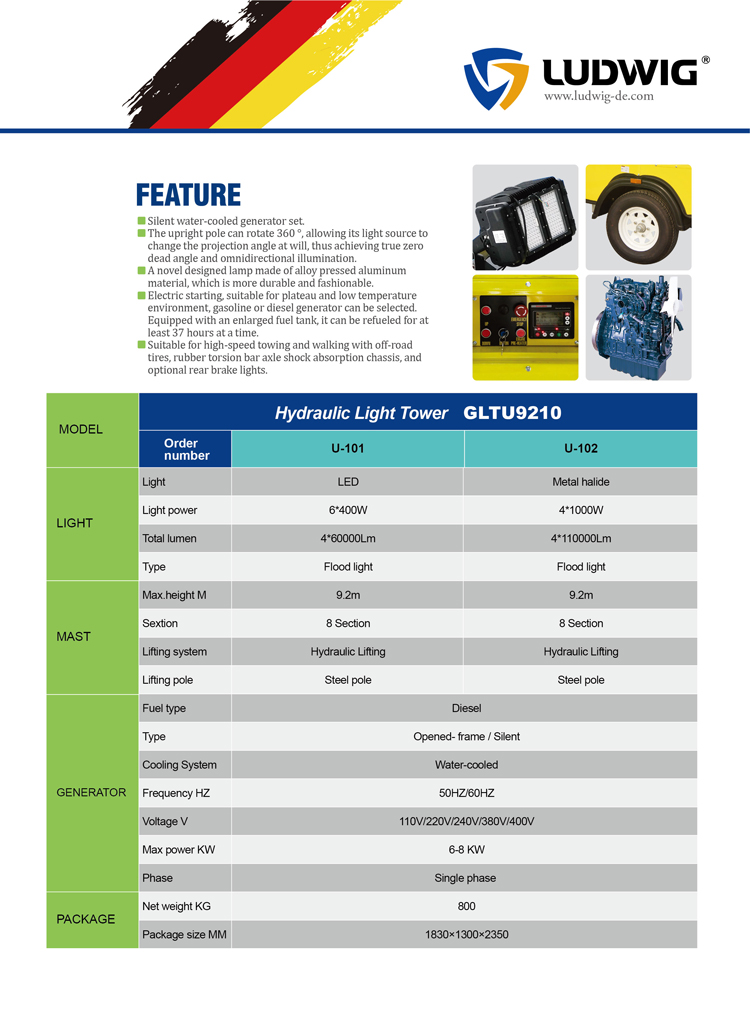

Model GLTU9210
Order number U-101 U-102
Light Light LED Metal Halide
Light Power 6×400W 4×1000W
Total Lumen 6×60000Lm 4×110000Lm
Type Flood Light Flood Light
Mast Max.height 9.2m 9.2m
Section 8 Section 8 Section
Lifting System Hydraulic Lifting Hydraulic Lifting
Lifting Pole Steel Pole Steel Pole
Generator Fuel Type Diesel Diesel
Type Brushless, self-excitation Brushless, self-excitation
Cooling System Water-cooled Water-cooled
Frequency 50HZ/60HZ 50HZ/60HZ
Voltage 110V/220V/240V/380V/400V 110V/220V/240V/380V/400V
Max Power 6-8KW 6-8KW
Phase Single Phase Single Phase
Package Net Weight 1170kg 1170kg
Package Size 1830×1300×2350mm 1830×1300×2350mm
