- GLTH9510
- HOME > Light Tower > Trailer Light Tower

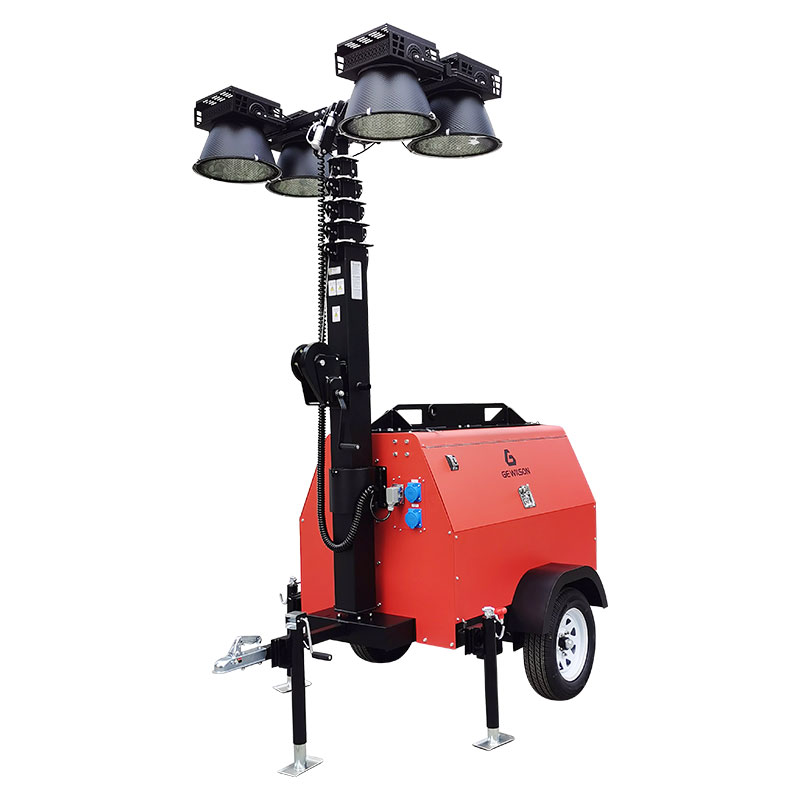

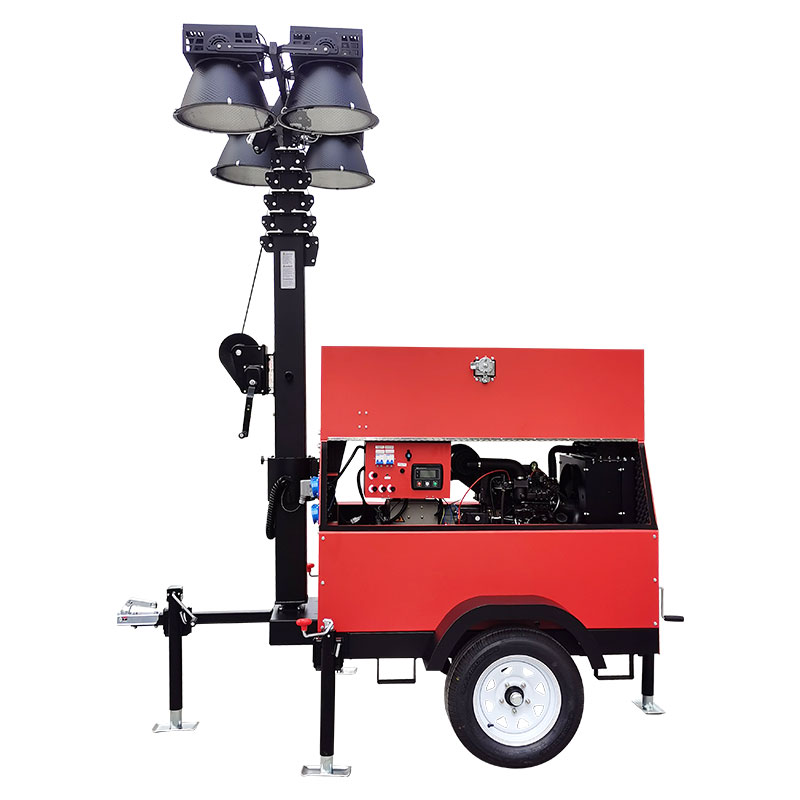

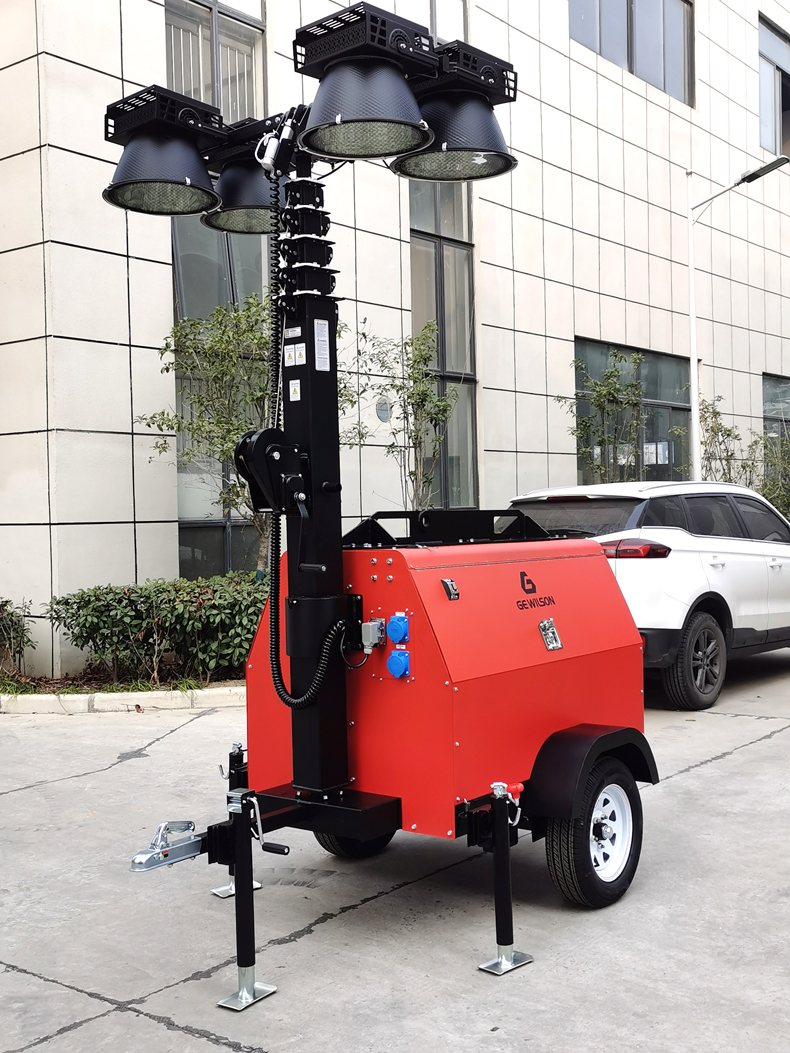

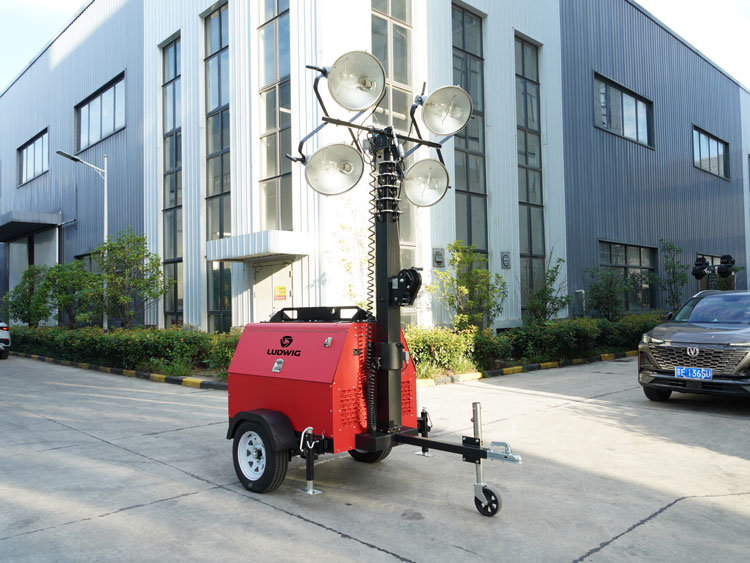

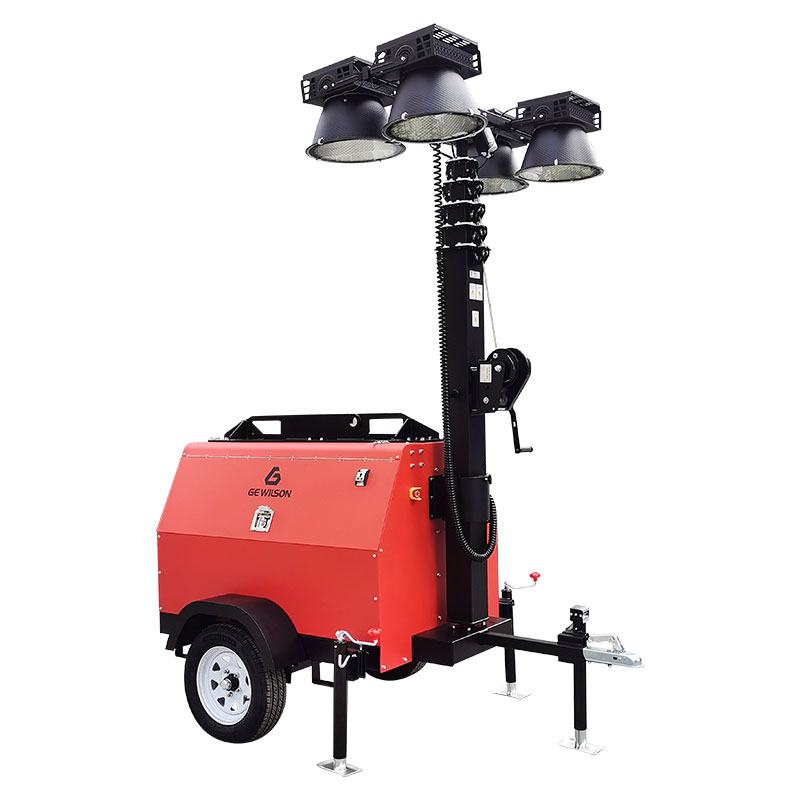

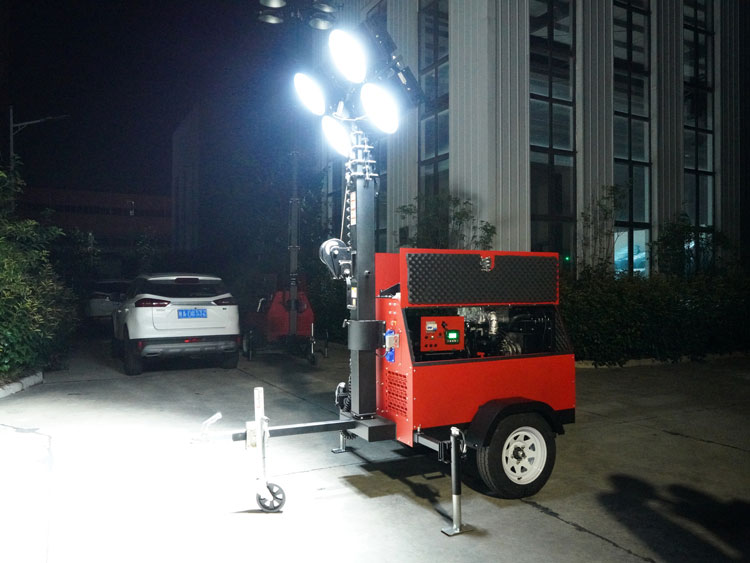

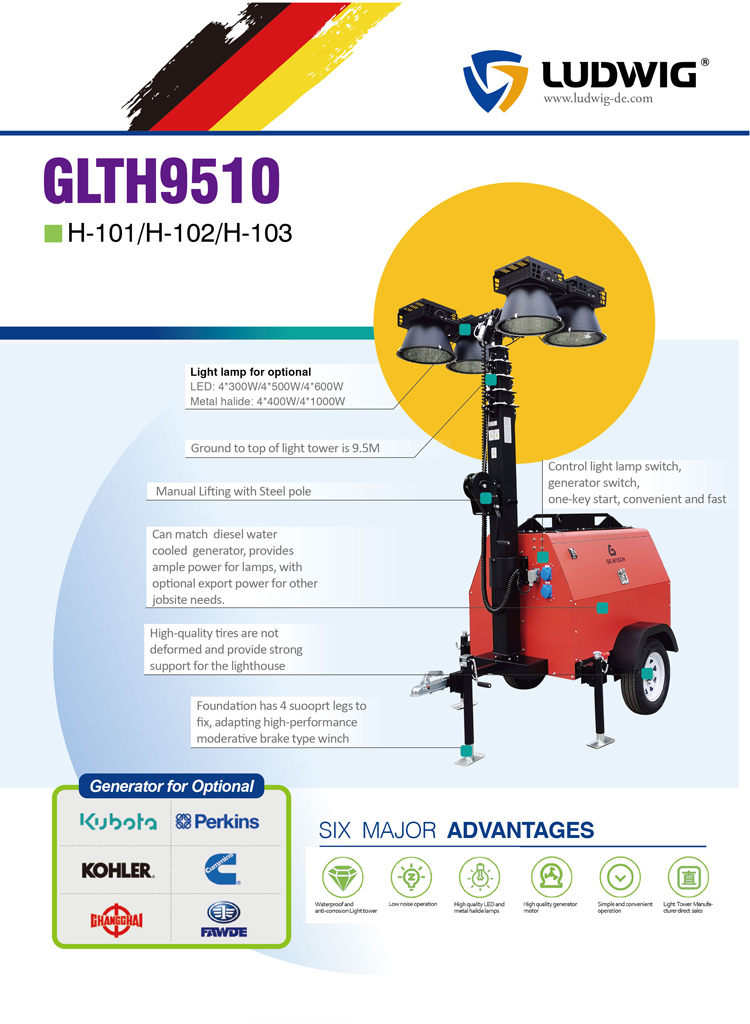

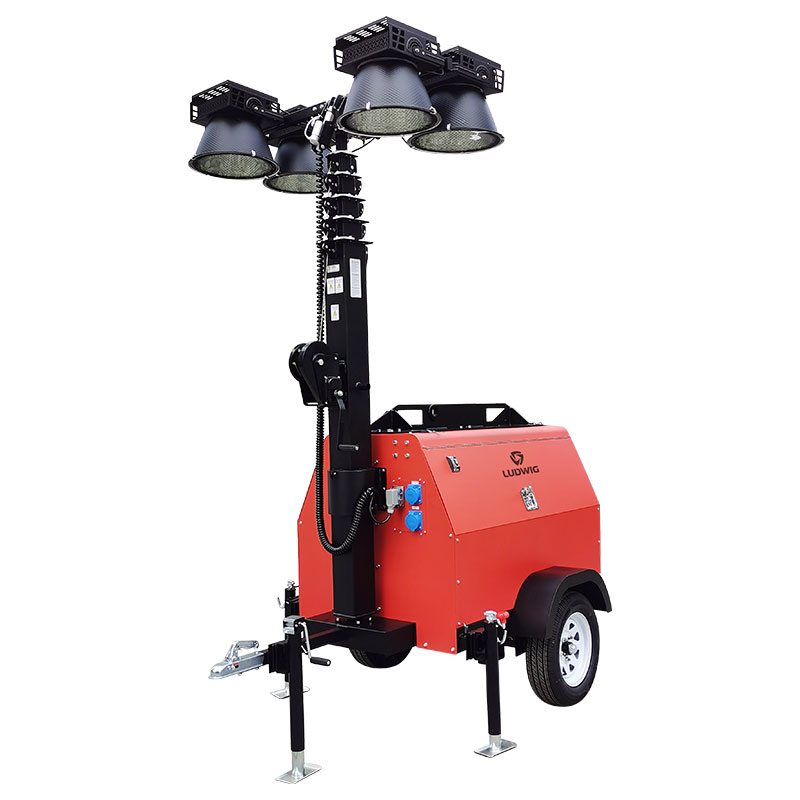

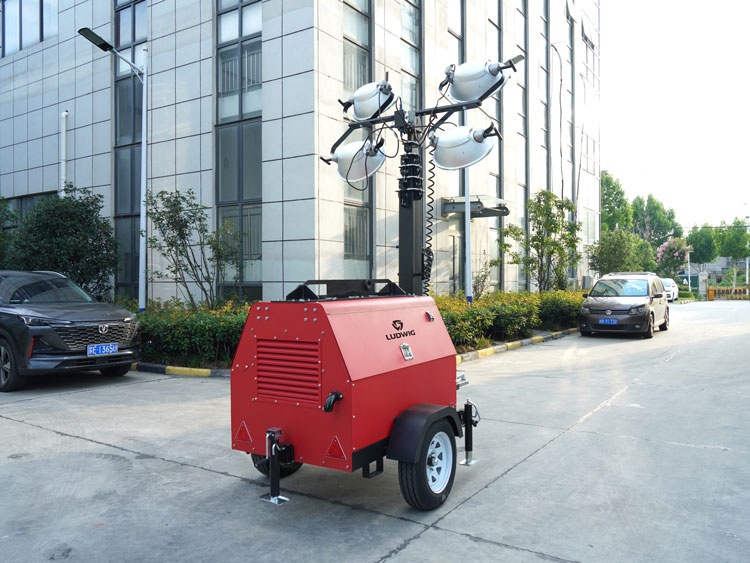

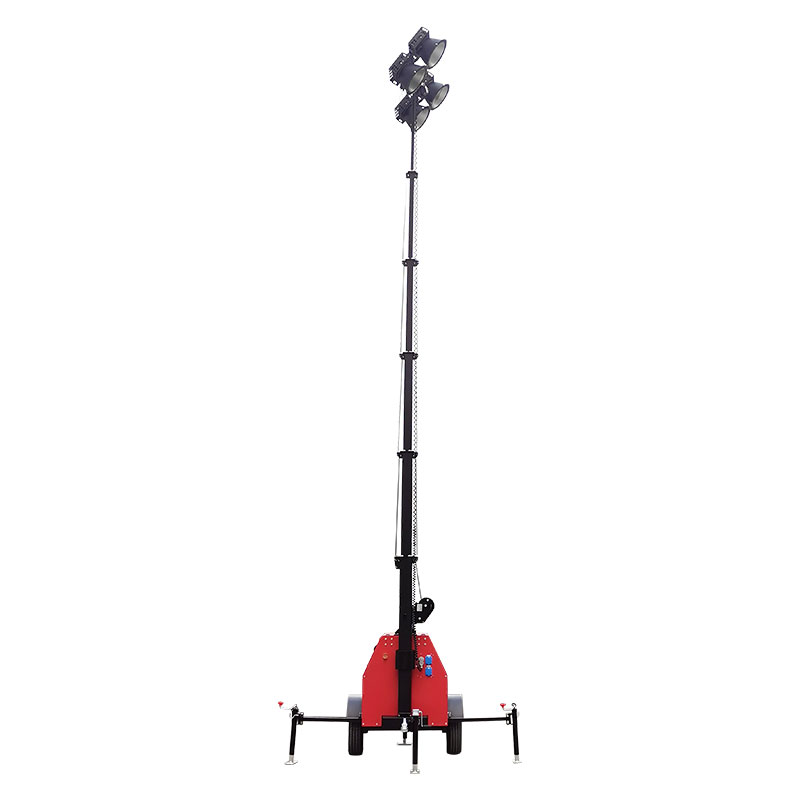

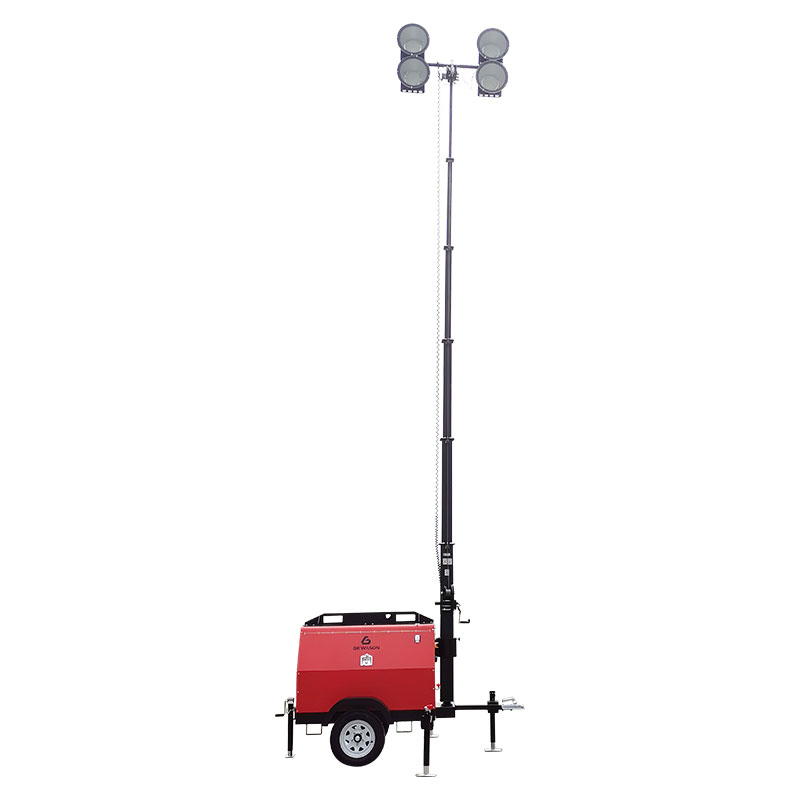

GLTH9510
- Product details

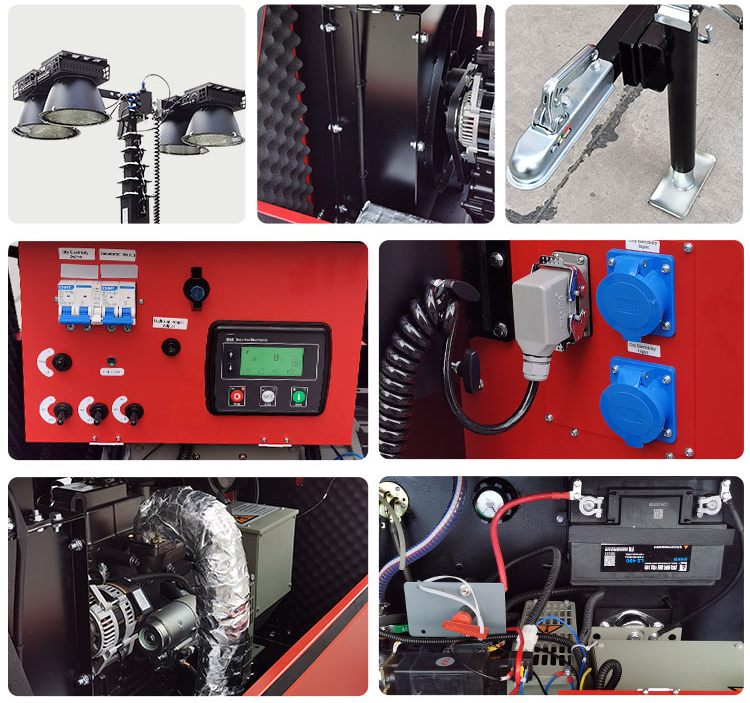

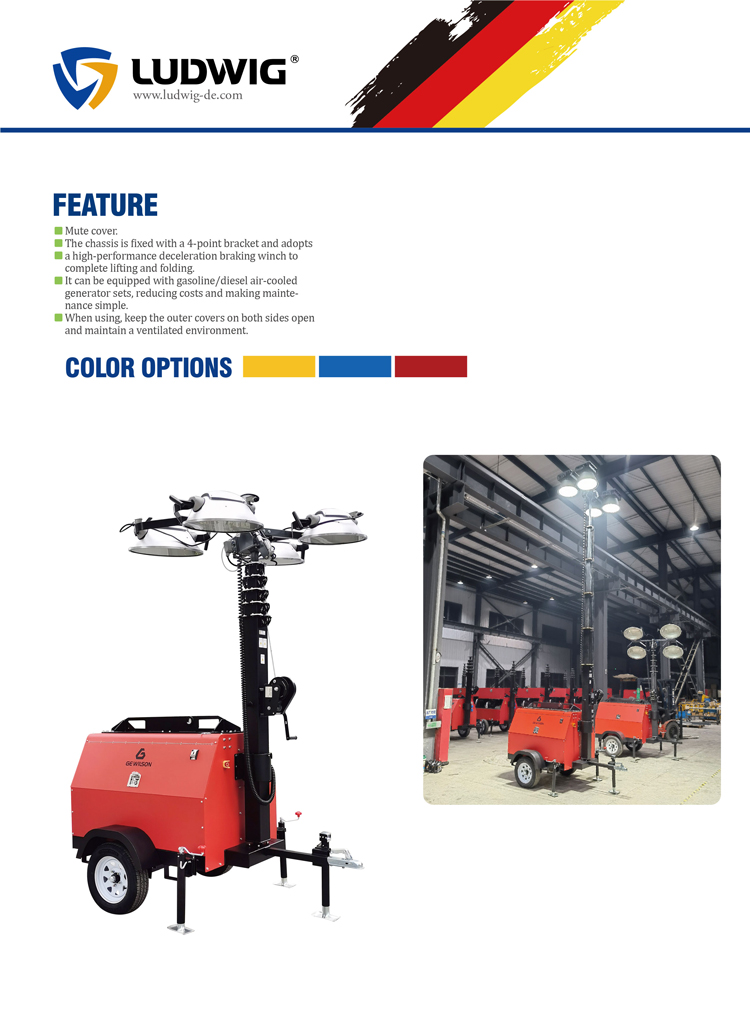

FEATURES:
-Mute cover.
-The chassis is fixed with a 4-point bracket and adopts a high-performance deceleration braking winch to complete
-Lifting and folding.
-It can be equipped with gasoline/diesel air-cooled generator sets, reducing costs and making maintenance simple.
-When using, keep the outer covers on both sides open and maintain a ventilated environment.

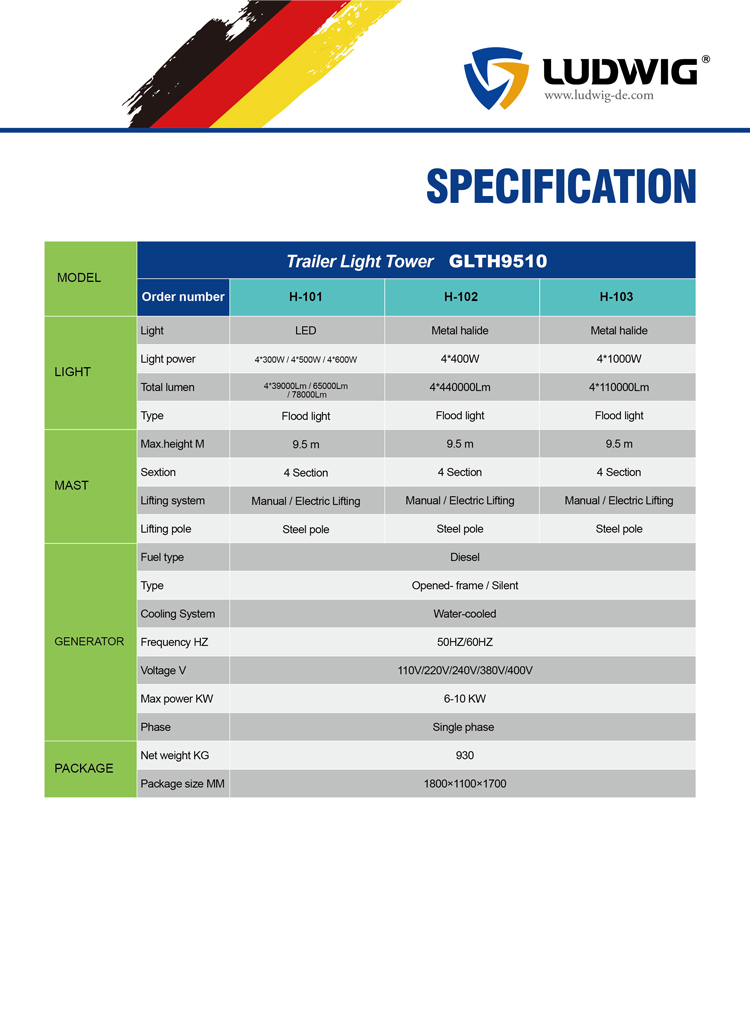

| Model | GLTH9510 | |||
| Order number | H-101 | H-102 | H-103 | |
| Light | Light | LED | Metal Halide | Metal Halide |
| Light Power | 4×300W / 4×500W / 4×600W | 4×400W | 4×1000W | |
| Total Lumen |
4×39000Lm / 65000Lm /
78000Lm
|
4×440000Lm | 4×110000Lm | |
| Type | Flood Light | Flood Light | Flood Light | |

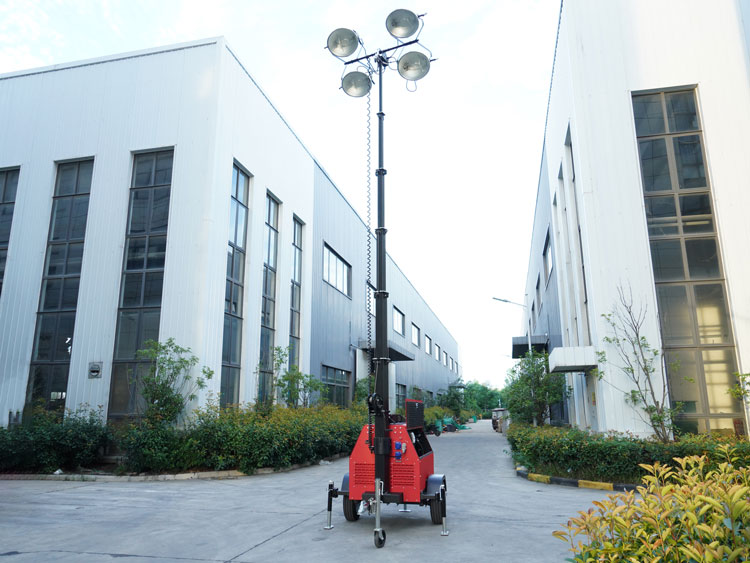

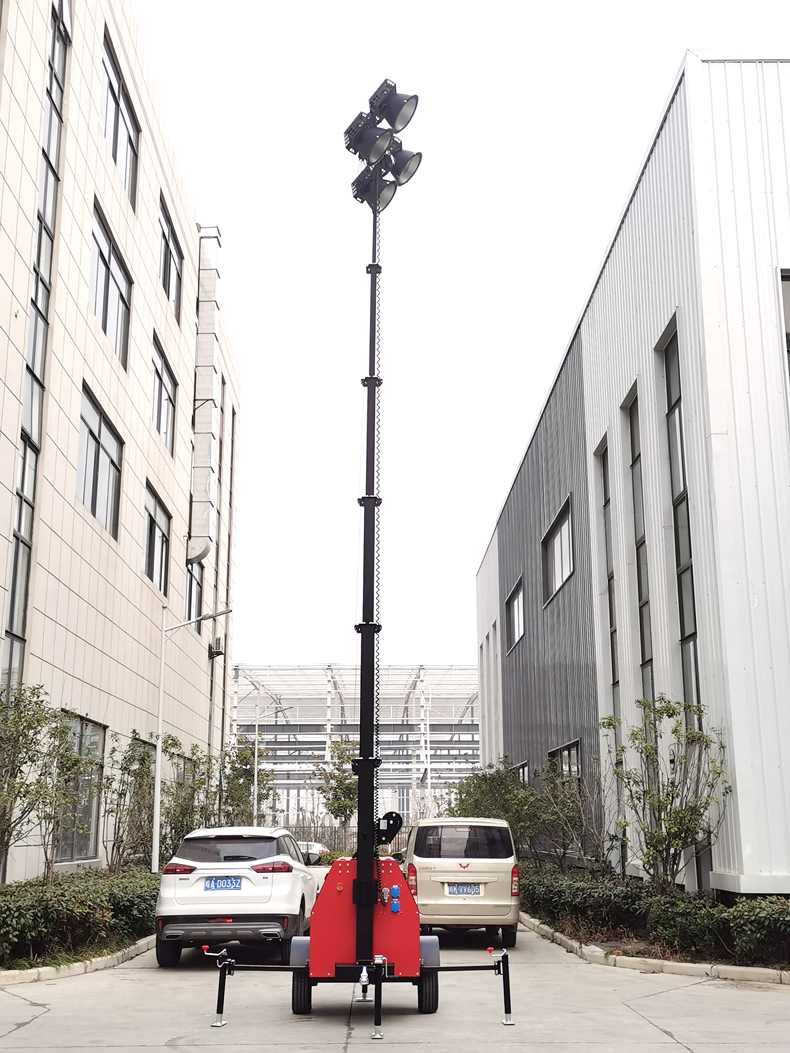

| Mast | Max.height | 9.5 m | 9.5m | 9.5m |
| Section | 5 Section | 5 Section | 5 Section | |
| Lifting System | Manual / Electric Lifting | Manual / Electric Lifting | Manual / Electric Lifting | |
| Lifting Pole | Steel Pole | Steel Pole | Steel Pole | |
| Engine | Fuel Type | Diesel | Diesel | Diesel |
| Type | Brushless, self-excitation | Brushless, self-excitation | Brushless, self-excitation | |
| Cooling System | Water-cooled | Water-cooled | Water-cooled | |
| Frequency | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | |
| Voltage | 110V/220V/240V/380V/400V | 110V/220V/240V/380V/400V | 110V/220V/240V/380V/400V | |
| Max Power | 6-10KW | 6-10KW | 6-10KW | |
| Phase | Single Phase | Single Phase | Single Phase | |
| Package | Net Weight | 930kg | 930kg | 930kg |
| Package Size | 1800×1100×1700mm | 1800×1100×1700mm | 1800×1100×1700mm | |
