- GLTM7530
- HOME > Light Tower > Trailer Light Tower

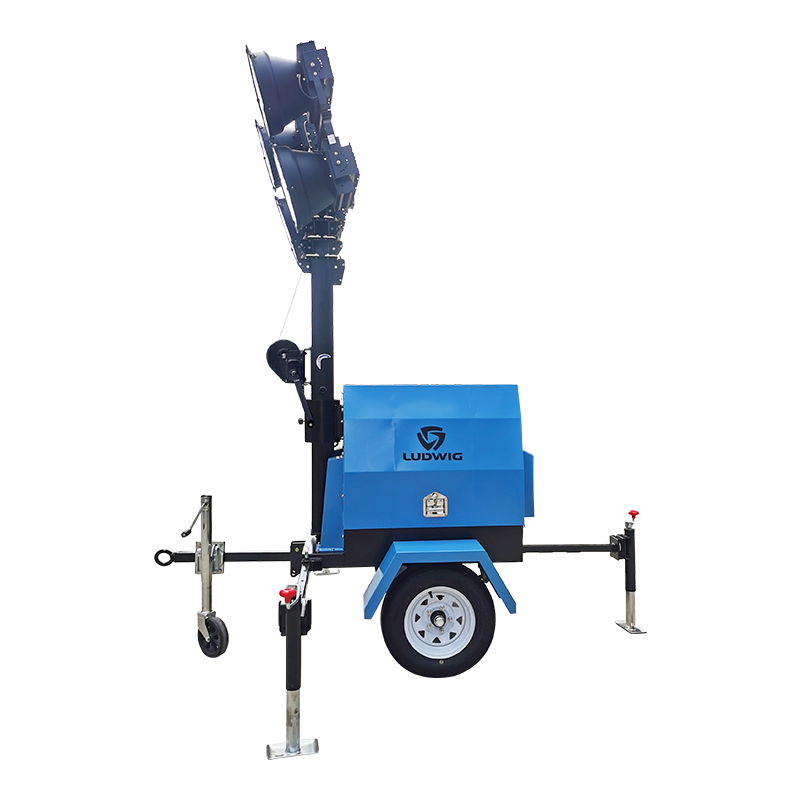

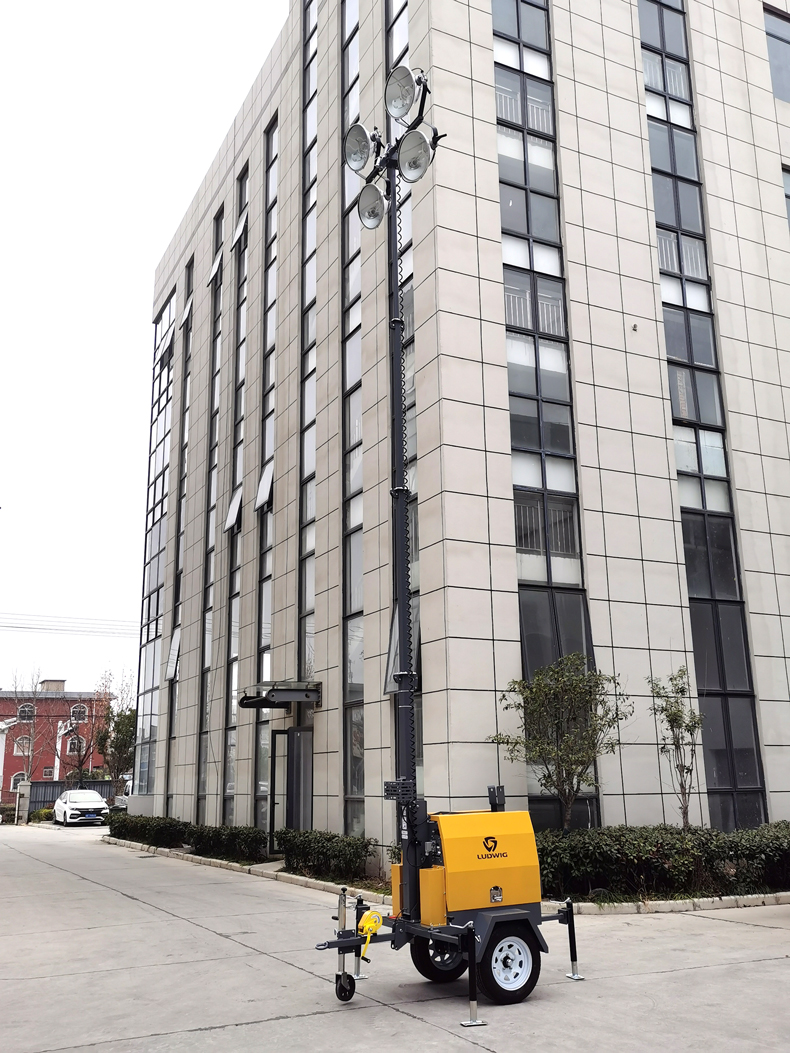

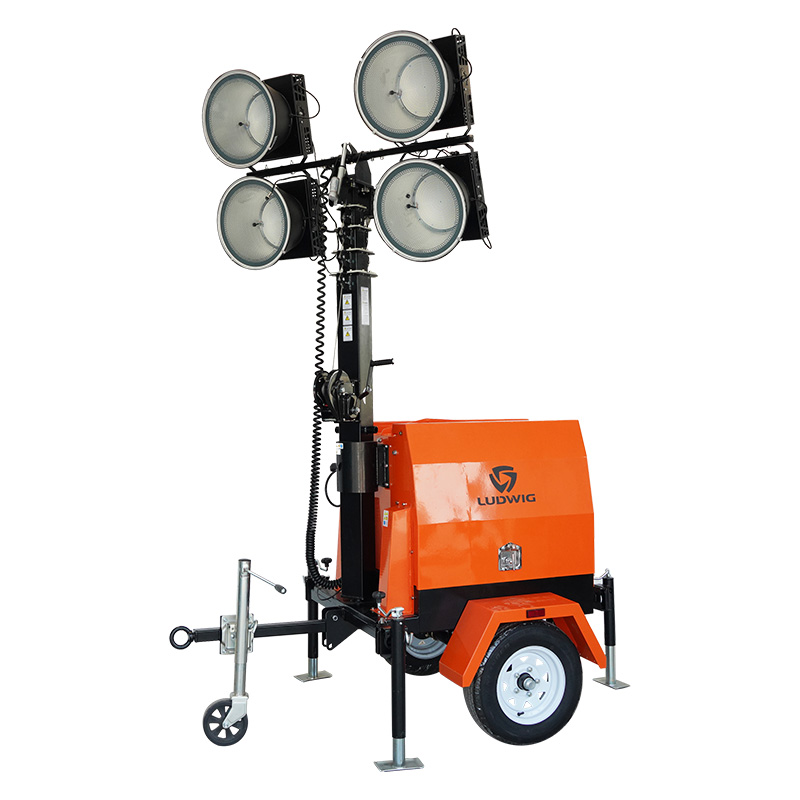

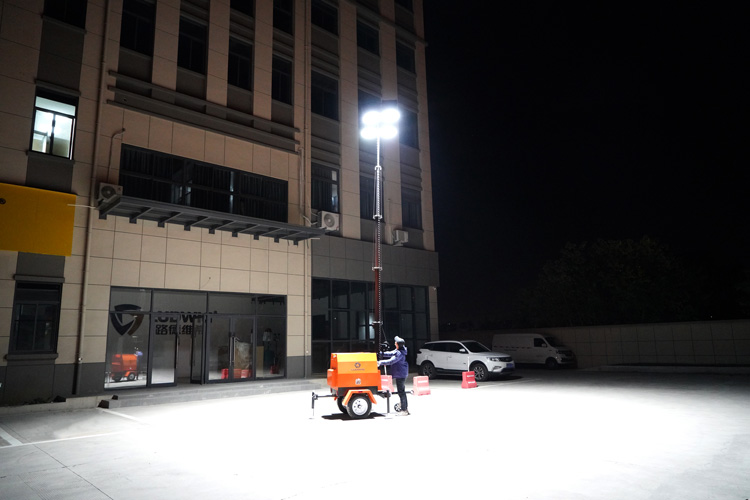

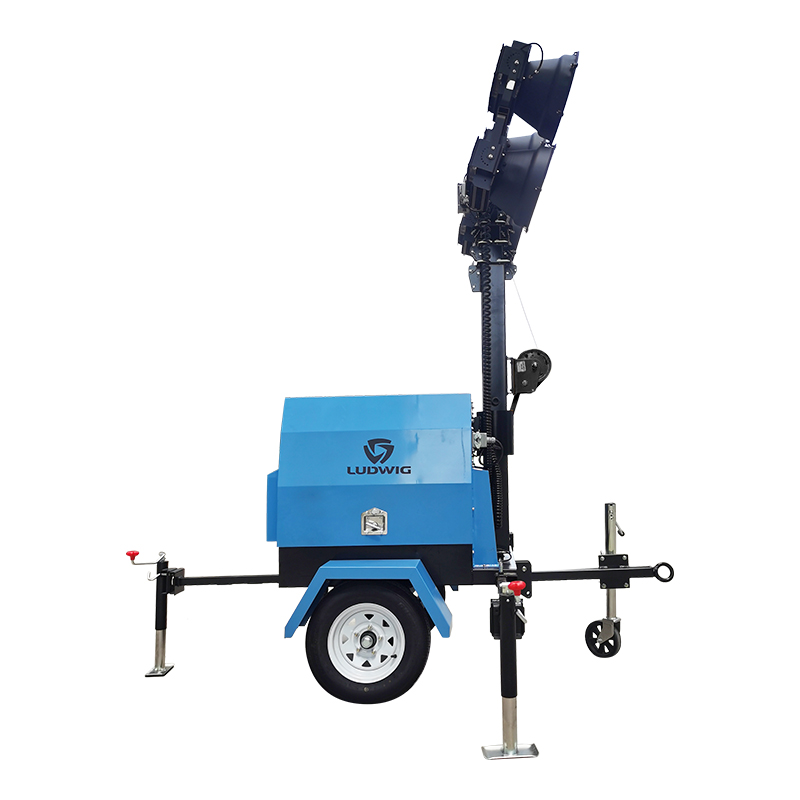

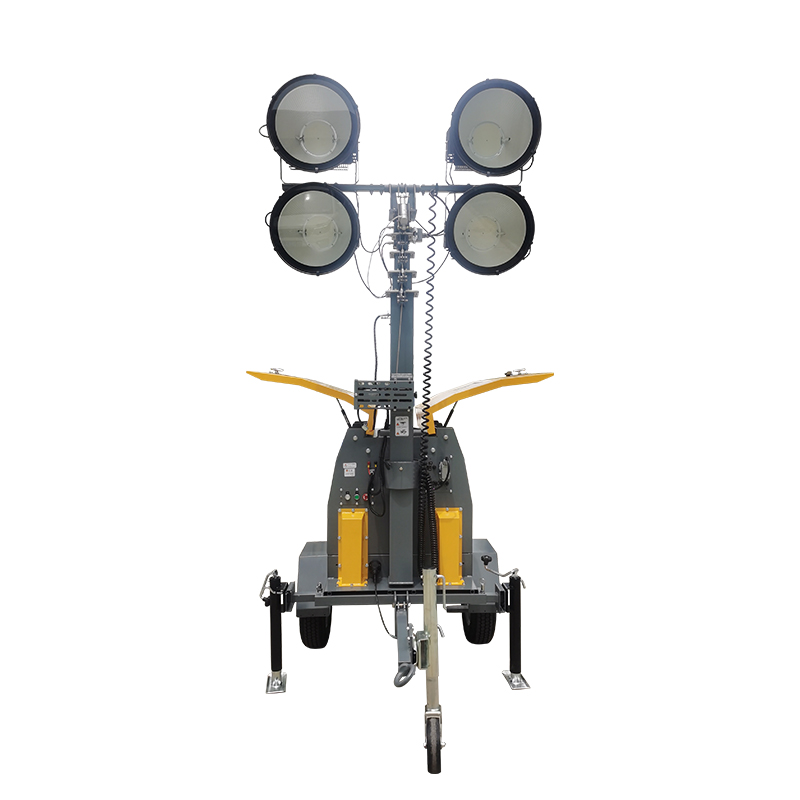

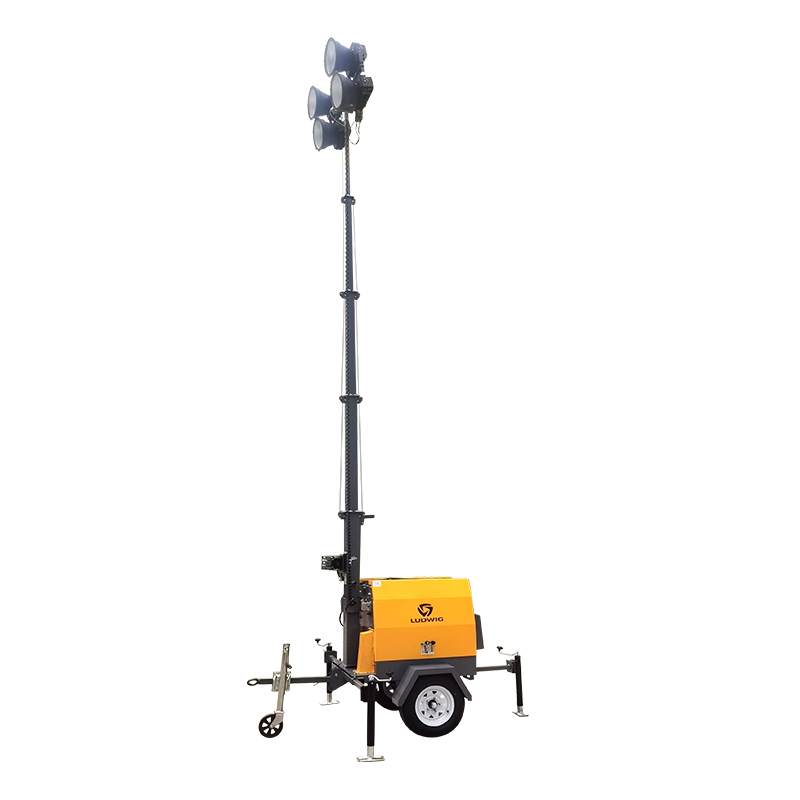

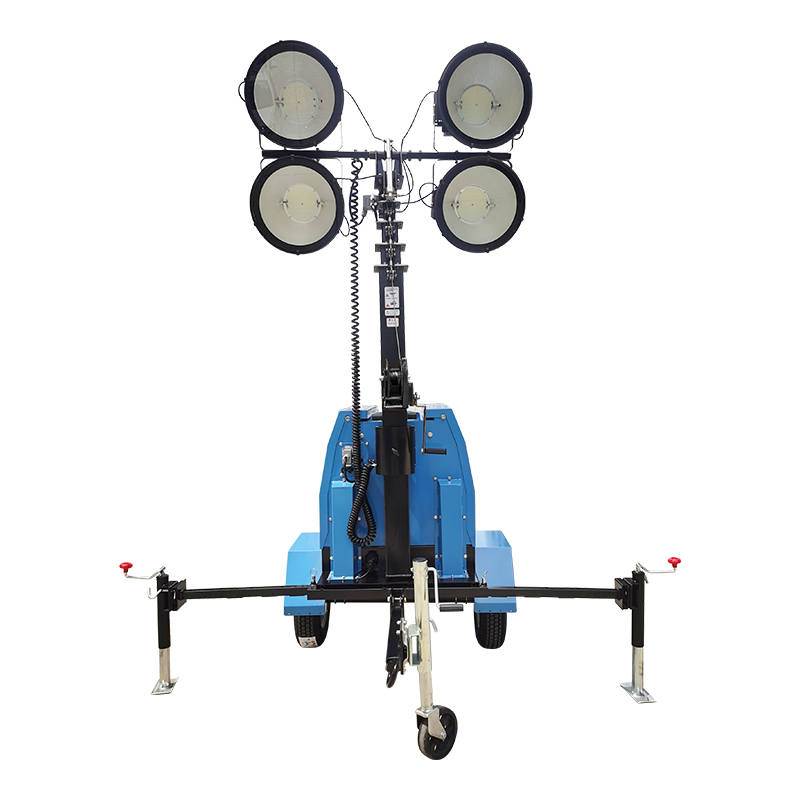

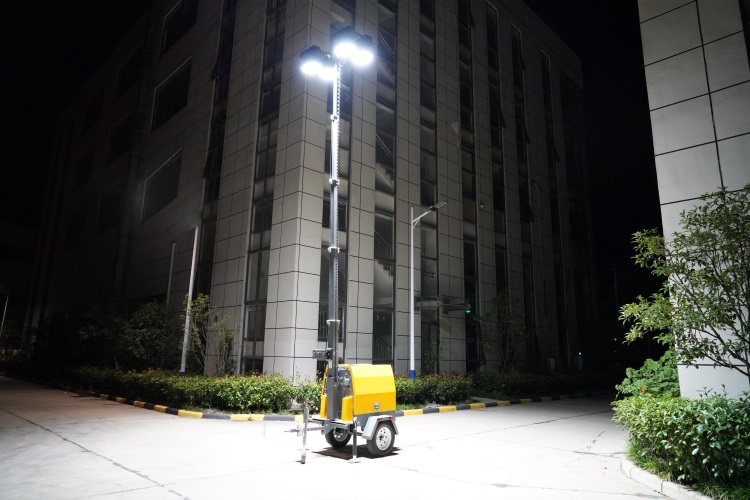

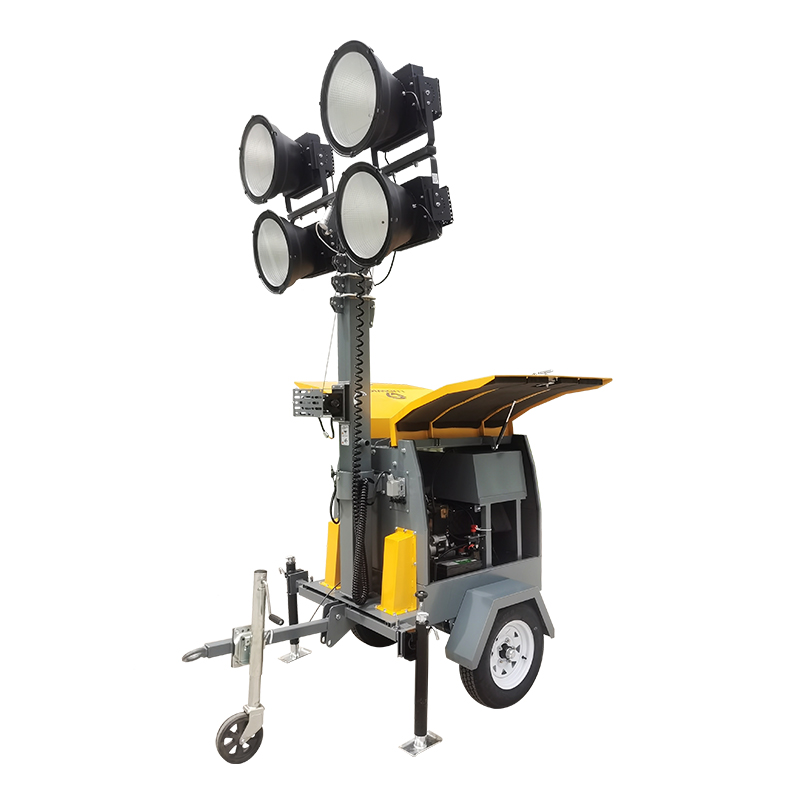

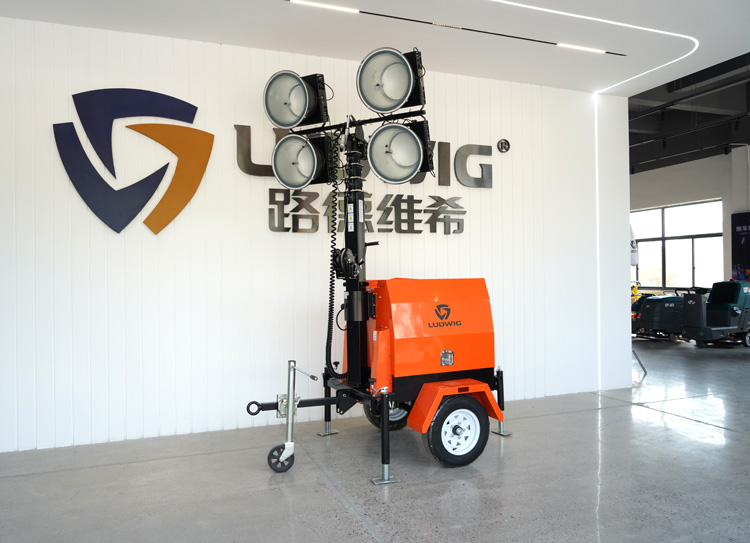

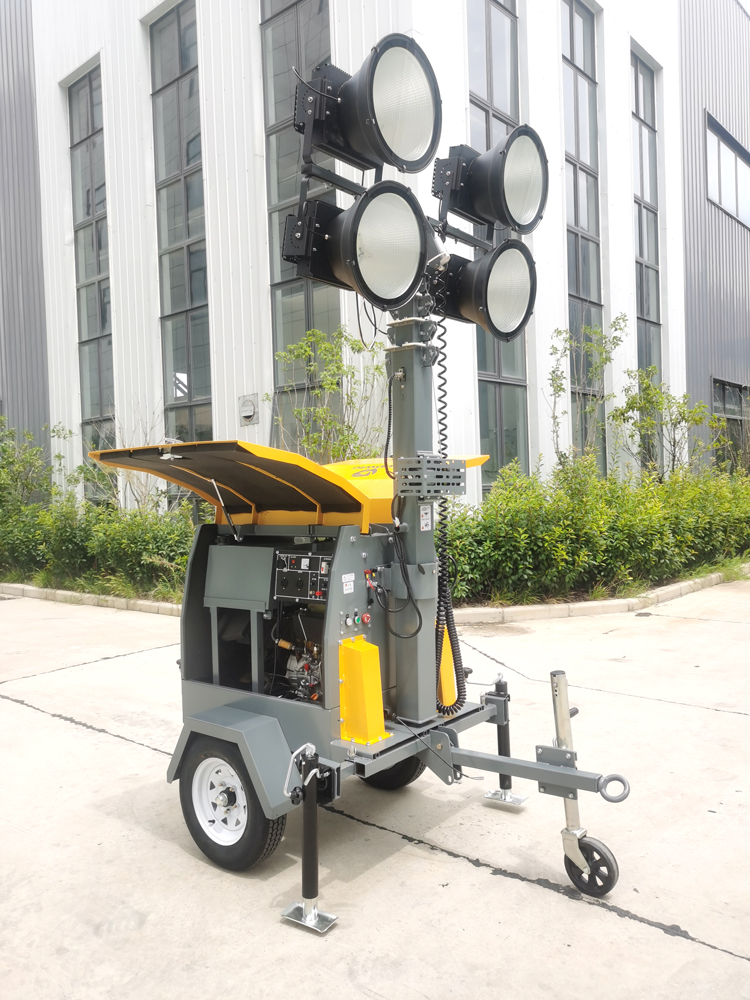

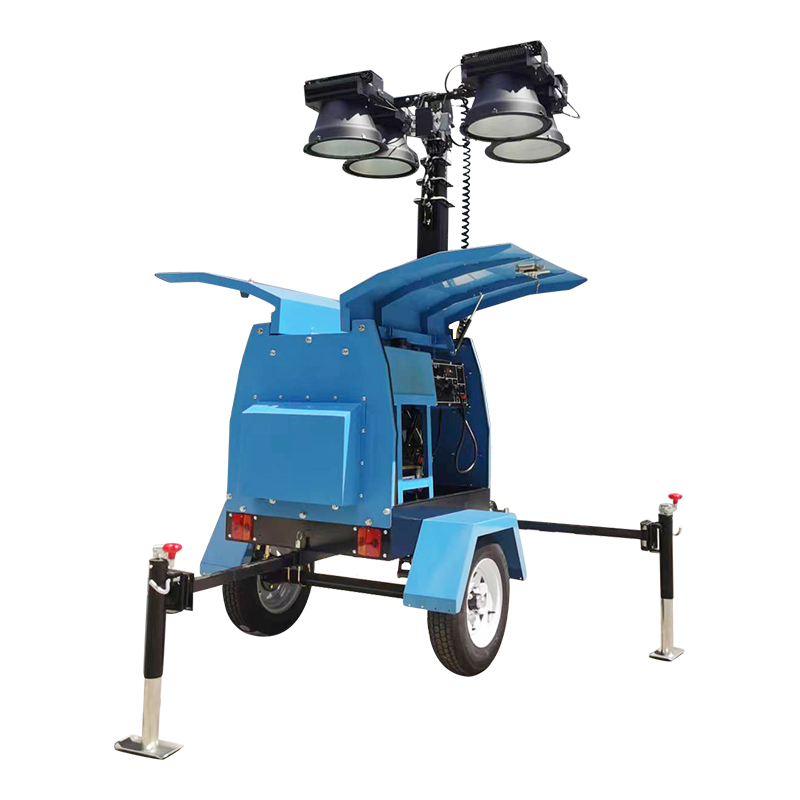

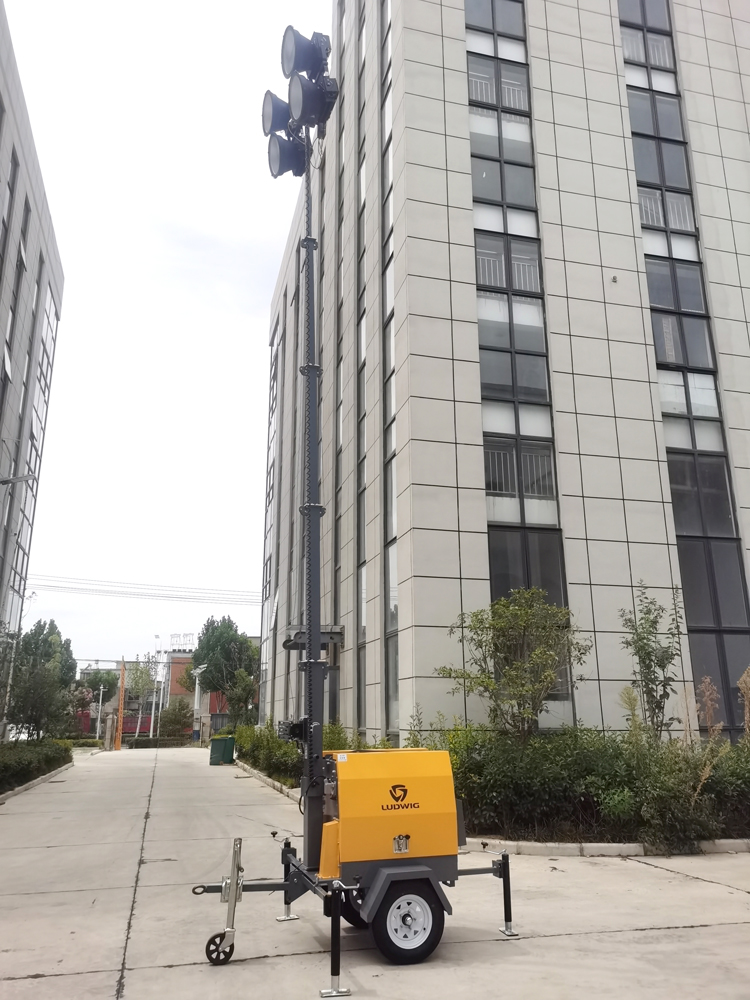

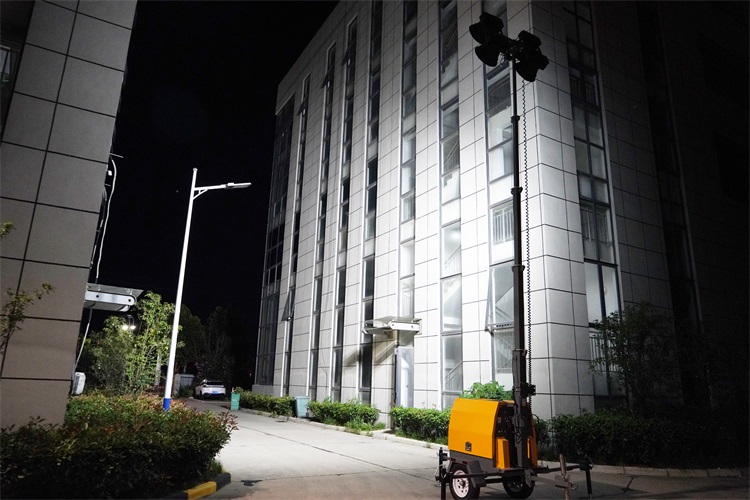

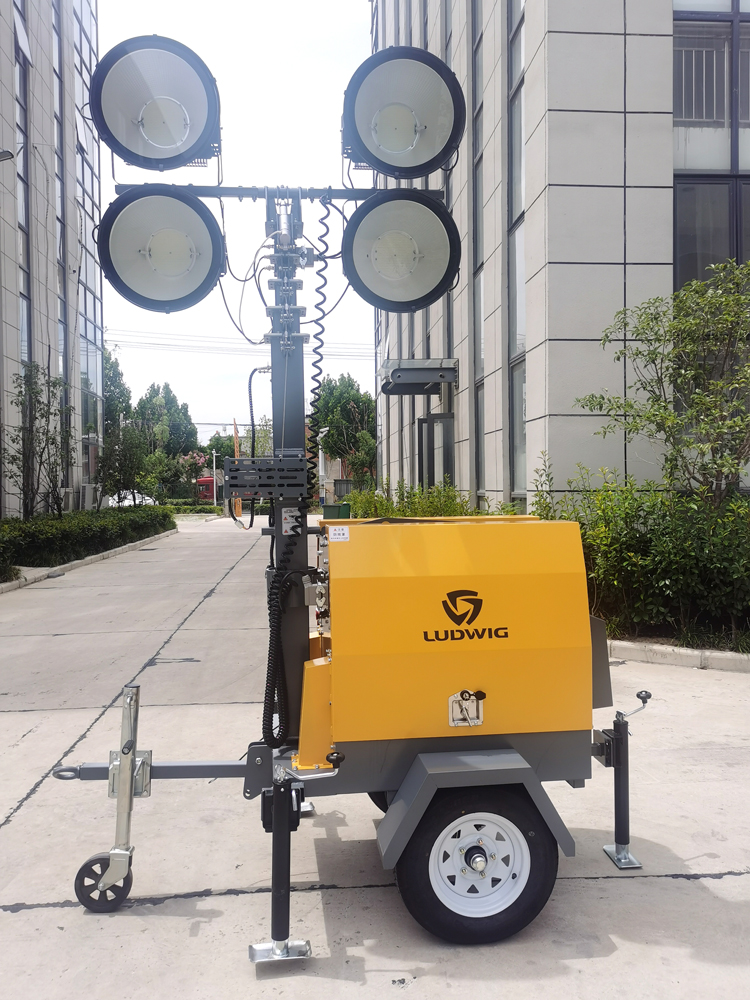

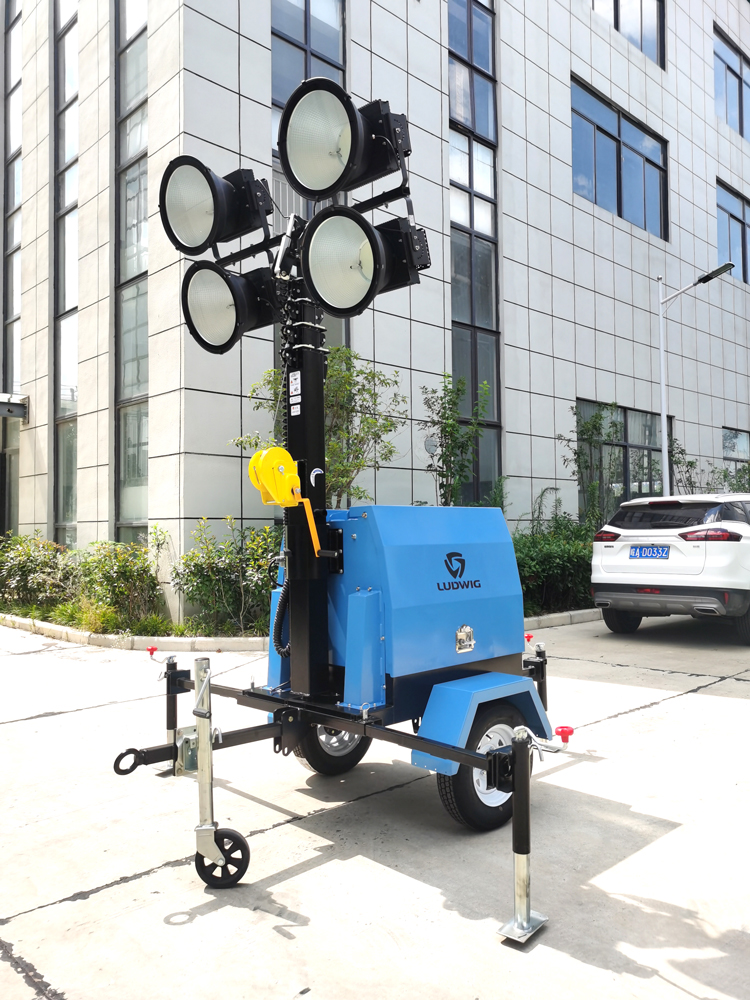

GLTM7530
- Product details
FEATURES:
1.Can be equipped with a variety of lights 400/1000W METAL HALIDE 100W~1000W LED
2.Optional: Light pole 360 degrees rotation and 90 degrees folding
3.Light pole lifting mode: hand or electric
4.The lighting Angle of the lamp can be adjusted by electric power
5.Can withstand 100KM/H wind
6.ntelligent control system
| Model | GLTM7530 | |||
| Order number | M-101 | M-102 | M-103 | |
| Light | Light | LED | Metal Halide | Metal Halide |
| Light Power | 4×300W / 4×500W / 4×600W | 4×400W | 4×1000W | |
| Total Lumen | 4×39000Lm / 65000Lm / 78000Lm | 4×44000Lm | 4×110000Lm | |
| Type | Flood Light | Flood Light | Flood Light | |
| Mast | Max.height | 7.5m | 7.5m | 7.5m |
| Section | 5 Section | 5 Section | 5 Section | |
| Lifting System | Manual / Electric Lifting | Manual / Electric Lifting | Manual / Electric Lifting | |
| Lifting Pole | Steel Pole | Steel Pole | Steel Pole | |
| Generator | Frequency | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
| Voltage | 110V/220V/240V/380V/400V | 110V/220V/240V/380V/400V | 110V/220V/240V/380V/400V | |
| Rated Power | 5.5KW | 5.5KW | 5.5KW | |
| Max Power | 6KW | 6KW | 7KW | |
| Phase | Single Phase | Single Phase | Single Phase | |
| Excitation Mode | Brush self-excitation | Brush self-excitation | Brush self-excitation | |
| Power Factor | 1 | 1 | 1 | |
| Engine | Engine Number | LD188F | LD188F | LD192F |
| Stan Model | Electric | Electric | Electric | |
| Engine Model | Single cylinder,vertical, 4- stroke air cooled diesel engine | Single cylinder,vertical, 4- stroke air cooled diesel engine | Single cylinder,vertical, 4- stroke air cooled diesel engine | |
| Borex Stroke | 88×75mm | 88×75mm | 92×75mm | |
| Displacement | 456cc | 456cc | 499cc | |
| Compression Ratio | 19.5:1 | 19.5:1 | 19.5:1 | |
| Speed | 3000rpm | 3000rpm | 3000rpm | |
| Package | Net Weight | 500kg | 500kg | 550kg |
| Package Size | Trailer base: 1350×1260×1500mm Pole:2130×240×370mm | Trailer base: 1350×1260×1500mm Pole:2130×240×370mm | Trailer base: 1350×1260×1500mm Pole:2130×240×370mm | |
